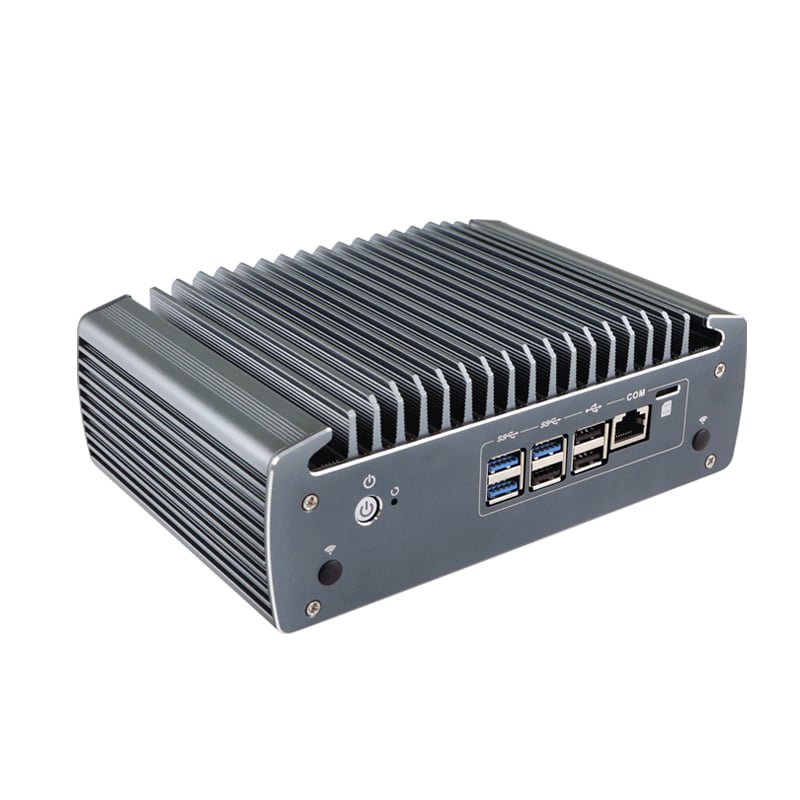

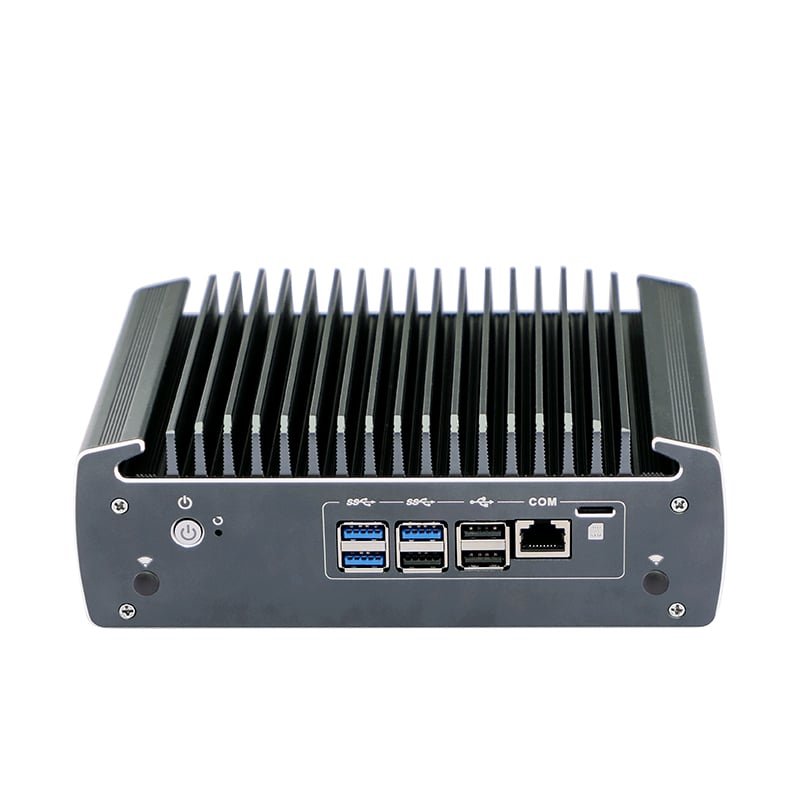

N3061 6 Port firewall appliance device

◆ All aluminum structure,Fanless design；
◆ Intel 10th Generation Core i5/i7；
◆ Support 6*Intel i226-V 2.5G(4*POE is optional)；
◆ Support 1*M.2 3052 B-key,5G modem is optional；
◆ Support 3*M.2 slots（Support WIFI and 4G or 5G）；
◆ Support 2*DDR4 RAM Slot，Max Support 64G；
◆ Support TPM 2.0 security encryption.

Nano N3061 6 Port firewall appliance device, built to run open-source software.Adopts a fanless cooling system that reduces noise and low power consumption when the device is running,equipped with Intel 10th generation Core™ processor, 6 LAN ports, allowing you to connect multiple devices and ensuring that your network is secure and protected.providing you with multiple options for connecting your display devices.

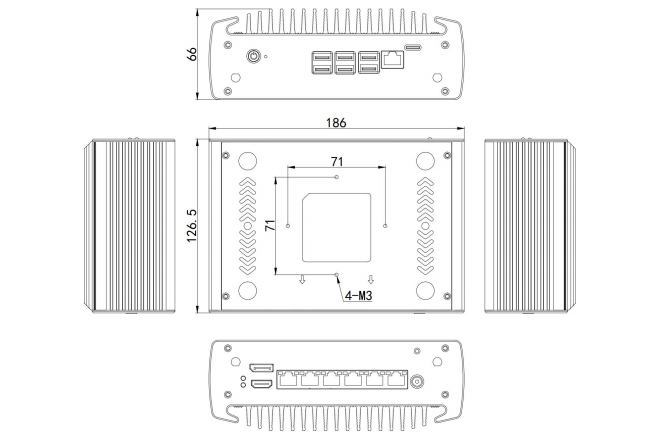

Nano N3061 Drawing

Specification

Model	Nano N3061
Color	Metal gray (Color can be customized)
Material	High-quality all aluminum,Surface anodic oxidation
Processor	Intel Core i3 10110U(Dual core,4 threads,2.1GHz,Max.Turbo 4.1GHz，TDP 15W)
	Intel Core i5 10210U(Quad core,8 threads,1.6GHz,Max.Turbo 4.2GHz,TDP 15W)
	Intel Core i7 10810U(Six core,12 threads,1.1GHz,Max.Turbo 4.9GHz,TDP 15W)
RAM	Support 2*DDR4 2666MHz SOIMM RAM slot,Max. 64GB
BIOS	AMI EFI BIOS
Display Chip	Integrated Intel UHD Graphics
Display Port	Support 1DP,1HDMI(Support synchronous/asynchronous dual display, DP interface
Display Port	resolution up to 4096*2160@60Hz)
Front I/O	Support 3USB3.0,3USB2.0,1Power Switch,1RJ45 COM(Support Console)
Rear I/O	Support 6* RJ45 1000M Lan,1DC,1DP,1*HDMI
Expansion	Support 1*M.2 2280 M-key M-Key slot(Support SATA protocol and NVME protocol)
	Support 1M.2 3052 B-Key slot(Support USB3.0 protocol,support 4G/5G) ,1 Nano-SIM
	slot on the plate
	Support 1*M.2 2230 E-Key slot(Support WIFI/Bluetooth)
	Network Support 6*intel i226-v 2.5G Lans,LAN3-6 can be 802.3af st
Storage	Support 1M.2,12.5’’SSD/HDD,support RAID 0/1
Input Voltage	Support DC 12V Input
Other Function	Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot,Watchdog（0～
Other Function	255 level）
Work Temp	0℃ ～ +50℃(Commercial HDD),-20℃ ～ +50℃（(Industrial SSD),Surface air flow
Work Humidity	0% ～ 95% non-condensing
Certificates	CE,CCC,FCC Class A,ROHS

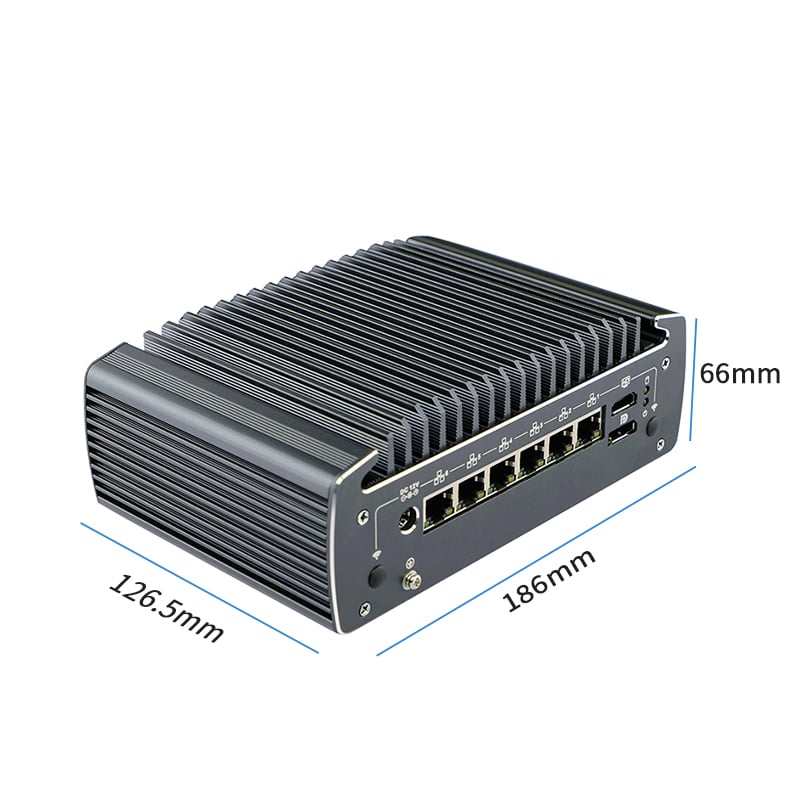

Dimension	186 * 126.5 * 66 mm
Net Weight	1.3 kg
Application	Firewall,VPN,Network server,Network security,Router etc.
