N1522 Fanless Mini PC N150

Model

Nano-N1522

Color

Metal ash (color can be customized)

Material

High quality all aluminum alloy

Processor

Intel Twin Lake N150 (4 cores 4 threads, Max 3.6 GHz)

CPU Architecture

Twin Lake

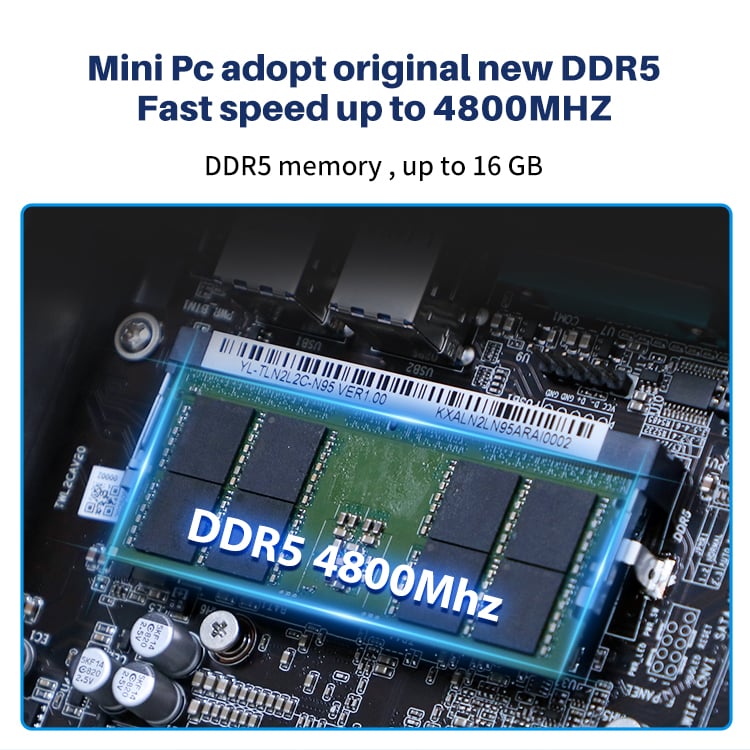

Memory

1 DDR5 4800MHz SODIMM memory slot, up to 16 GB

BIOS

AMI UEFI BIOS

Chipset

Intel Graphics

Display Port

2*HDMI HD display ports (Resolution up to 4096x2160 @ 60Hz)

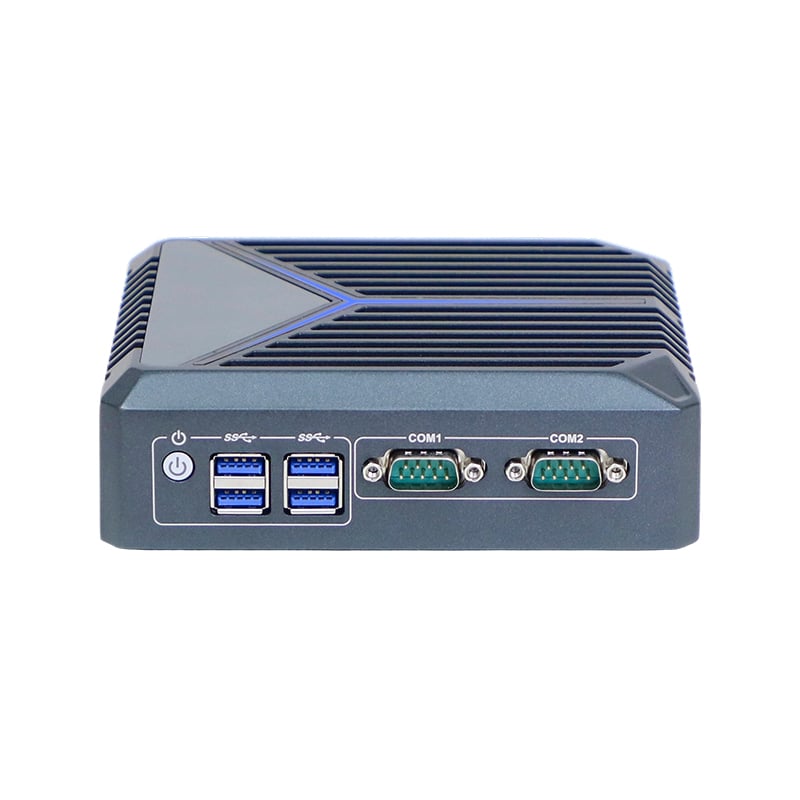

Front I/O

1*Power Switch, 4*USB3.2, 2 COM (RS232/RS485 )

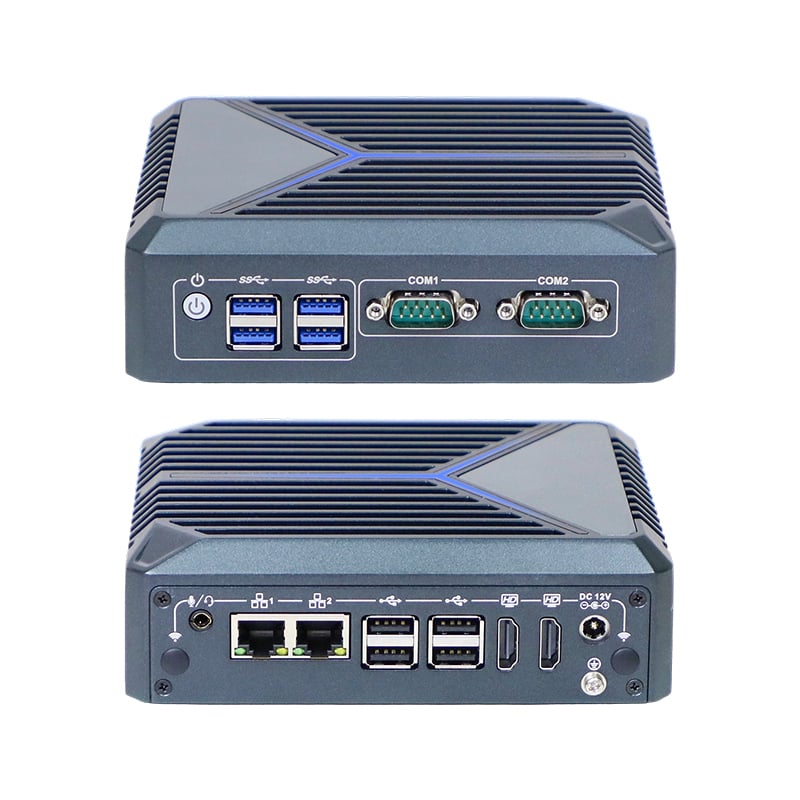

Rear I/O

1*DC , 2*HDMI , 4*USB2.0, 2*RJ45 network ports, 1*audio two-in-one port

Expansion Slot

1 M.2 2280 M-key slot 1 (PCIE3.0 X1 & SATA )

1 M.2 2280 M-key slot 2 (PCIE3.0 X1 protocol)

1 M.2 2230 E-key slot (supports CNVio2 protocol WIFI, Bluetooth)

1 MINI PCIE slot ( PCIE & USB2.0 signals, optional WIFI/4G), built-in SIM card slot

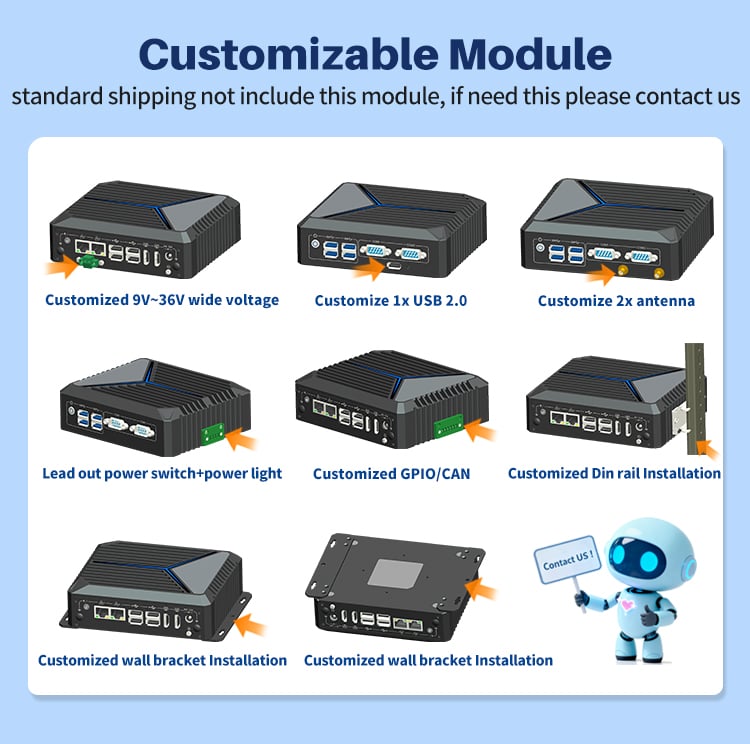

Expandable port (not included in standard shipment): 4 GPIO, 1 USB2.0

Network

2 RTL8111H 10/100/1000M Gigabit Ethernet

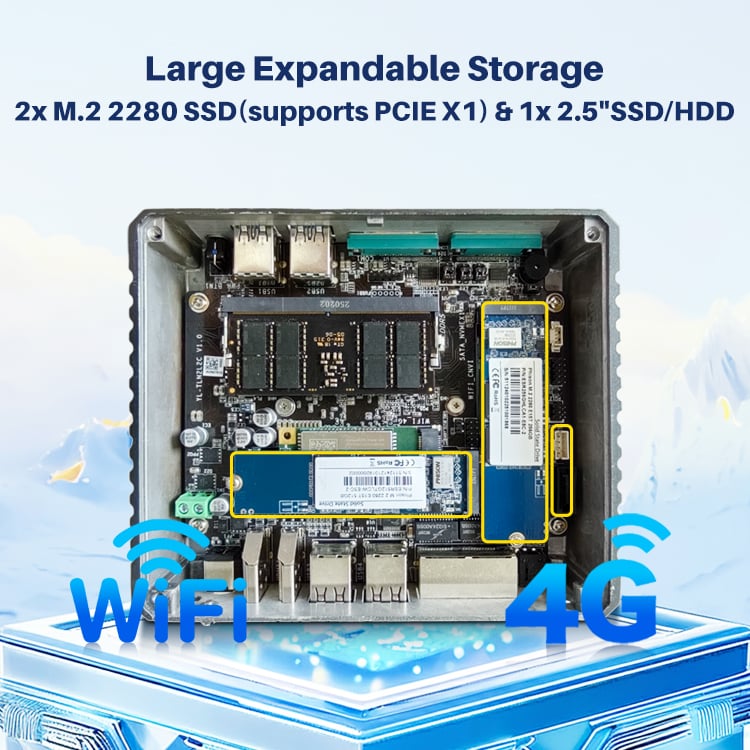

Storage

2 *M.2 2280 slots, 1*2.5 inch HDD/SSD

Power Supply

DC 12V-input

Other Function

Power on, timed power on, network wake up, PXE boot, watchdog (level 0-255), TPM2.0 security encryption

Work Temp

0℃ to +40℃ (commercial HDD), -20℃ to +50℃ (industrial SSD), surface air flow

Work Humidity

0% ~ 95% non-condensable state

Certificate

CE、 CCC、 FCC Class A、 RoHS

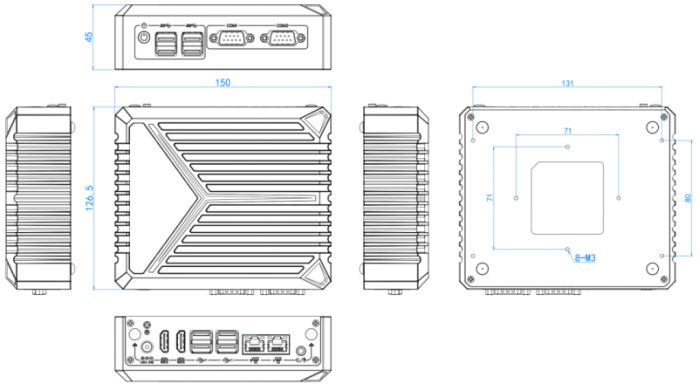

Dimension

150 * 126.5 * 45 mm

Weight

0.84 kg

Application

Industrial control, industrial automation, robotics, Internet of Things, edge computing, machine vision, AGV/AMR, etc.

 Name

 Quantity

 Specifications

Power Adapter

1

Available 12V 5A

Power Cable

1

Optional CN, US, UK, EU, etc

VESA Bracket

1

Standard

Configuration 1

Nano-N1522

Intel N150

 standard

Note: When WIFI and 4G modules are used at the same time, antenna fixing holes need to be added. If in doubt, please consult the pre-sales technician.
