◆ 12th Gen Intel Core processor 6 Lan Firewall Device;
◆ 6 Intel i225-V 2.5G, optional 4 POE;
◆ 3 M.2 slots (can support WIFI + 4G/5G at the same time);
◆ 2 DDR4 memory slots, Max 64GB;
◆ 1xDP(1.4a) , 1xHD-M-I(2.1) dual 4K HD display1;
◆ TPM 2.0 security encryption.
Specification| Model | Nano-N3161 |
| Color | Metal gray (color can be customized freely) |
| Material | High-quality all-aluminum alloy |
| Processor | Intel Core i3-1215U (Six core Eight threads, Turbo frequency 4.4 GHz,TDP 15W) |
| Intel Core i5-1235U (Ten core Twelve threads, Turbo frequency 4.4 GHz,TDP 15W) | |
| Intel Core i7-1255U (Ten core Twelve threads, Turbo frequency 4.7 GHz,TDP 15W) | |
| RAM | Support 2 DDR4 3200 MHz SODIMM Ram slots, Max 64 GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel Iris Xe Graphics |
| Display Port |
1 DP , 1 HDMI (Support synchronous/asynchronous dual display, DP interface resolution up to 4096x2160 @ 60Hz) |

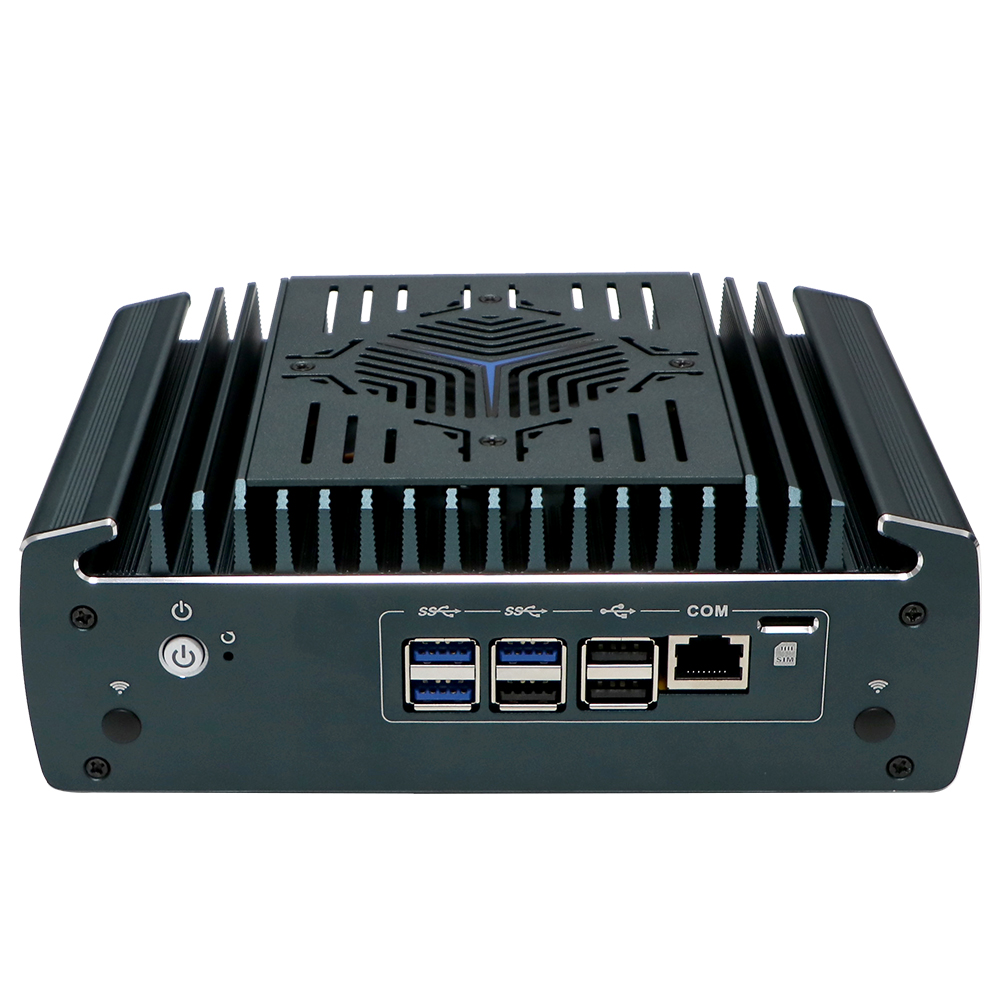

| Front I/O | 1 Power Button, 1 Restart , 3 USB3.1, 3 USB2.0, 1 RJ45 COM (support Console function) |

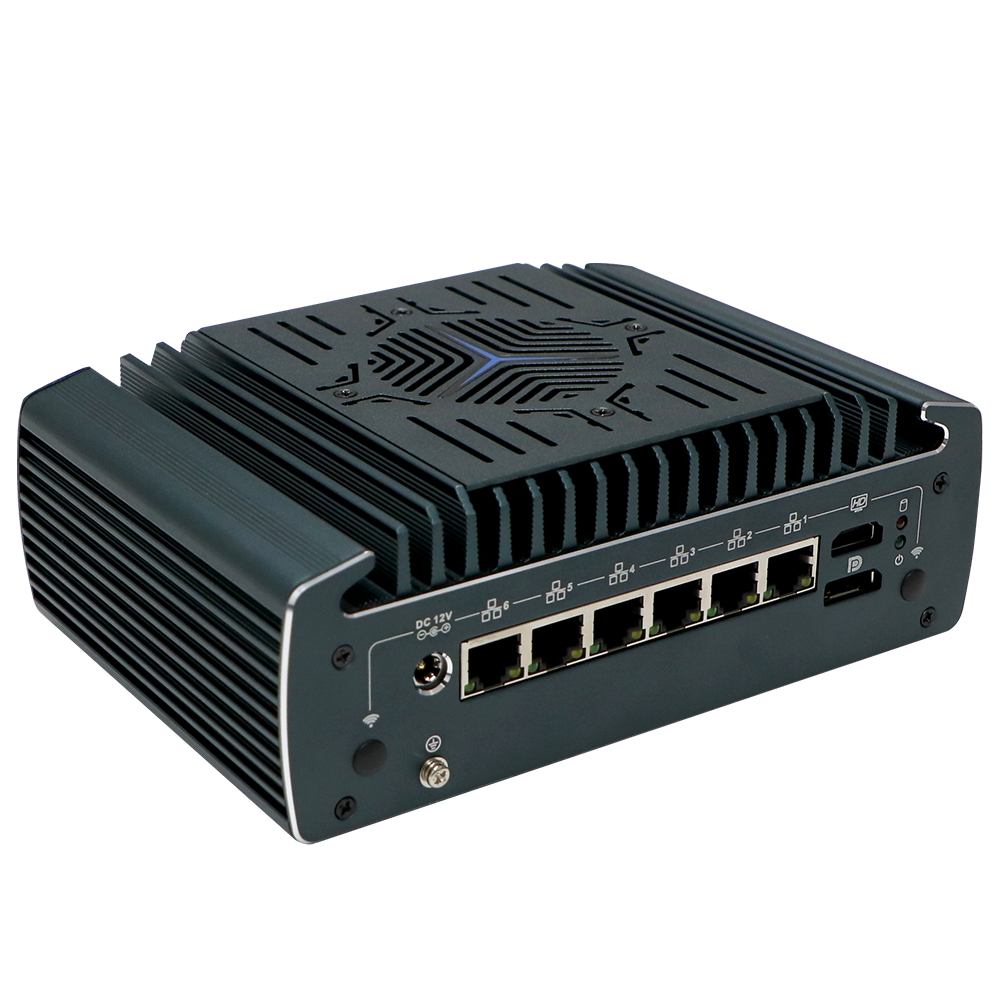

| Rear I/O | 1 DC , 6 RJ45 Lan , 1 DP(1.4a) , 1 HDMI(2.1) |
| Expansion | Support 1 M.2 2280 M-key slot (only supports NVME protocol) |
| Support 1 M.2 3052 B-key slot (USB3.0 signal, support 4G/5G), external SIM card slot | |
| Support 1 M.2 2230 E-key slot (support WIFI6, BT5.0) | |
| Network | 6 Intel i225-V 2.5G Ethernet, Lan 1-4 optional 802.3af standard POE function |
| Storage | Support 1 M.2 2280 slot, 1 2.5-inch SSD/HDD |
| Input Voltage | Support DC 12V |
| Other Function | Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot,Watchdog（0～255 level） |
| Work Temp | 0℃ ～ +50℃(Commercial HDD),-20℃ ～ +50℃（(Industrial SSD),Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |
| Certificates | CE,CCC,FCC Class A,ROHS |

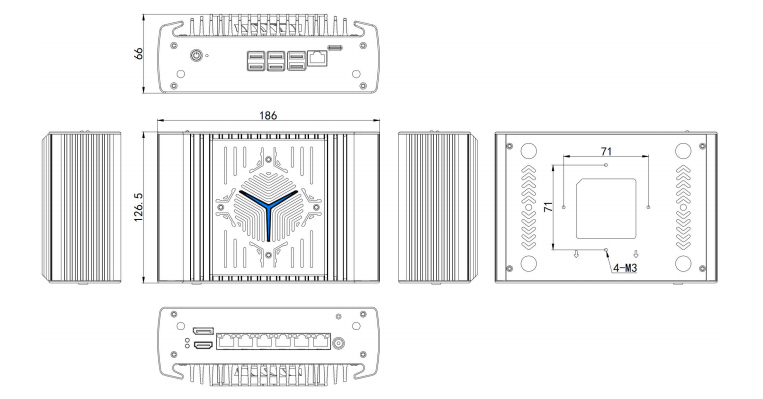

| Dimension | 186 * 126.5 * 66 mm |
| Net Weight | 1.3 kg |
| Application | Firewall,VPN,Network server,Network security,Router etc. |
