◆ Intel Skylake i3-8130U Industrial Mini Pc Fanless;
◆ 1 x DDR4 2133 MHz memory slot, Max 32 GB;
◆ 1 x M.2 2280 slot (support SATA & NVME protocols);
◆ 1 x MINI PCIE slot (optional WIFI/4G) , 1 SIM card holder;
◆ Support 4x USB3.0, 2x USB2.0, 2x COM port.
| Model | Nano N13 L2 |
| Color | Black (color can be customized freely) |
| Material | High quality all aluminum alloy |
| Processor | Intel Core i3 8130U (Dual core quad threads, Basic 2.2 GHz,Turbo 3.4 GHz) |
| Intel Core i5 7200U (Dual core quad threads, Basicc 2.5 GHz, Turbo 3.1 GHz) | |
| CPU architecture | Kaby Lake |
| Memory | Support 1 DDR4 2133 MHz SODIMM memory slot, Max 32 GB |
| Display chip | Intel HD Graphics 620 |
| Display Port | 1 HDMI , 1 DP |
| Front I/O | 4 USB 3.0, 1 power switch, 2 COM port |
| Rear I/O | 2 RJ45 Gigabit Ethernet port, 2 USB 2.0, 1 HDMI, 1 DP |
| 1*Audio (Support Mic and Speaker at the same time) , 1 DC 12V | |
| Expansion Slot | Support 1 M.2 2280 slot (support SATA and NVME protocols) |
| Support 1 MINI PCIE slot (optional WIFI/4G) , 1 SIM card holder | |
| Network | 2 RTL8111H 100/1000M Ethernet |
| Storage | 1 M.2 2280 slot, 1 2.5-inch HDD |
| Input voltage | DC 12V input |
| Other function | Power on,Timing boot,Wake on LAN,PXE boot,Watchdog (level 0-255) |
| Working Temp | 0 ℃~+50 ℃ (commercial HDD), -20 ℃~+50 ℃ (industrial SSD), surface air flow |
| Working Humi | 5% to 95% non-condensing |
| Certification | CE, CCC, FCC Class A, RoHS |

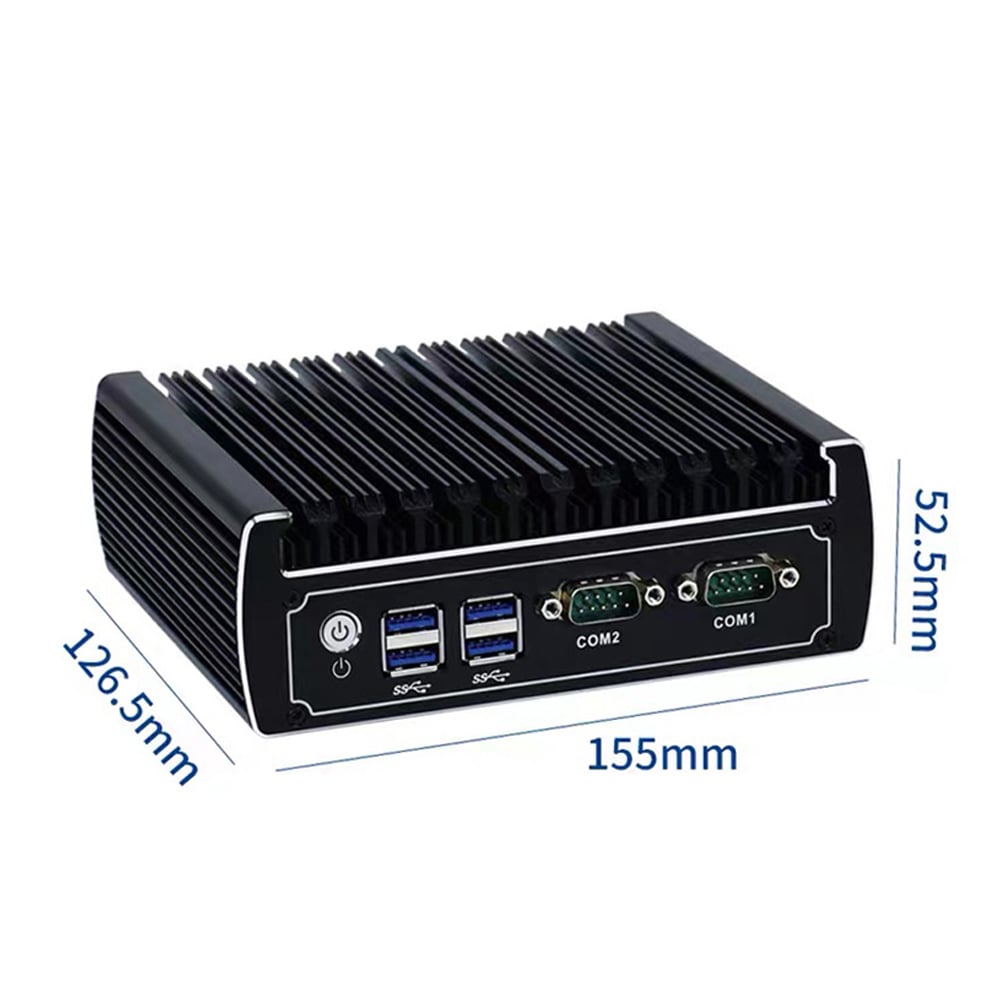

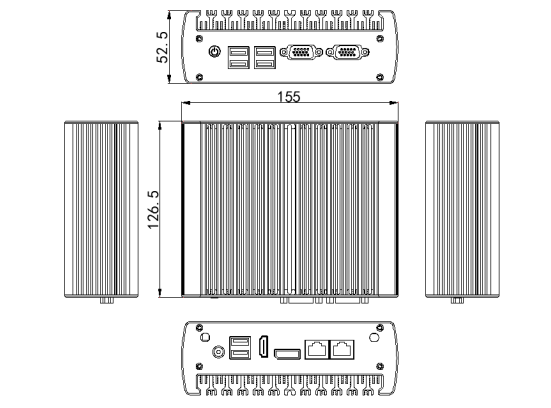

| Dimension | 155 * 126.5 * 52.5mm |
| Weight | 1.0 kg |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic |
| Education etc. |
