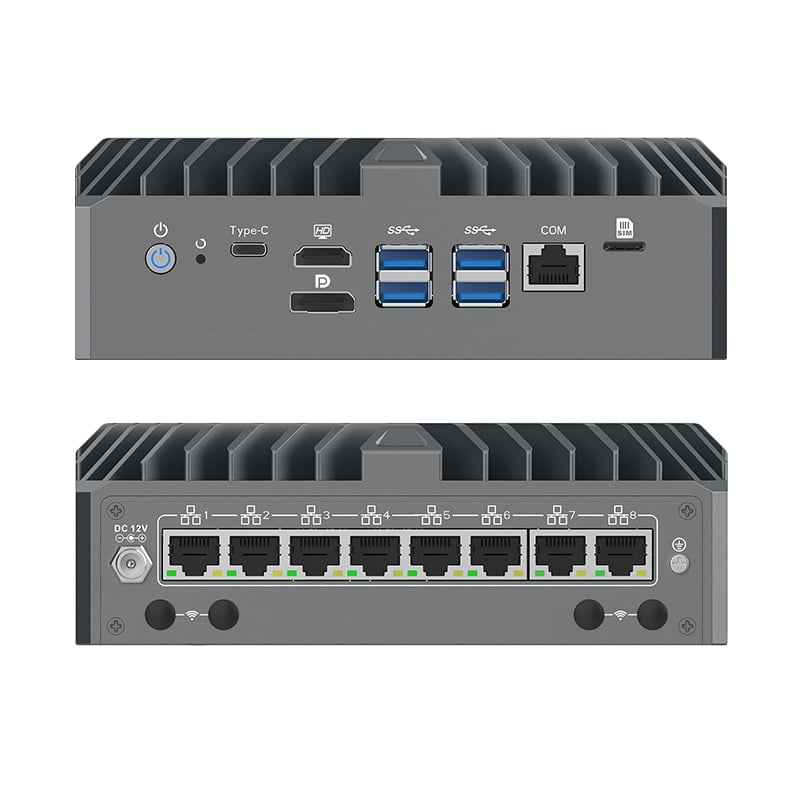

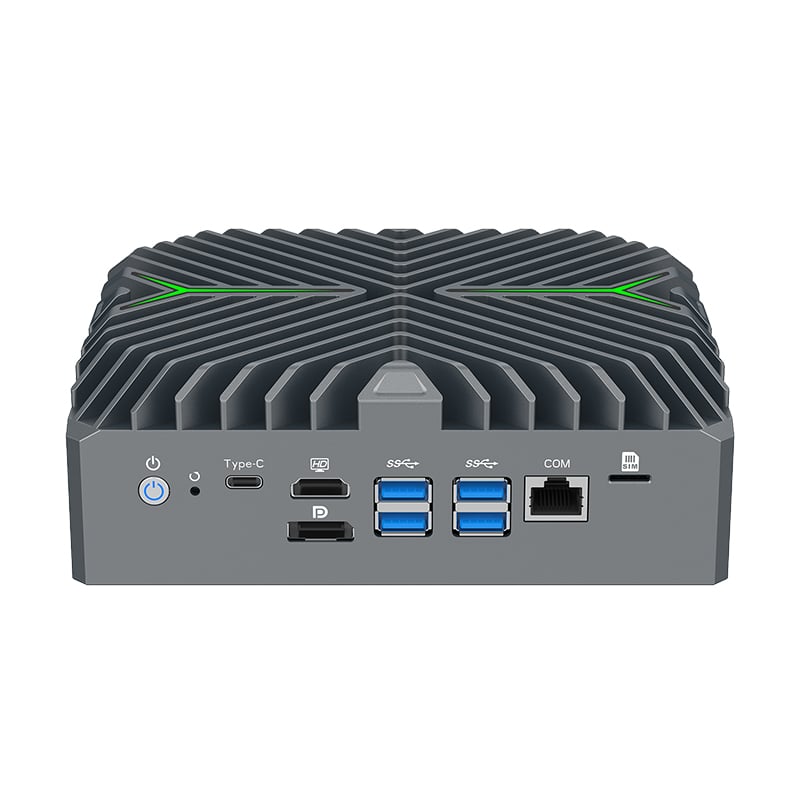

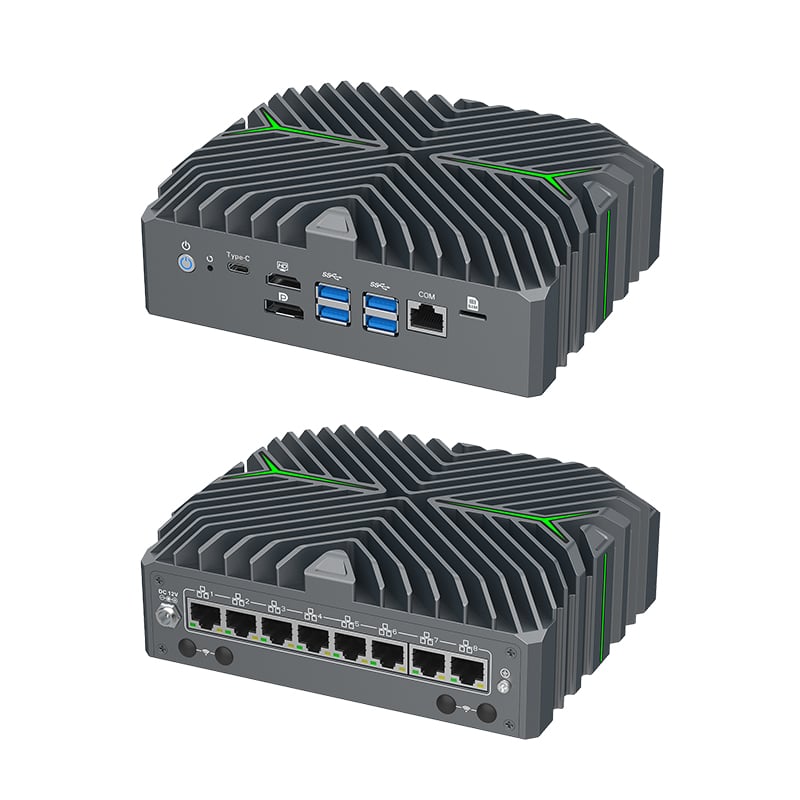

N3281 8 Lan Firewall Mini PC

◆ 14th Gen Core Ultra processor mini firewall pc

◆ 8 Intel 2.5G Lan (1 Intel i226-LM supports vPro, 7 Intel i226-V)

◆ 1 HD-M-I+1 DP+1 Type-C , triple display

◆ Support M.2 (NVME)+2.5-inch HDD/SSD+WIFI+4G

◆ Fanless Version and Fan Version optional

The N3281 is a mini firewall pc with 8 network ports, equipped with the new Intel 14th generation Core Ultra5 125U and Ultra7 155U high-performance processors, giving you an AI core. The computing core uses the new Intel 4 process to greatly improve the energy efficiency. Equipped with NPU AI accelerator, it has lower power consumption and longer battery life. One chip leads a new era of mobile computing.

The new Intel® Graphics graphics card adopts the Xe LPG architecture; the performance-power ratio is improved by about 2 times, supports DX12 Ultimate, supports hardware ray tracing and mesh shading technology, and also supports advanced media engine, DP4A engine, Xe super sampling, higher performance, lower power consumption, and seeks new breakthroughs in innovation and AI.

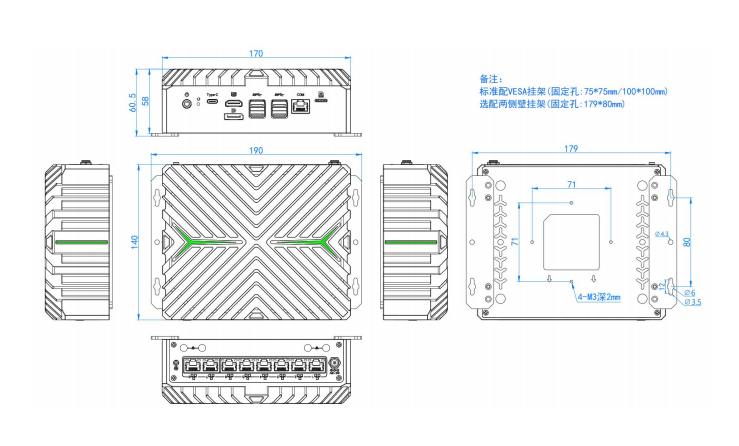

N3281 Drawing

Specification

Model	Nano-N3281
Color	Metal gray (color can be customized freely)
Material	Aviation grade aluminum alloy
Processor	Onboard Intel Core Ultra 5 125U (12 core 14 threads, Max Turbo 4.3 GHz, 15W )
Processor	Onboard Intel Core Ultra 7 155U (12 core 14 threads, Max Turbo 4.8 GHz , 15W)
NPU	Intel AI Boost (Max Frequency 1.4GHz
RAM	2*DDR5 5600 SODIMM memory slot, Max 64 GB
BIOS	AMI EFI BIOS
Display Chip	Intel® Graphics
Display Port	1 HDMI,1 DP, 1 Type-C, Resolution up to 4096x2160 @ 60Hz
Front I/O	1 Power Button,1 Reset,1 Type-C (support DP/USB 3.2/PD 5V1A),
Front I/O	1 HD-M-I, 1 DP, 4 USB 3.2, 1 RJ45 COM (suppor Console),1 SIM Card Slot
Rear I/O	1 DC , 8 Intel 2.5G Lan (1 Intel i226-LM support vPro, 7 Intel i226-V)
Expansion Slot	Support 1*M.2 2280 M-Key slot (NVME protocol, PCIE4.0 x4)
	Support 1*M.2 2230 E-key slot (PCIe&USB /CNVio2 )
	Support 1*M.2 3052 (2242) B-key slot (USB 3.0 signal, supports 4G/5G), external SIM card slot
	Expandable interface (not included in standard shipment)： 2 USB 2.0, 4*Pin GPIO
Network	7*Intel i226-V 100/1000/2500M Ethernet
Network	1*Intel i226-LM 100/1000/2500M Ethernet, support Intel vPro (LAN1)
Storage	Support1M.2 2280 slot , 12.5-inch HDD/SSD
Input Voltage	DC 12V input
Other Function	Power On, Timed Power On, Network Wake-Up, PXE, Watchdog (0-255 Levels), TPM 2.0 Secure Encryption
Work Temp	0 ℃ - +40 ℃ (commercial HDD), -20 ℃ - +50 ℃ (industrial SSD), surface air flow
Work Humidity	5% - 95% non condensing state
Certificates	CE、 CCC、 FCC Class A、 RoHS
Dimension	170 * 140 * 58 mm
Net Weight	1.36 kg
Application	Firewall, VPN, Network Server, Network Security, Router, and etc.
