◆ All aluminum alloy structure, Fanless design;
◆ Intel Celeron J6412 Quad Core；
◆ DDR4 SODIMM slot，Max: 32G；
◆ 3*Intel i226-V 2.5G Lan
◆ 2*M.2 slots for 4G/5G；
◆ 1*Mini PCIE slot；
◆ 6*COM (COM1 and 2,RS232/485 optional).
| Module | IBOX-1226 |
| Color | Dark grey (color can be customized) |
| Material | High-quality all aluminum, surface hard anodized |
| Processor | Onboard Intel Celeron J6412 (quad core, four threads, 2.0GHz,Max to 2.6GHz) |
| Memory | Support 1*DDR4 3200MT/s SODIMM, Max 32 GB |
| BIOS | AMI UEFI BIOS |
| Display Chip | Integrated Intel HD Graphics |
| Display Port | 1*HDMI, 1*DP (Support Synchronous/asynchronous display) |

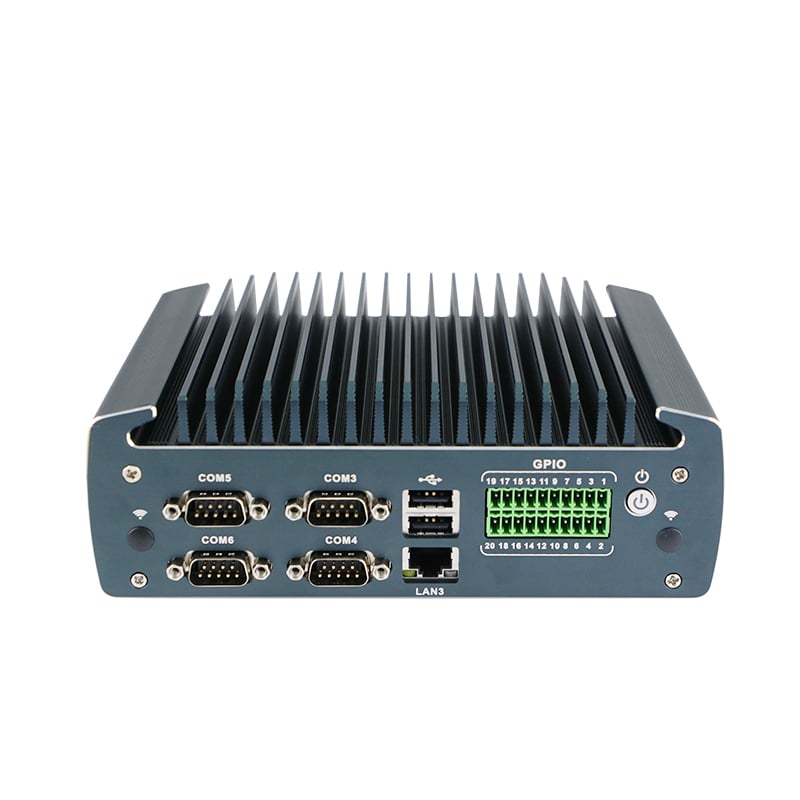

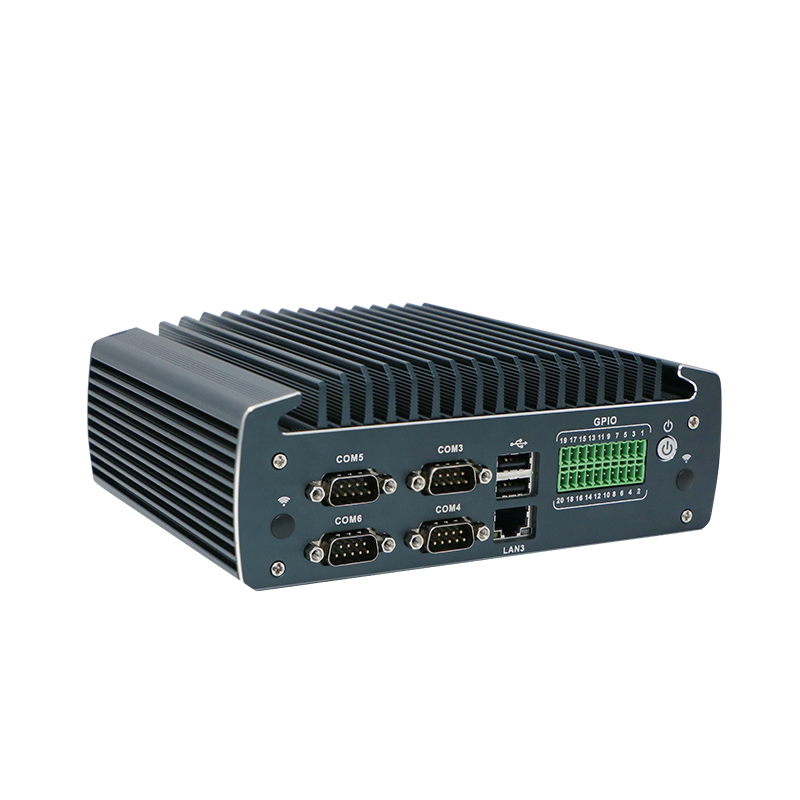

| Front I/O | 4*COM, 2* USB2.0, 1*Intel 2.5G Lan, 18 bits GPIO Phoenix, 1*Power switch |

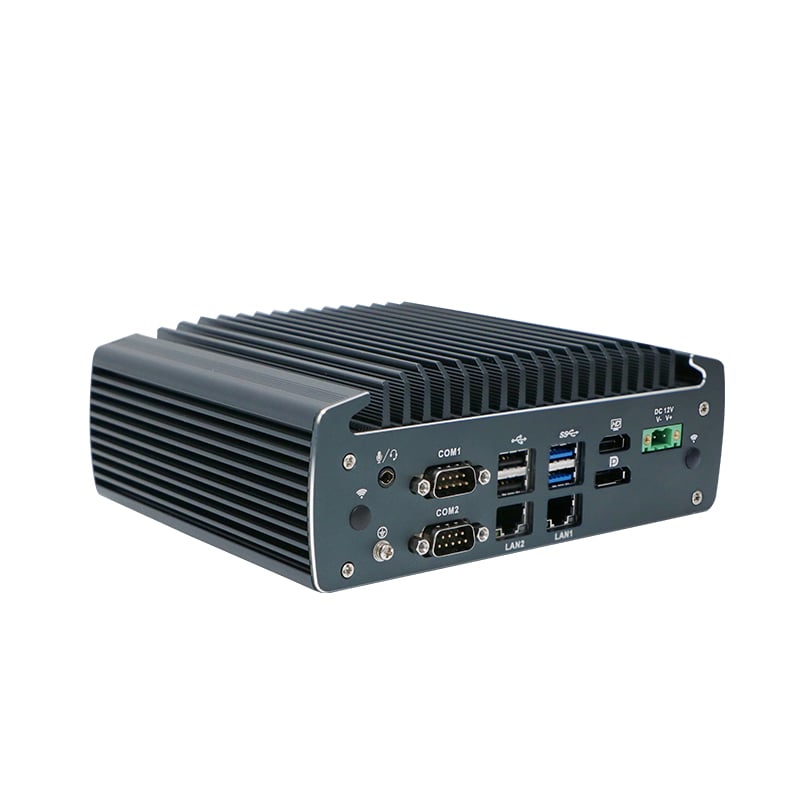

| Rear I/O | 2*COM (COM1 and 2, RS232/485 optional) 2*USB2.0, 2*USB3.0, 2*Intel 2.5G Lan |
| 1*HDMI, 1*DP, 1* 2Pin Phoenix, 1*Audio with Mic and Speaker | |
| Expansion Slot | 1*M.2 M-key slot 2280, SATA protocol |
| 1*M.2 B-key slot 3042/3052 (for 4G/5G module) with SIM slot; | |
| 1*MINI PCIE slot (for WIFI&BT) | |
| 2*USB2.0 (Extensible ports, standard does not include) | |
| Network | 3*Intel i226-V 2.5G Lan |
| Storage | 1*M.2 slot (SATA protocol) , 1*2.5” SSD/HDD |
| Power Supply | DC 12V in put (DC 9-36V Optional ) |
| Other functions | Auto Power-on, Timed power-on, network wake-up, PXE boot, watchdog (level 0-255), |
| TPM2.0 security encryption | |
| Work Temp | 0℃ - +50℃ (Commercial HDD), -20℃ to -60℃ (Industrial SSD), Surface air flow |
| Work Humidity | 5% -95% non-condensing |
| Certificates | CE, CCC, FCC Class A, RoHS |

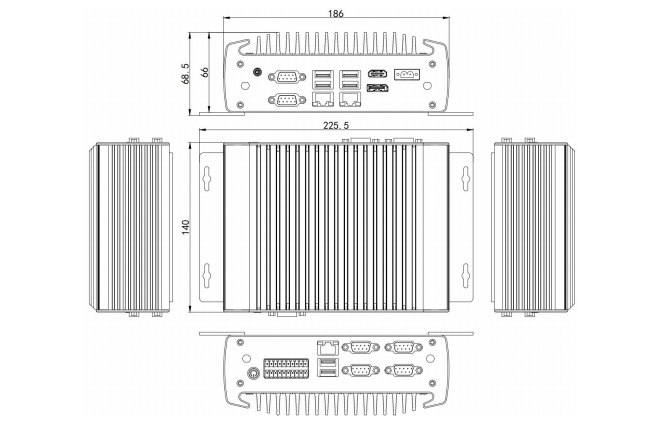

| Size | 186 * 140 * 66 mm |
| Weight | 1.5 kg |
| Application | Industrial automation, Medical, Transportation, Warehousing, E-education etc. |
