Introduction

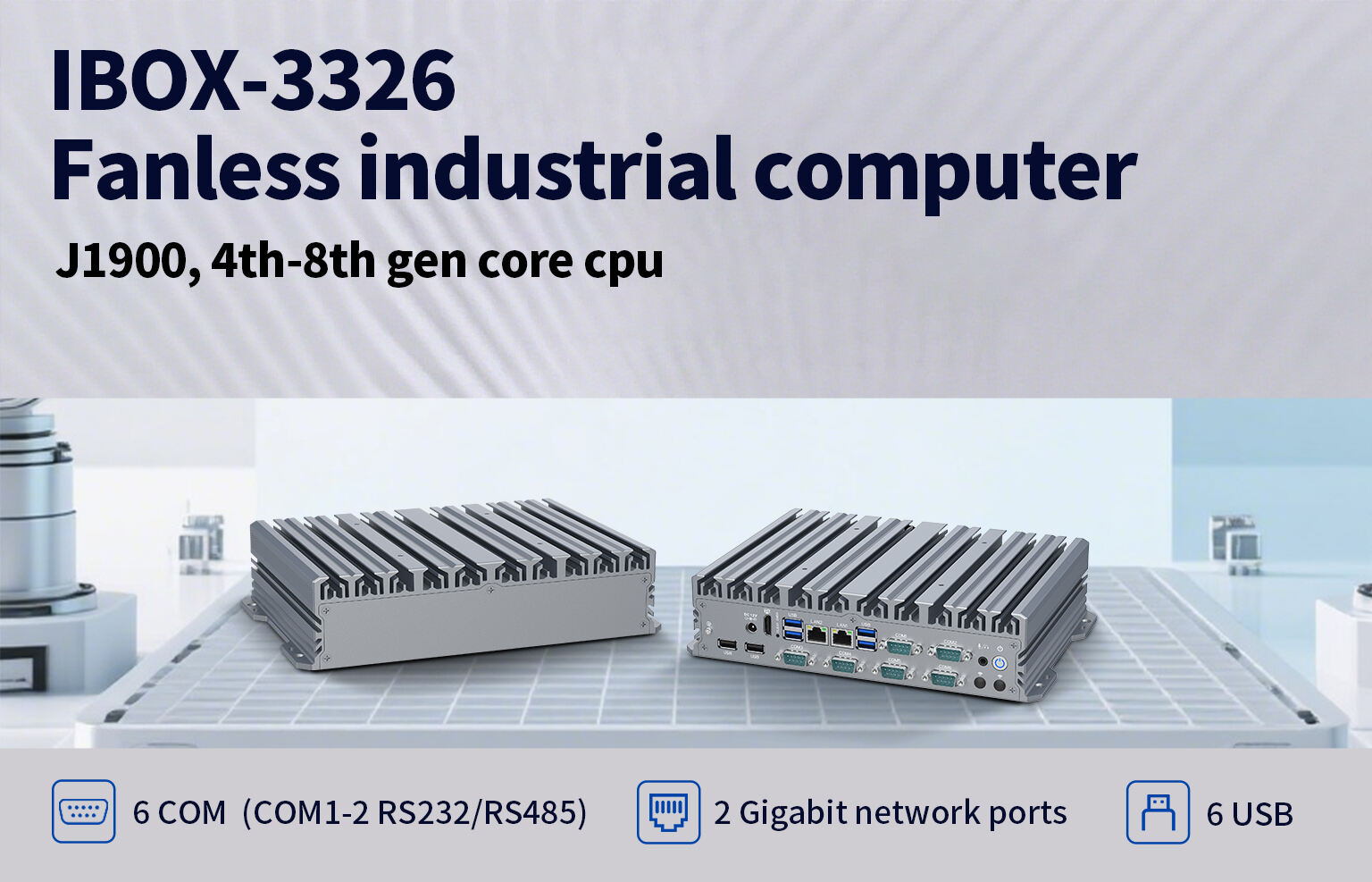

Modern highway infrastructure demands efficient and uninterrupted traffic flow. This case study explores how the IBOX-3326 Rugged Industrial Box PC serves as the core processing unit in Electronic Toll Collection (ETC) systems, enabling seamless vehicle processing while maintaining robust operation in demanding outdoor environments.
 |
The Challenge
Traditional toll collection systems face significant limitations:
Inability to process high-speed vehicles without causing traffic bottlenecks
Limited connectivity options for integrating multiple peripheral devices
Vulnerability to extreme weather conditions and continuous 24/7 operation requirements
Difficulty in maintaining system stability across varying temperature conditions
Robust ETC Lane Solution
The IBOX-3326 Industrial Box PC integrates multiple tolling functions into a unified system, including RFID reading, vehicle detection, image capture, and fare display management. This comprehensive solution processes vehicle information in real-time, controls barrier mechanisms, and completes transactions while ensuring reliable data transmission to central management systems.
Key Features Utilized:
Wide CPU Support Range: Flexible processing power from Celeron to 4th-8th Gen Intel Core processors handles varying computational demands
Extensive Connectivity (6x COM Ports): Enables simultaneous connection to RFID readers, vehicle detectors, cameras, and display systems
Dual Gigabit LAN & Wireless Options: Ensures continuous data communication through both wired and cellular networks
Legacy OS Compatibility: Supports Windows XP through Windows 11 and Linux for easy system migration and deployment
Rugged Fanless Design: Withstands temperature variations, vibration, and continuous operation in uncontrolled environments
System Workflow
Vehicle Detection: Sensors identify approaching vehicles in the ETC lane
RFID Identification: The system reads transponder data for account identification
Image Capture: High-speed cameras capture license plate images for verification
Transaction Processing: IBOX-3326 verifies account status and calculates toll amount
Access Control: System triggers barrier operation based on transaction results
Data Synchronization: Transaction records are transmitted to central servers in real-time
Value Delivered
Uninterrupted Traffic Flow: Enables vehicles to pass through toll points without stopping
Enhanced Operational Efficiency: Processes multiple vehicles simultaneously while reducing manual intervention
All-Weather Reliability: Rugged construction ensures consistent performance in extreme environmental conditions
Future-Proof Architecture: Flexible expansion capabilities support evolving tolling technologies
Reduced Congestion: Minimizes traffic bottlenecks at highway entry and exit points
Conclusion
The IBOX-3326 Rugged Industrial Box PC provides the perfect foundation for modern electronic toll collection systems. By combining extensive connectivity options with industrial-grade durability, it delivers the reliability and performance required for critical highway infrastructure applications, ensuring smooth traffic flow while maintaining accurate transaction processing.
