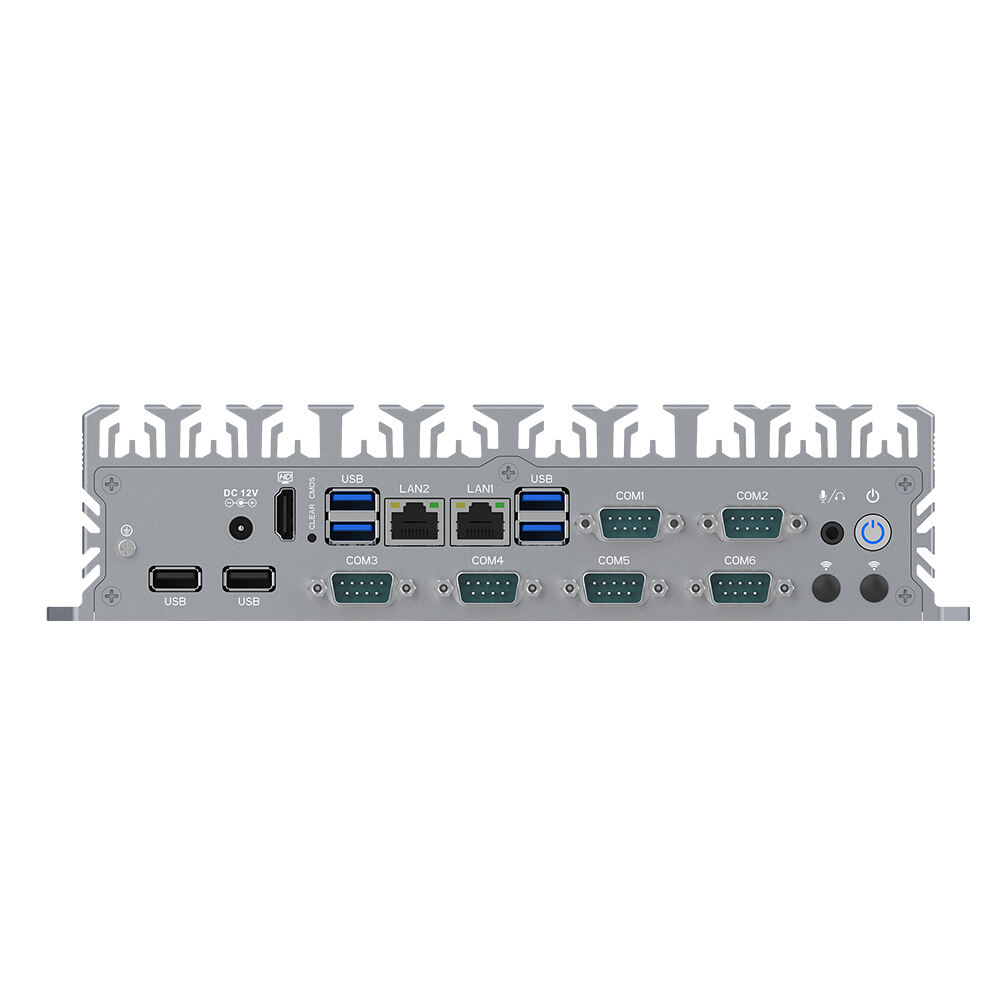

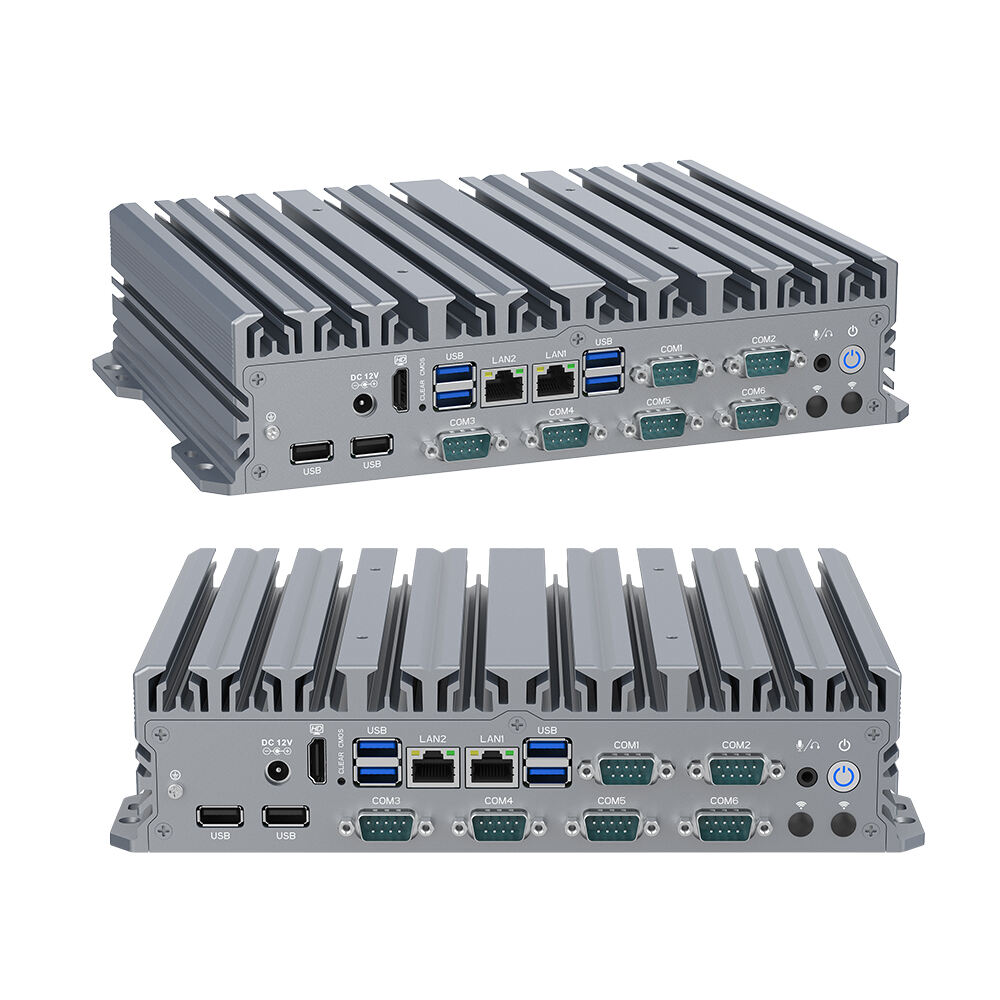

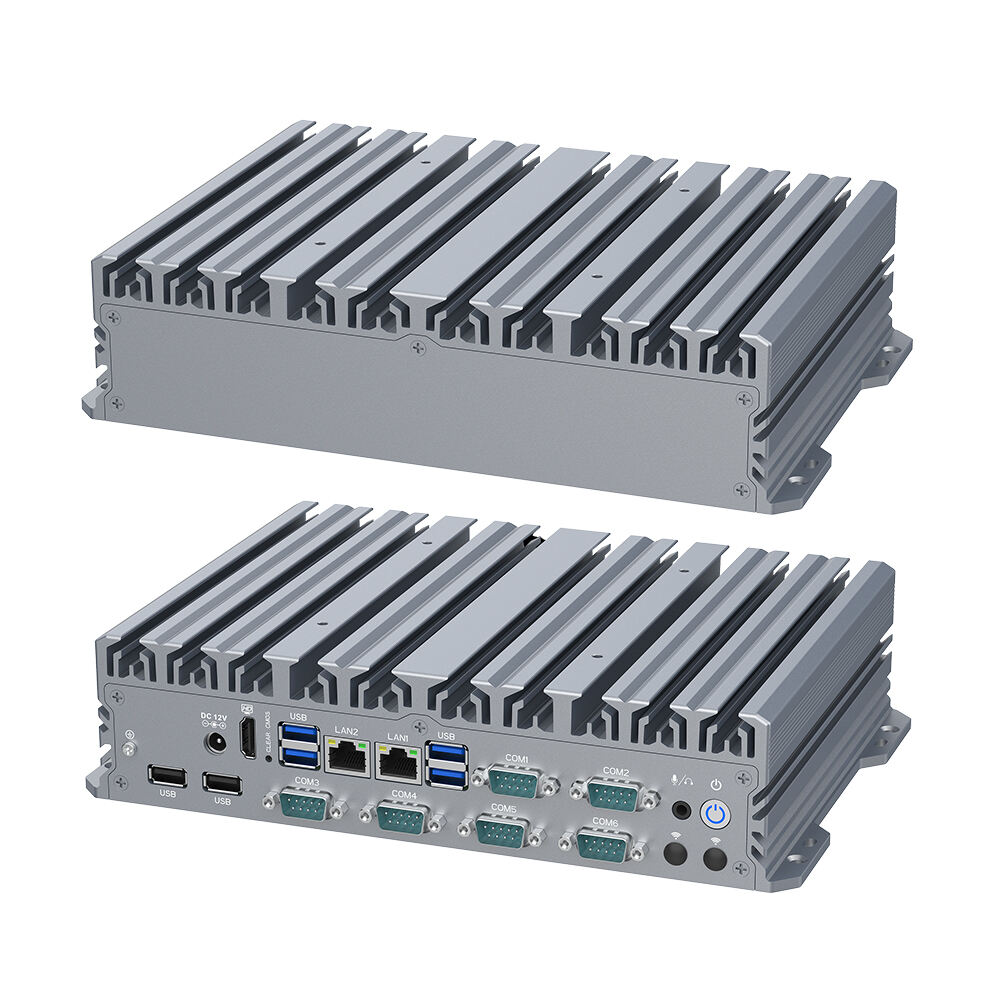

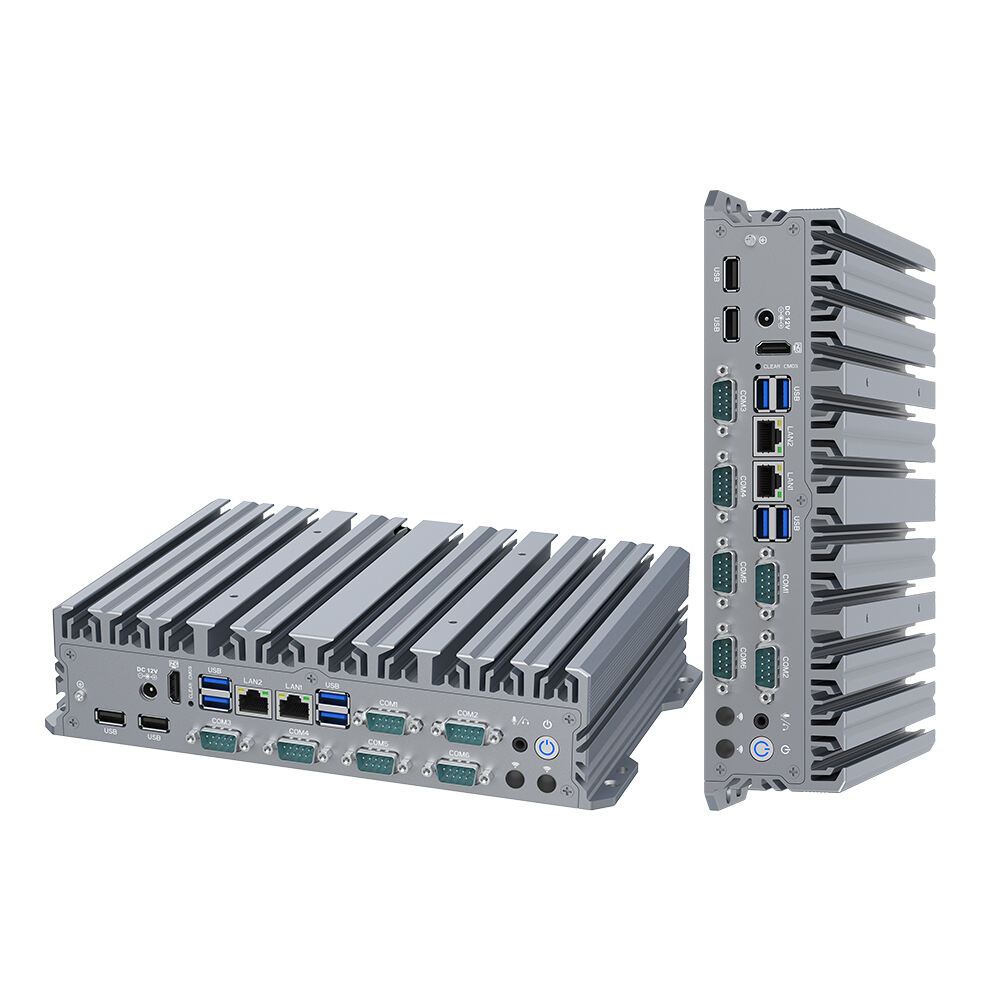

IBOX-3326 Rugged Industrial Box PC

◆ ide CPU Support from Celeron to 4th-8th Gen Intel Core Industrial Box PC;

◆ Extensive 6x COM Ports with RS232/RS485 for Industrial Devices;

◆ Dual Gigabit LAN & Flexible 3G/4G/WiFi Expansion;

◆ Legacy OS Compatible, Ready for Windows XP ，Win7/10/11 Linux;

◆ Rugged Design for Demanding 24/7 Industrial Applications;

The IBOX-3326 is a highly versatile and rugged Industrial Box PC engineered for reliability in the most demanding automation and networking environments. Built to serve as the backbone of your industrial IoT edge, it offers exceptional configuration flexibility with support for a wide range of Intel processors, from the efficient Celeron J1900 to powerful 4th through 8th Generation Intel Core processors. This allows you to precisely tailor computing performance to your application's needs, whether for basic machine control or complex data acquisition.
The IBOX-3326 delivers a dependable, all-in-one computing solution for a wide spectrum of industrial applications, including Factory Automation, Embedded Vision, Power Monitoring, and Digital Signage, providing the durability and connectivity required for 24/7 operation.

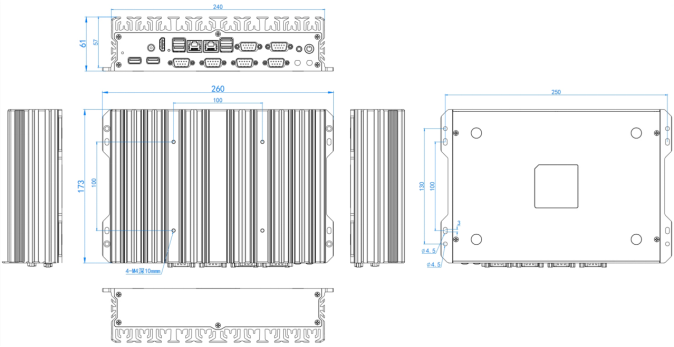

IBOX-3326 Drawing

Specification

Model	IBOX-3326
Color	Gray (color can be customized)
Material	High quality aluminum alloy
Processor	Intel Celeron J1900
	4^th /5^th gen Intel Core i5/i7 (specific model subject to shipment)
	6^th /7^th /8^th gen Intel Core i3/i5/i7 (specific model is subject to shipment)
Memory	DDR3/DDR4 laptop memory slots Max.32GB,the order information at the end of this page for details
BIOS	AMI EFI BIOS
Display chip	Intel UHD Graphics
Display Port	1*HDMI
Storage	1MSATA,1SATA 2.5 inch hard disk
Expansion slot	2Mini PCIE (1support WIFI/Bluetooth/3G/4G with SIM card holder, the other support wifi)
I/O port	1DC power supply , 1HDMI , 4USB3.0, 2USB2.0 (J1900: 1USB3.0 , 5USB2.0)
	6COM (COM1-2 RS232/485),1Audio two-in-one , 1*power button
	2* Realtek Gigabit network ports, support Wake on LAN /PXE, 1* CLEAR CMOS button
Expansion Port	Standard shipments have not this port, customization: GPIO (4-in-4-out)
Network	2* RTL8111H 10M/100M/1000M Gigabit network ports
Input Voltage	DC 12V input, customizable DC 9~36V wide voltage input
Other functions	Auto power on、Timing boot、Wake on LAN、PXE boot、watchdog (level 0~255)
Work Temperature	0℃ ~ +50℃ (hard disk), -20℃ ~ +60℃ (solid state drive), surface air flow
Work humidity	5% ~ 95% non-condensable state
Certificate	CE、 CCC、 FCC Class A、 RoHS
Dimension	260 * 173 * 61 mm
Weight	2.5 kg
Installation	Wall-mounted, Desktop
Certificate	CE、 CCC、 FCC Class A、 RoHS
Application	Industrial automation, medical, Logistics & Transportation, Warehouse , Machine Vision ,etc.

packing list

Name	Quantity	Specifications
Power Adapter	1	Optional 12V 5A/7.5A
Power Cable	1	Optional CN, US, EU plug,etc.
Wall screws	4	Standard

Optional information

Configure	Processor	Standard I/O Port	Internal expansion	remarks
Configuration 1	Intel Celeron J1900	LAN2/USB6/COM6/ HDMI1/ DC-IN1/Audio1	1DDR3/8G Max/1m SATA/12.5” HDD/2mini_PCIE wifi/(3G/4G)	Please consult our sales staff for details
Configuration 2	3th Gen Intel Core i3/i5	LAN2/USB6/COM6/ HDMI1/DC-IN1/Audio1	1DDR3/8G Max/1m SATA/12.5” HDD/2mini_PCIE wifi/(3G/4G)
Configuration 3	4/5^th Gen Intel Core i5/i7	LAN2/USB6/COM6/ HDMI1/ DC-IN1/Audio1	2DDR3/16G Max/1m SATA/12.5” HDD/2mini_PCIE wifi/(3G/4G)
Configuration 4	6/7^thGen Intel Core i3/i5/i7	LAN2/USB6/COM6/ HDMI1/ DC-IN1/Audio1	2DDR4/32G Max/1m SATA/12.5” HDD/2mini_PCIE wifi/(3G/4G)
