The A600 is a robust industrial tablet designed to meet the demanding needs of commercial and industrial environments. Featuring a high-performance aluminum alloy chassis in a sleek titanium gray finish (customizable), the device combines power and durability for a wide range of applications. It offers a selection of onboard processors, from the Intel Celeron J6412 to the Intel Core i7-8565U, ensuring efficient processing and multitasking capabilities with options for dual to quad-core performance and high-speed turbo boosts.

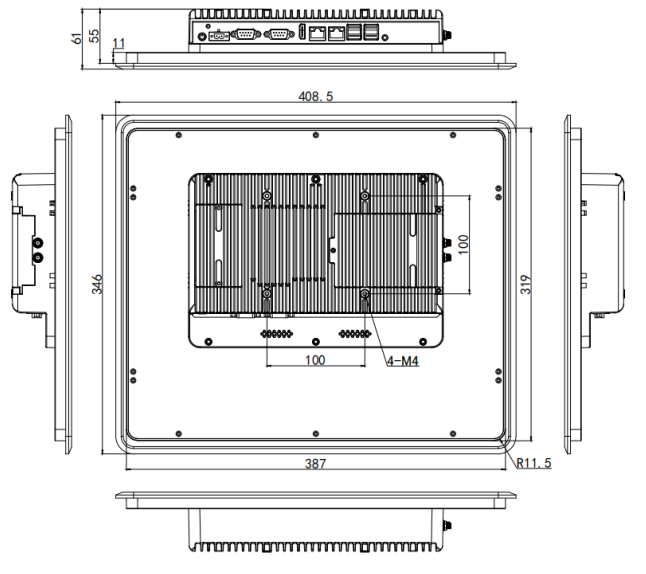

ITPC-A600 Drawing
Specification
| Model | ITPC-A600 |
| Color | Titanium gray (Color can be customized) |
| Material | Aluminum alloy chassis |
| Processor | Onboard Intel Celeron J6412 (Quad core quad threads, 2.0GHz, Max turbo 2.6GHz) |
| Onboard Intel Celeron 4205U (Dual core dual threads, 1.8Ghz, 2MB Cache) | |
| Onboard Intel Core i3-10110U (Dual core 4 threads, 2.1G, Max. Turbo 4.1G, 4MB Cache) | |
| Onboard Intel Core i5-8260U (Quad core eight threads, 1.6Ghz, Max turbo 3.9Ghz, 6MB Cache) | |
| Onboard Intel Core i7-8565U (Quad core eight threads, 1.8Ghz, Max turbo 4.6Ghz, 8MB Cache) | |
| RAM | Support 1*DDR4 2133/2400 SODIMM Memory Slot, Max. Support 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Integrated Intel UHD Graphics |
| Display Port | 1*HDMI, 1*LVDS(Support synchronous and asynchronous dual display) |
| Storage | Onboard 1*M.2 2280 slot(SATA Protocol), 1*2.5” HDD, Support RAID 0/1 |
| Expansion Slot | Support 1*Mini PCIE slot(Support WIFI/Bluetooth/3G/4G Optional, embedded SIM slot) |
| I/O | 1*HDMI, 2*COM(COM1&COM2 support RS232/RS422/RS485, 6*COM Optional), 1*Power Switch |
| 1*2Pin power supply phoenix connector, 1*Speaker&Mic, 4*USB3.0, 2*Intel 1000M LAN (4*LAN Optional) | |
| Other Function | TPM2.0 security encryption, Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog(0～255 level)(Standard version doesn’t set these function) |
| Expansion otions | GPIO(8 Input 8 Output), 2*LAN, 4*COM, 2*USB2.0 (Standard version doesn’t include these ports) |
| LCD | Size:17 inch TFT-LCD, Brightness: 250 cd/m2 , Viewing Angle:Full Angle |
| Ratio:4:3, Resolution:1280x1024 | |
| Touch Screen | Industrial grade multi-touch resistance touch screen, Life Time: more than 50000 Thousand Times |
| Speaker | Two 8-ohm 2-watt speakers |
| Input Voltage | DC 9V~36V wide voltage Input, support positive and negative electrode protection |
| Work Temp | 0℃ ~ +50℃(Commercial), -20℃ ～ +60℃(Industrial SSD), Surface air flow |
| Work Humidity | 5% ~ 95% non-condensing |
| Dimension | 408.5 * 346 * 61 mm |
| Embedded | 389 * 321mm |
| Weight | 4.7 kg |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehousing, Machine Vision, etc |
