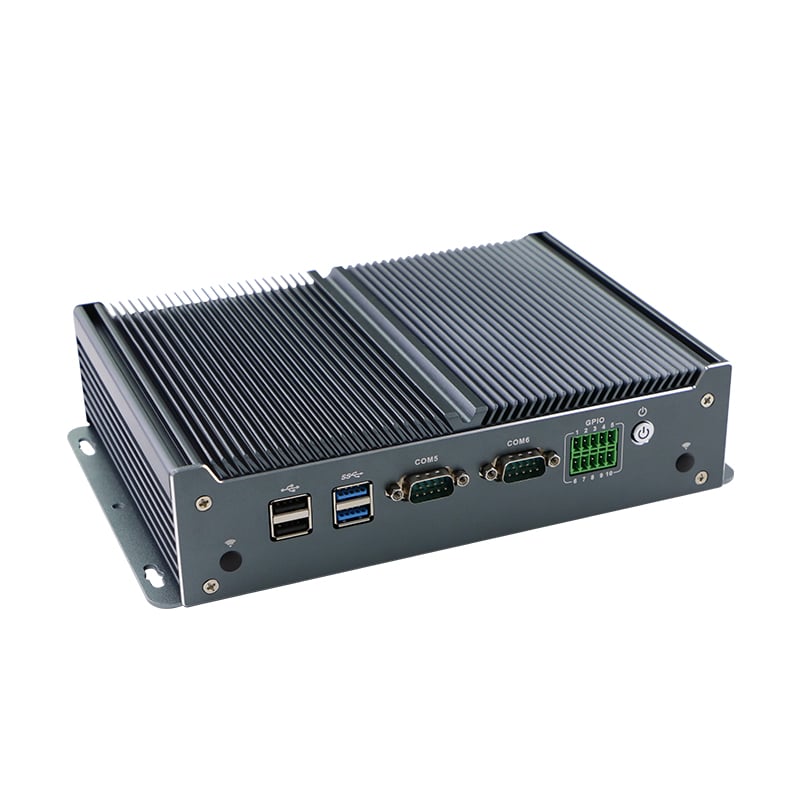

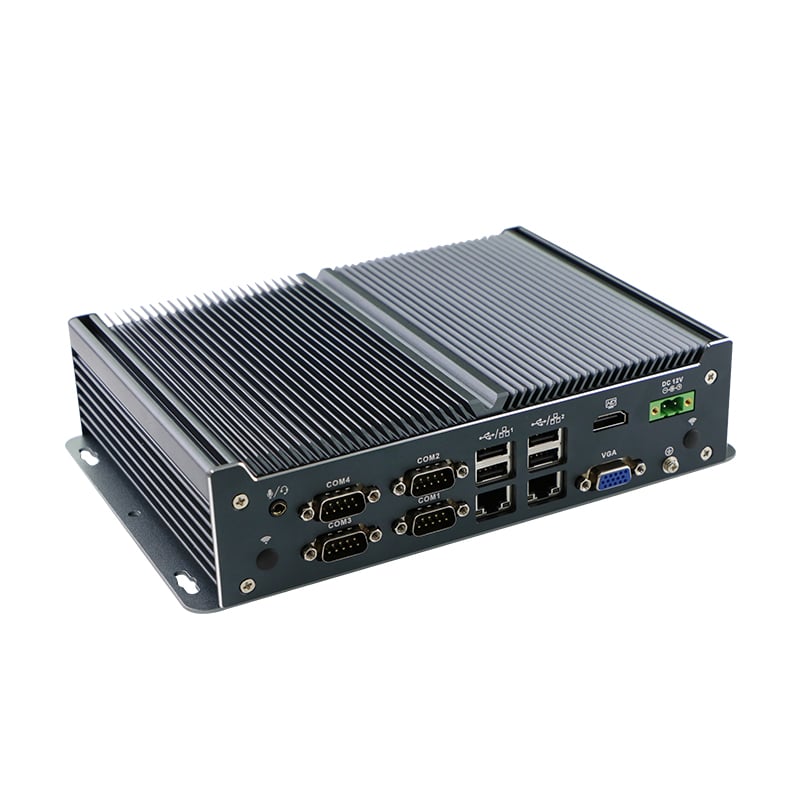

IBOX-1126 Industrial Embedded Computer

◆ Intel Celeron J1900 Industrial Embedded Computer

◆ 1x DDR3L 1333/1600 Ram,Max 8 GB

◆ 1 x VGA,1xHD dual display

◆ 1 x GPIO(4 Input 4 Output)

◆ 2 x Intel i211-AT gigabit Ethernet LAN

◆ 1xMINI PCIE slot(WIFI/3G/4G,choose one of them)

This IBOX-1126 Industrial Embedded Computer designed to withstand harsh environments like extreme ,it provides high reliability and high performance industrial fanless embedded PCs , powered by intel Intel Celeron J1900 Quad core,1.99Ghz,rich input and output port: seven USB2.0 one USB3.0,6 COMs COM1,2 RS232/485,1 x GPIO(4 x Input 4 x Output),dual gigabit Lan, meet industrial control application requirment, and support I/O port customized.

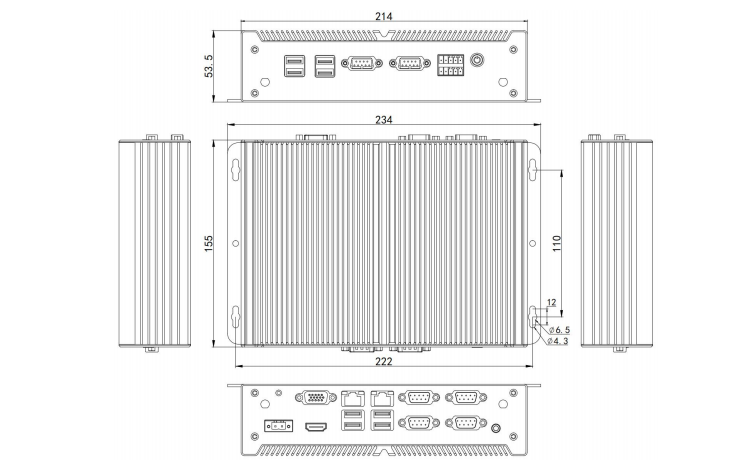

IBOX-1126 Drawing

Specification

Model	IBOX-1126
Color	Model Titanium gray（Any color can be）
Material	Pure Aluminum
Processor	Support Intel Celeron J1900（Quad core,1.99Ghz)
RAM	Support 1*DDR3L 1333/1600 SODIMM RAM,Max 8 GB
BIOS	AMI UEFI BIOS
Display Chip	Support Intel HD Graphics
Display Port	1VGA,1HDMI（Support synchronous and asynchronous dual display）

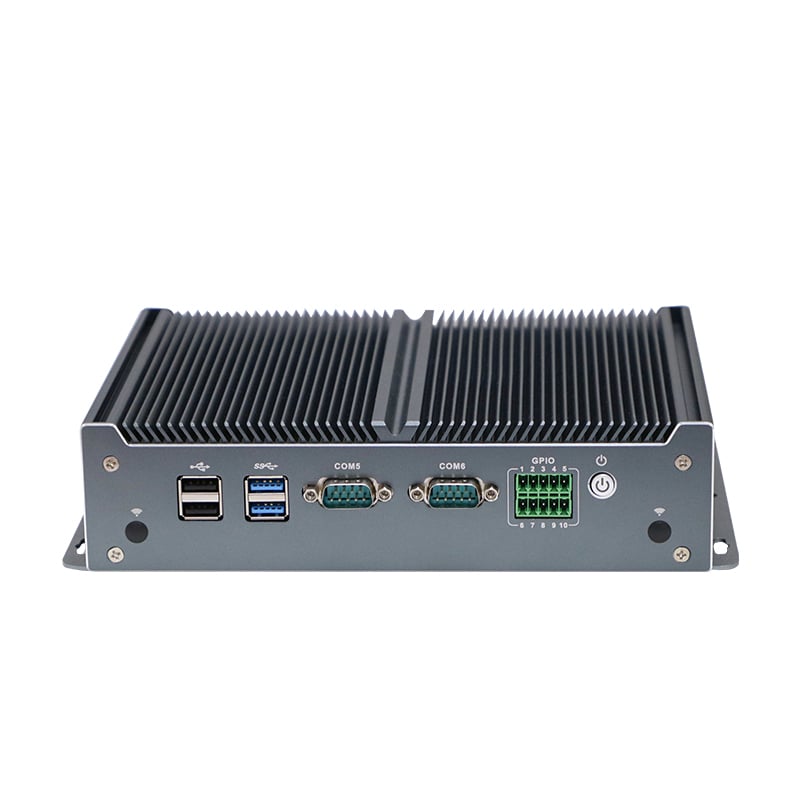

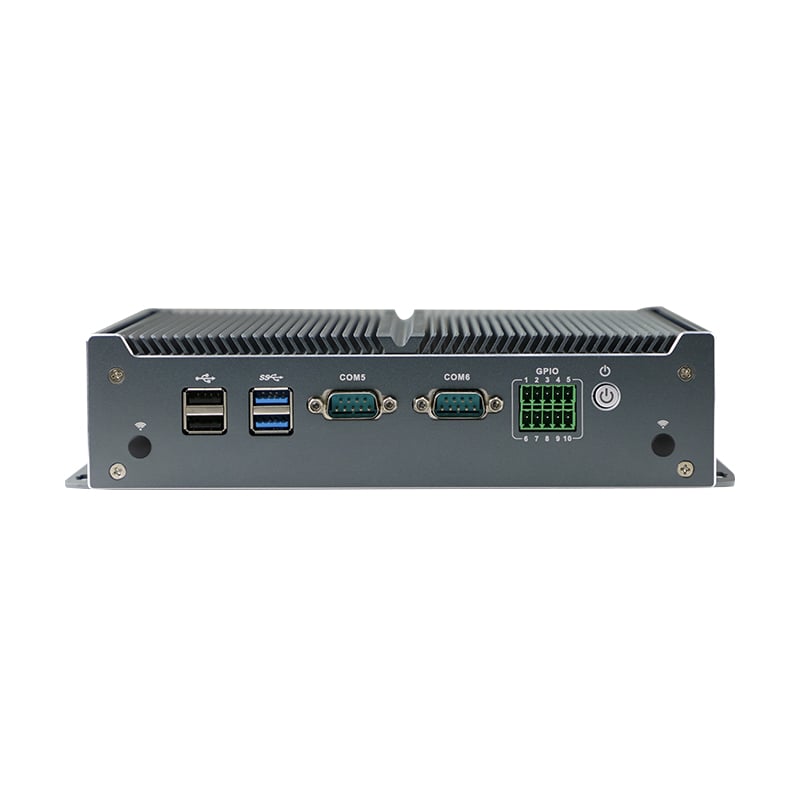

Front I/O	Support 3USB2.0,1USB3.0,2COMs,1GPIO(4Input 4Output),1*switch bottom

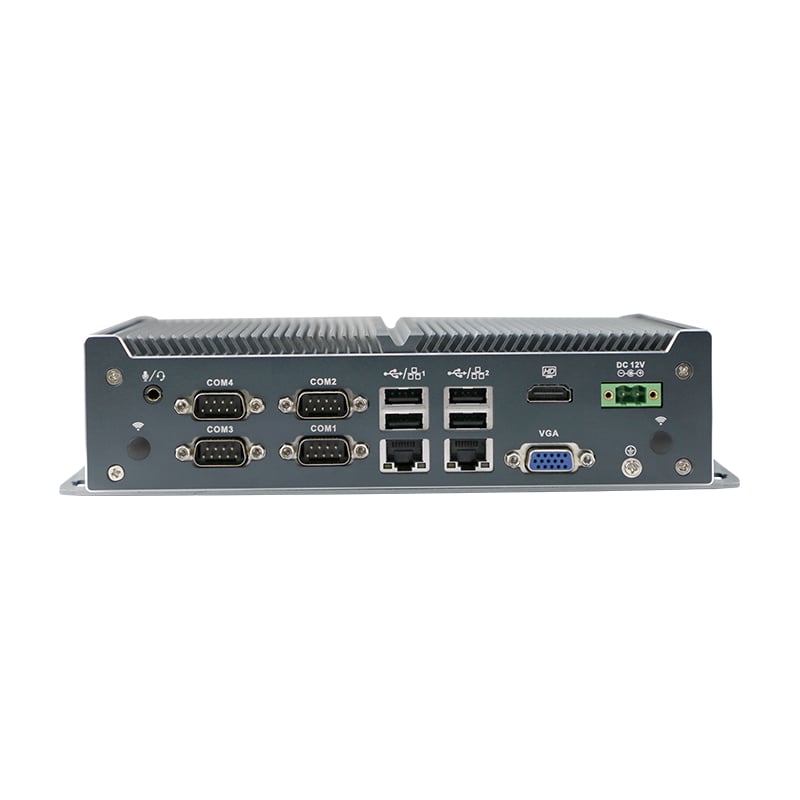

Rear I/O	Support 4COMs(COM1,2 RS232/485 Optional),4USB2.0,2*LAN
Rear I/O	Support 1HDMI.1VGA,12PINS phoenix power connector,1audio
Expansion Slot	Support 1*MINI PCIE slot(WIFI/3G/4G,choose one of them),SIM card slot
Expansion Slot	Support 1*MINI PCIE slot(WIFI/3G/4G,choose one of them),SIM card slot
LAN	2*Intel i211-AT 10/100/1000M Ethernet LAN
Storage	Support 1MSATA,12.5inches HDD/SSD
Power Supply	Support DC 12V
Other function	Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）
Work Temp	0℃ ～ +50℃ ( HDD)，-20℃ ～ +60℃ ( SSD)，Surface air flow
Work Humidity	5% ～ 95% non-condensing
Certification	CE、 CCC、 FCC Class A、 ROHS
size	234 * 155 * 53.5mm
weight	1.8kg
Application	Industrial automation, medical, logistics and transportation, warehousing, electronic education and other fields
