◆ Intel Alder Lake-N N100 Industrial Mini PC;
◆ Support DDR4 memory slot, Max. 16G;
◆ Support 2 RTL8111H Gigabit Ethernet;
◆ Support 3 M.2 slots, support 5G;
◆ Support 3 USB3.0;
◆ Support 6 COM ports (COM1, 2 RS232/485).
This IBOX-1326 fanless industrial mini pc uses Intel Alder Lake-N N100 Processor quad core quad threads, turbo frequency 3.4GHz, 6MB cache,Fanless Compact Design with 2LAN, 2HD-M-I , 6 COM, 3 USB3.0, Support 3 M.2 slots, support 5G,You can connect computers, network devices, and routers together for Internet access and resource sharing.and the fanless industrial mini pc support Power-on boot, Timing boot, Wake on LAN,PXE boot, Watchdog function.

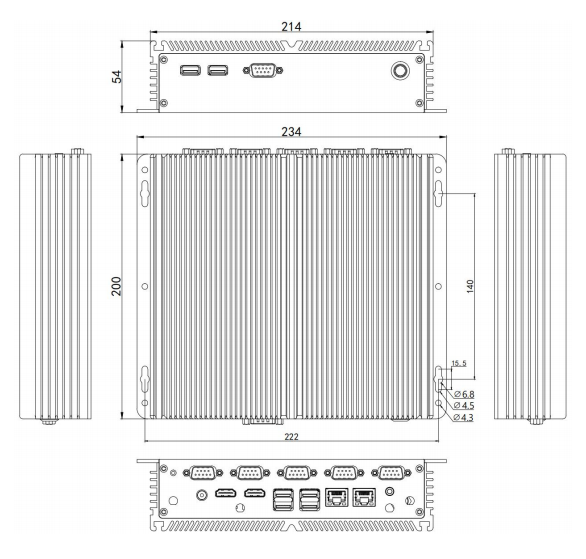

IBOX-1326 Drawing
Specification
| Model | IBOX-1326 |
| Color | Metallic gray (color can be customized) |
| Material | High-quality all-aluminum alloy, hard anodized surface |
| Processor | Onboard Intel N100 (quad core quad threads, turbo frequency 3.4GHz, 6MB cache) |
| RAM | Supports 1 DDR4 3200MHz SODIMM memory slot, Max. 16GB |
| BIOS | AMI UEFI BIOS |
| Display Chip | Intel HD Graphics |
| Display Port | 2 HDMI (supports synchronous/asynchronous dual display) |
| Front I/O | 1*Power Switch, 2 USB2.0, 1 COM (RS232) |
| Rear I/O | 1*2-in-1 Audio, 2 10/100/1000M Ethernet, 2 HDMI, 3 USB3.0, 1 USB2.0, |
| 1 DC, 5 COM (COM1, COM2 optional RS232/485 mode) | |
| Expansion Slot | Support 1 M.2 M-Key 2280 slot (support NVME 1× or SATA protocol) |
| Support 1 M.2 E-key slot (support WIFI/Bluetooth) | |
| Support 1 M.2 B-key slot 3042/3052 (support 4G/5G), with SIM card holder; | |
| Scalable interface (standard shipment doesn’t include this interface): 8-way GPIO | |
| Network | 2 RTL8111H 10/100/1000M Ethernet |
| Storage | Support 1 M-Key 2280 slot (support NVME 1× or SATA protocol), 1 2.5-inch hard disk |
| Input Voltage | Support DC 12V input |
| Other Function | Power-on boot, Timing boot, Wake on LAN,PXE boot, Watchdog (level 0-255) |
| Work Temp | 0°C ~ +50°C (commercial HDD), -20°C ~ +60°C (industrial SSD), surface air flow |
| Work Humidity | 5% ~ 95% non-condensing state |
| Certificates | CE, CCC, FCC Class A, RoHS |
| Dimension | 234*200*54mm |
| Net Weight | 1.98kg【isn't included the wall mount】 |
| Application |
Industrial Automation, Medical Care, Logistics And Transportation, Warehousing, Electronic Education etc. |
