◆ J1900 Quad Core Fanless Industrial PC
◆ Max. Support DDR3L 8G RAM
◆ Support 1 x MSATA Slot, 1x 2.5” HDD
◆ Support WIFI/3G/4G（Choose one from three
◆ 6 x Serial Ports（COM3 RS232/422/485 Optional）
◆ Optional Ports：GPIO, LPT, PS/2 (Standard doesn’t include these )

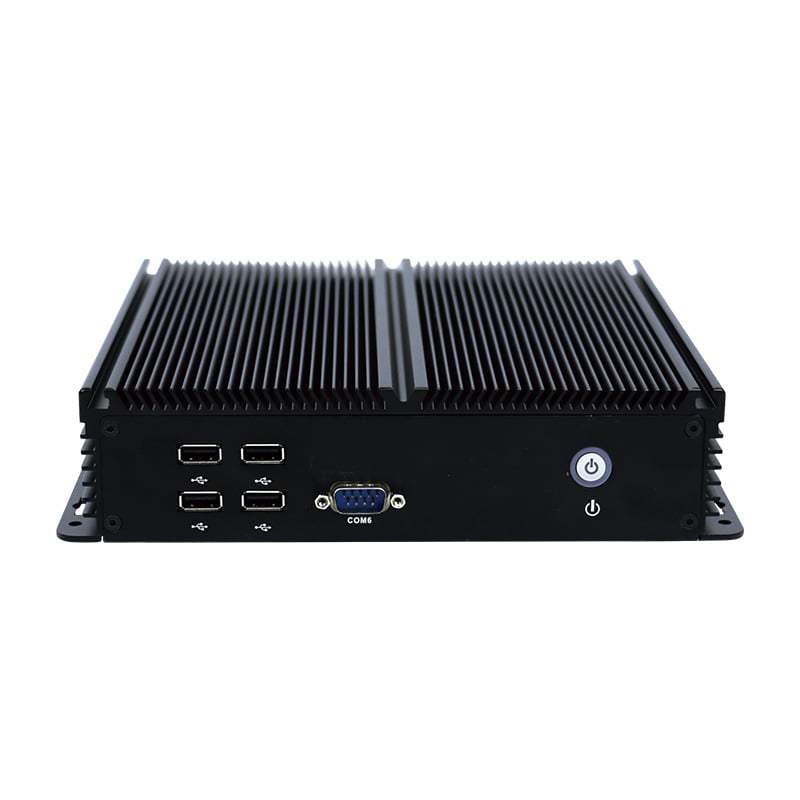

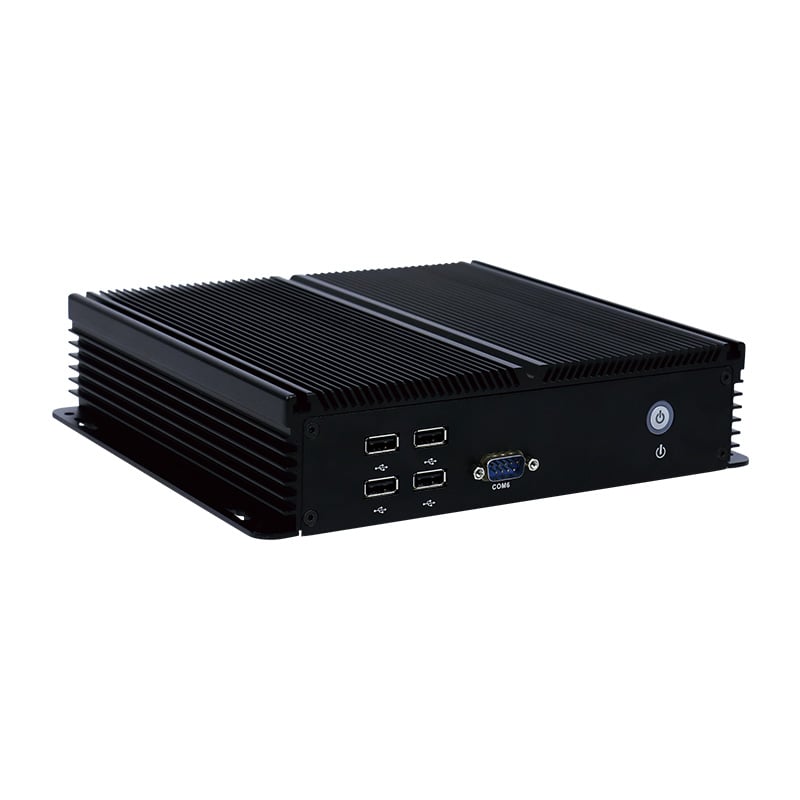

The IBOX-203Plus is a fanless industrial pc that can provide you with a reliable and silent industrial computing solution. With Intel Celeron J1900 quad-core 1.99GHz processor TDP: 10W Ultra-compact Control Cabinet Fanless Industrial PC with all aluminum case material，surface anodic oxidation, Optional Ports：GPIO、LPT、PS/2 (Standard version doesn’t include these ports), one VGA one HD ,dual dispaly port, Dual gigabit lan ,bring you enjoy experience m support wifi 3G 4G that smoothly conntect to network , and support Customized OEM & ODM, focus on and keep improving Customer experience and workflow.
| Model | IBOX-203 Plus |
| Color | Black（Color can be customized） |
| Material | High-quality all aluminum，surface anodic oxidation |
| Processor | Onboard Intel Celeron J1900（Quad core quad threading，1.99G，TDP: 10W）； |
| RAM | Support 1*DDR3L 1333/1600MHz SODIMM RAM Slot，Max. Support 8GB |
| BIOS | AMI UEFI BIOS |
| Display Chip | Integrated Intel HD Graphics |
| Display Port | 1*VGA，1*HDMI（Support synchronous and asynchronous dual display） |

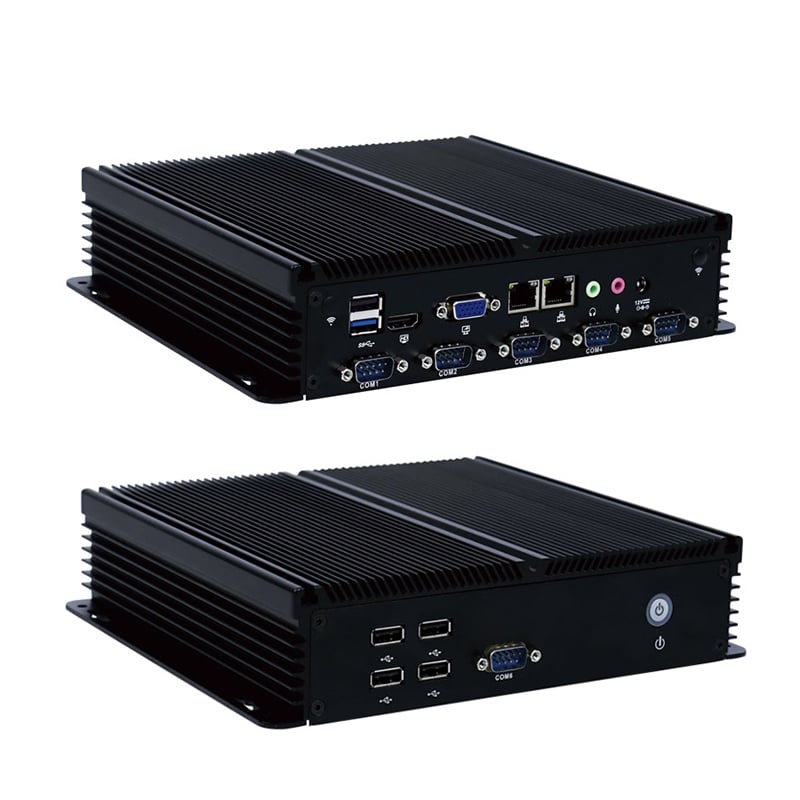

| Front I/O | 4*USB2.0，1*COM，1*Power Switch； |

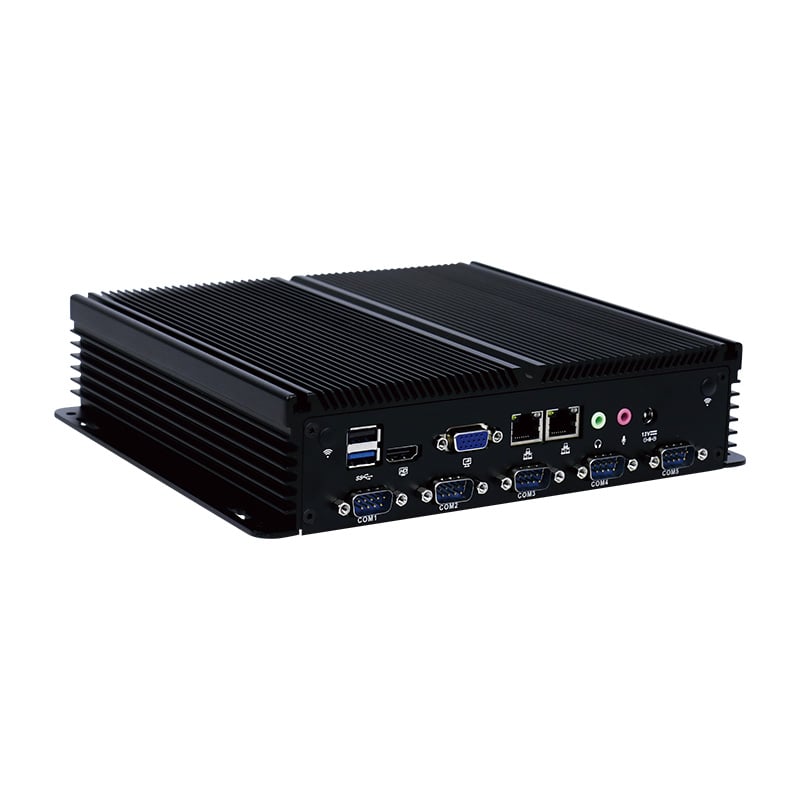

| Rear I/O | 1*USB3.0，1*USB2.0，5*COM（COM3 RS232/422/485 Optional），2*1000M LAN |
| 1*VGA，1*HDMI，1*DC12V Input，1*Mic，1*Line Out | |
| Expansion Slot | Support 1*MINI PCIE Slot（Support MSATA）； |
| Support 1*MINI PCIE Slot（WIFI/3G/4G Optional），Embedded SIM Slot； | |
| Optional Ports：GPIO、LPT、PS/2 (Standard version doesn’t include these ports) | |
| Network | 2*RTL8111F 10/100/1000M LAN |
| Storage | Support 1*MSATA Slot，1*2.5” HDD |
| Input Voltage | Support DC 12V Input |
| Other Function | Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog |
| （0～255 level）(Standard version doesn’t set these function) | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |

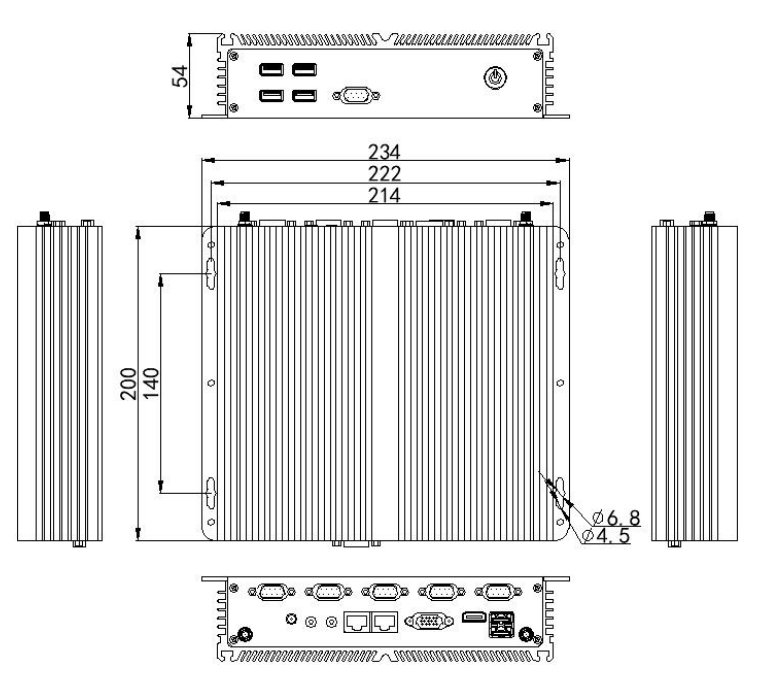

| Dimension | 234 * 200 * 54mm |
| Net Weight | 2.0kg |
| Application | Industrial |
| Automation, Medical, Logistics Transportation, Warehouse, Electronic | |
| Education etc. | |
