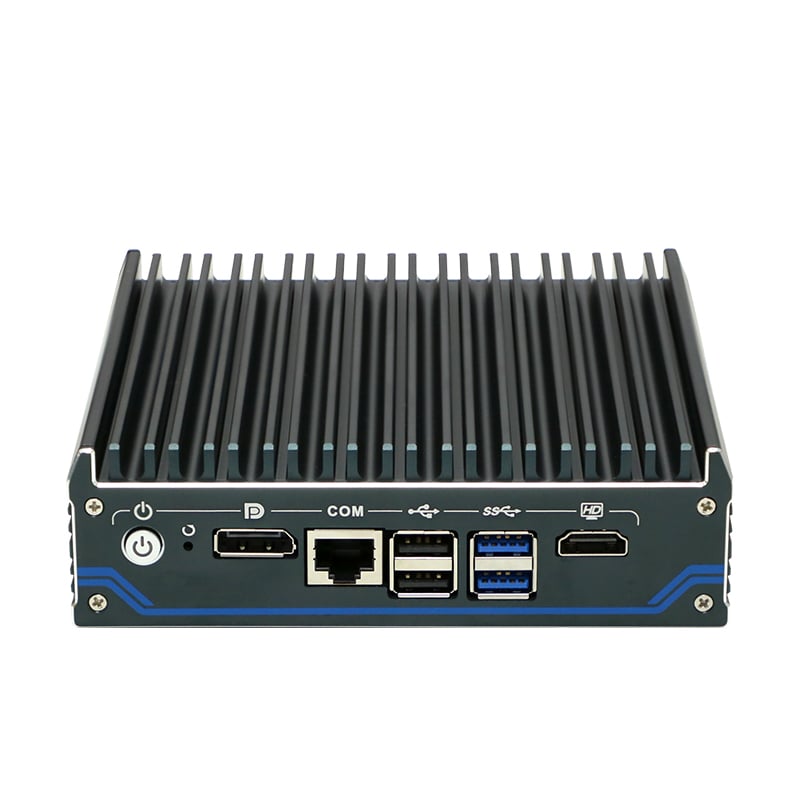

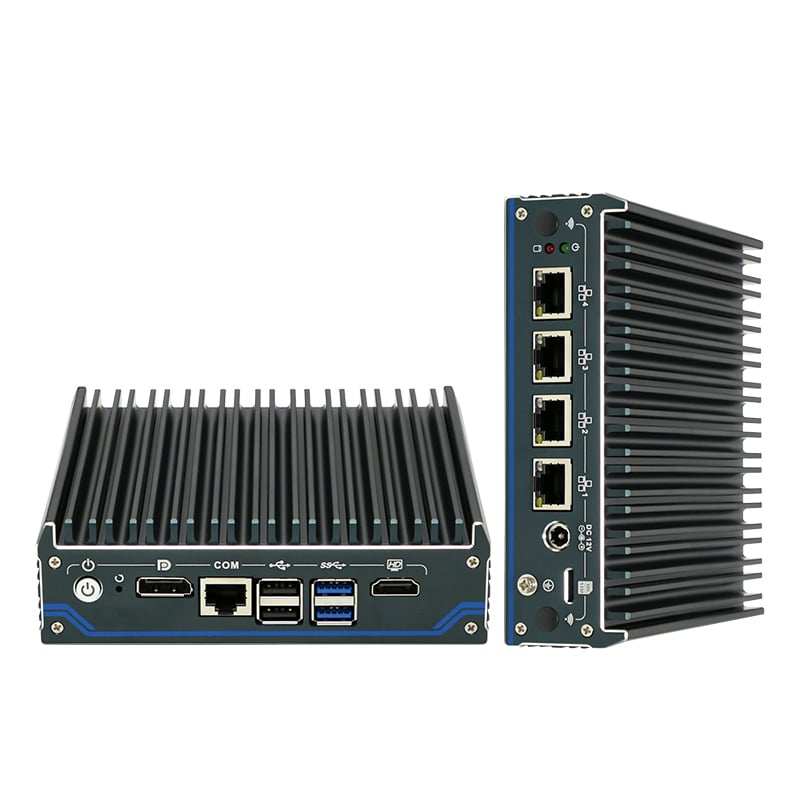

N1141 Best Mini Pc Firewall Appliance For Linux

N1141 Best Mini Pc Firewall Appliance For Linux

◆ Intel Celeron J6412 Mini Pc FirewallAppliance;

◆ Integrated Intel HD Graphics 600;

◆ Support 4 x Intel 2.5G gigabit ethernet;

◆ Support 2 x M.2 Slot, 1 x Mini PCIE Slot;

◆ 1*HDMI, 1 x DPDual display ,Max., 4096x2160 @ 60Hz;

◆ Applicable OS: Pfsense, Linux, Windows10/11.

The N1141 Mini PC Firewall Appliance is a powerful and reliable firewall router that provides exceptional network security. with Intel Celeron J6412 Quad Core processor,4 x Intel 2.5Gbe network lan port, It is designed to provide uninterrupted network security, ensuring that your business remains protected at all times.

Get your hands on the 2.5G Mini PC Firewall Appliance today and enjoy seamless network security!

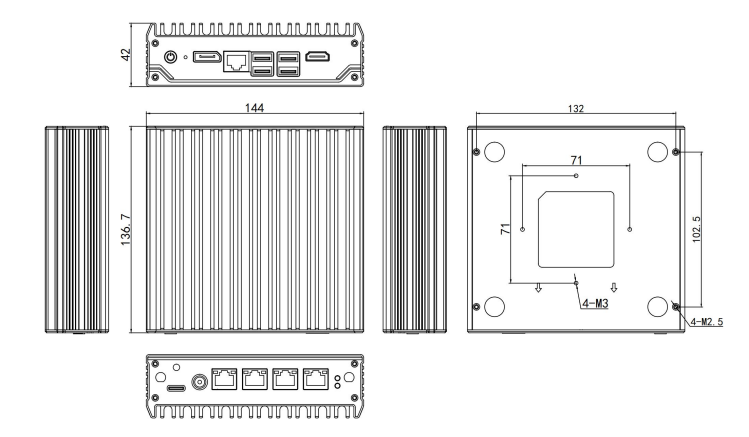

Nano-N1141 Drawing

Specification

Model	Nano N1141
Color	Metal gray (any color is optional)
Material	High-quality all aluminum，surface anodic oxidation
Processor	Onboard Intel Celeron J6412（Quad core quad threading，2.0GHz，pulse frequency 2.6GHz）
CPU	Elkhart Lake
Architecture	Elkhart Lake
RAM	Support 1*DDR4 3200MHz SODIMM Memory Slot，Max. Support 32GB
BIOS	AMI UEFI BIOS
Display Chip	Intel(R) UHD Graphics
Display Port	1HDMI,1DP（Support Synchronous/asynchronous dual display,Resolution Max., 4096x2160 @ 60Hz）

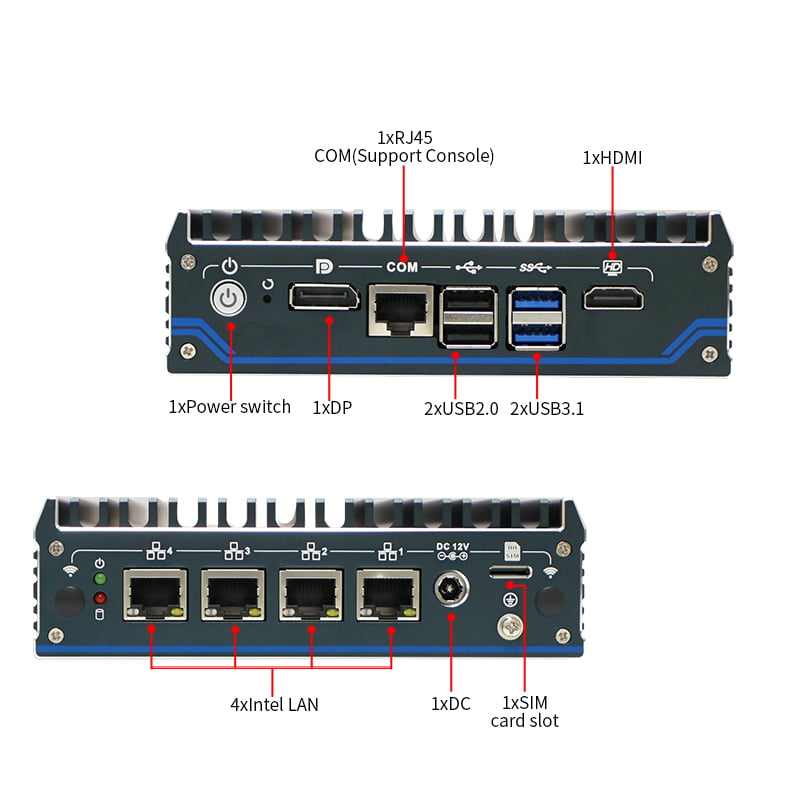

Front I/O	1Power switch,1DP,1*RJ45 COM(Support Console function)
Front I/O	2USB2.0,2USB3.1,1HDMI,1Restart button
Rear I/O	4RJ45 LAN,1DC IN,1*SIM card slot
Expansion Slot	Support 1*M.2 2280 M-key slot（ support SATA protocol）
	Support 1*M.2 2230 E-key slot（support WIFI、Bluetooth）
	Support 1*mini PCIE slot （ Support 4GM modem,outside SIM slot,support USB signal WiFi/Bluetooth）
Network	4*Intel i225/i226-V 2.5G LAN
Storage	1M.2 2280 slot,12.5 inch HDD/SSD
Input Voltage	DC 12V input
Other Function	Power-on, timed power-on, network wake-up, PXE boot, watchdog (level 0-255), TPM2.0 security encryption
Work Temp	0℃ ～ +40℃,surface air flow（HDD）,-20℃ ～ +60℃,surface air flow（SSD),surface air flow
Work Humidity	0% - 95% non-condensing
Certificates	CE、 CCC、 FCC Class A、 ROHS
Dimension	144 * 136.7 * 42 mm
Net Weight	0.78 kg
Application	Firewall, VPN, network server, network security, router and other fields.
