The Fanless Design Industrial Grade PC IBOX-601Intel Celeron 3855U Dual core dual threads，1.6GHz，2M cache .This Industrial Grade PC boasts a fanless design, ensuring silent and reliable operation in demanding industrial environments. It features two DDR4 RAM slots that support speeds of 1866/2133 MHz, allowing for a maximum of 32GB of RAM for optimal performance. Powered by the Intel Q170 chipset, this PC offers stability and compatibility for a wide range of industrial applications. The unit accepts a wide voltage input range of DC 9-36V, adapting to various power sources. Connectivity options include six COM ports (with RS232/422/485 options) for versatile communication interfaces. Additionally, it supports a MINI PCIE slot (with MSATA/3G/4G options) and an embedded SIM slot for expanded functionality. The PC is designed for flexibility, supporting desktop, embedded, and wall-mounted configurations, making it suitable for a variety of industrial applications.

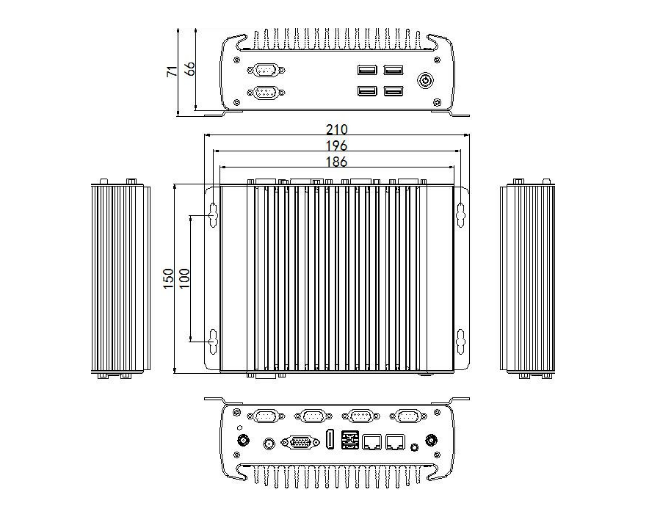

IBOX-601 Drawing
Specification
| Model | IBOX-601 |
| Color | Titanium gray (Color can be customized) |
| Material | High-quality all aluminum，surface anodic oxidation |
| Processor | Onboard Intel Celeron 3855U（Dual core dual threading，1.6GHz，2M third level cache）； |
| Onboard Intel Core i3 6100U（Dual core quad threading，2.3G，TDP:15W） | |
| Onboard Intel Core i5 6200U（Dual core quad threading，2.3GHz，Max turbo 2.8GHz） | |
| Onboard Intel Core i7 6500U（Dual core quad threading，2.5GHz，Max turbo 3.1GHz） | |
| CPU Architecture | Skylake-U |
| RAM | Support 1*DDR4 1866/2133 SODIMM RAM Slot，Max. Support 16GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Integrated Intel HD Graphics 510/520 |
| Display Port | 1*VGA，1*HDMI |

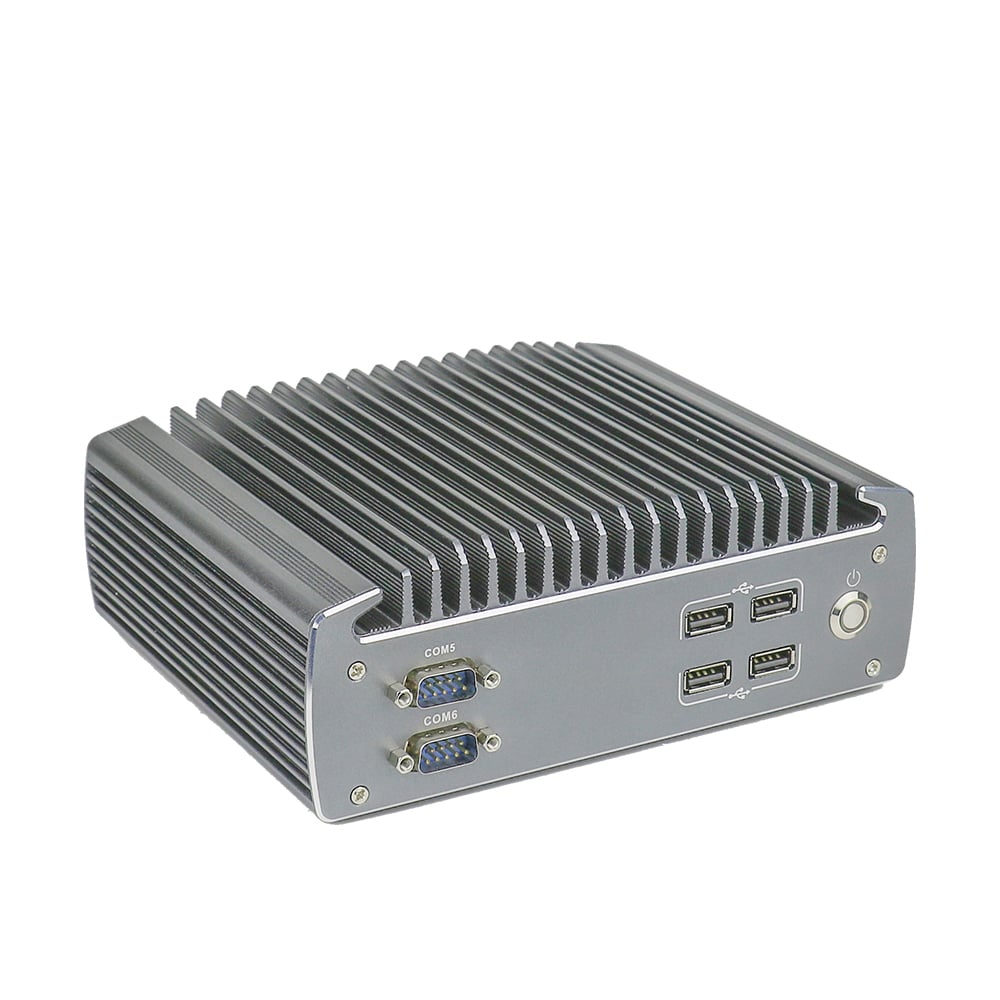

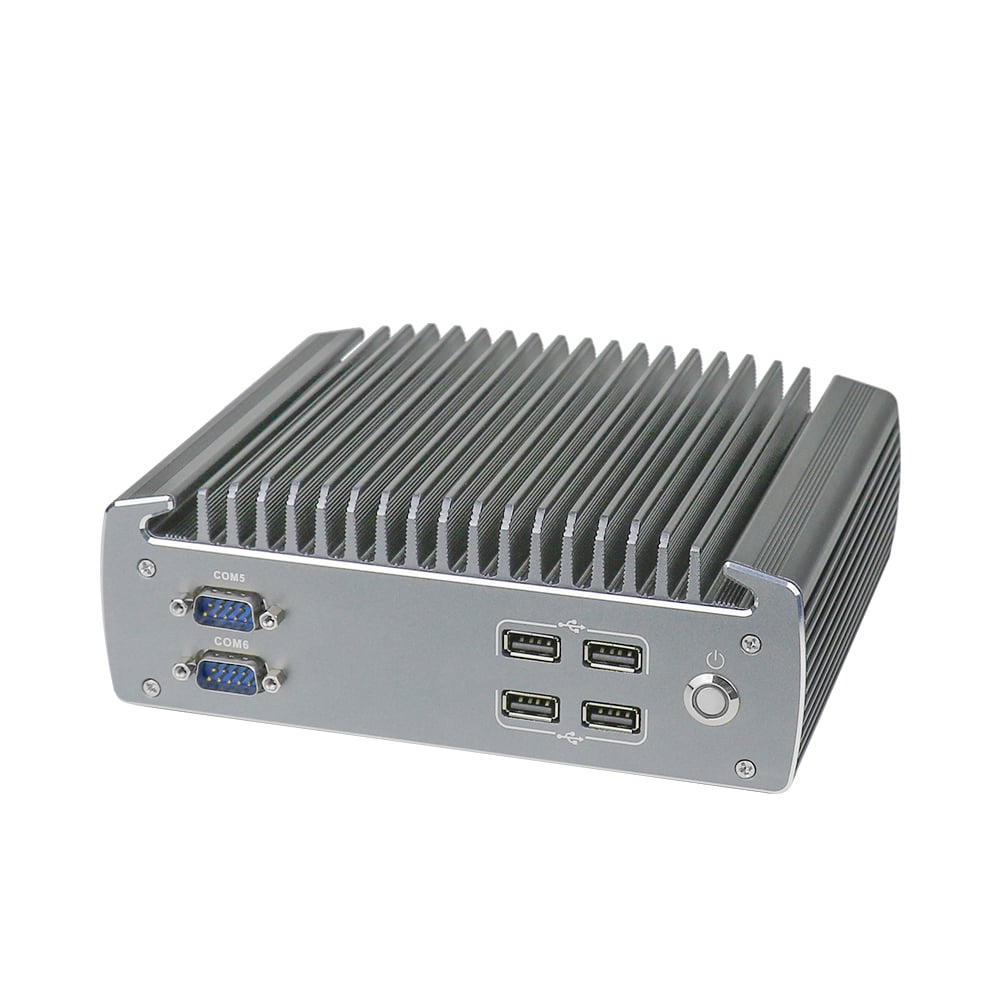

| Front I/O | 2*COM，4*USB2.0，1*Power Switch |

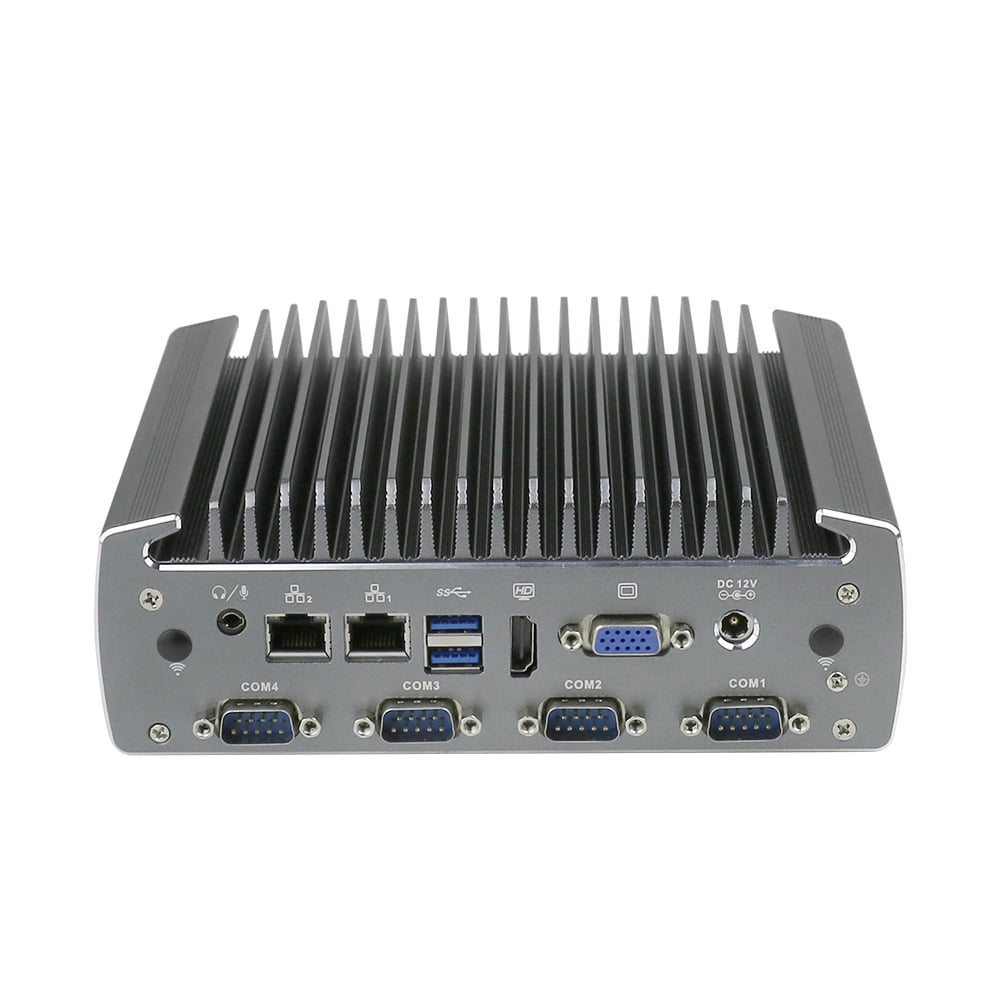

| Rear I/O | 2*USB3.0，2*Intel 1000M LAN，1*VGA，1*HDMI，4*COM, |
| 1*Audio (Support Mic and Speaker at the same time)，1*DC Input | |
| Expansion Slot | Support 1*MINI PCIE Slot（WIFI/3G/4G Optional），Embedded SIM Slot |
| Support 1*MINI PCIE Slot（Support MSATA） | |
| Network | 2*Intel i210/i211-AT 1000M LAN |
| Storage | 1*MSATA Slot，1*2.5” HDD |
| Input Voltage | Support DC 12V Input |
| Other Function | Auto power on 、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function) |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |

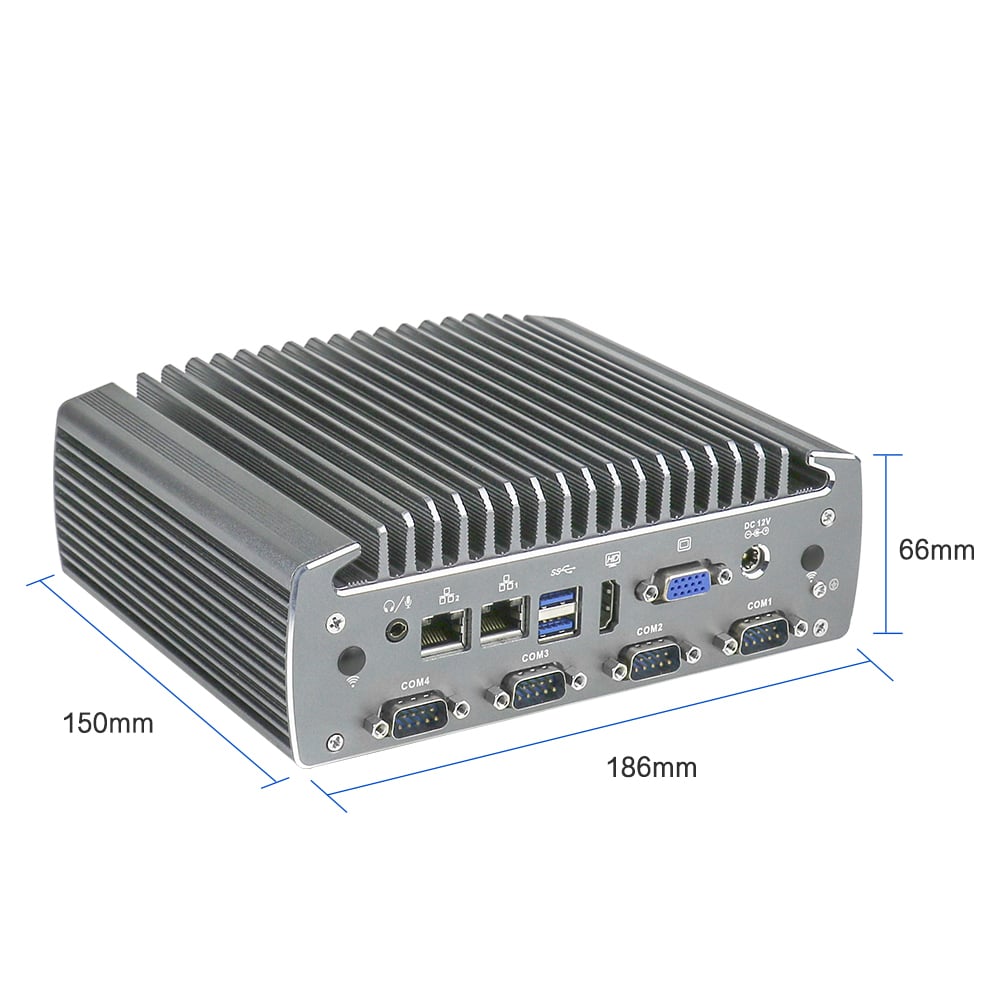

| Dimension | 186 * 150 * 66mm【Not include bracket】 |
| Net Weight | 1.6 kg【Not include bracket】 |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
