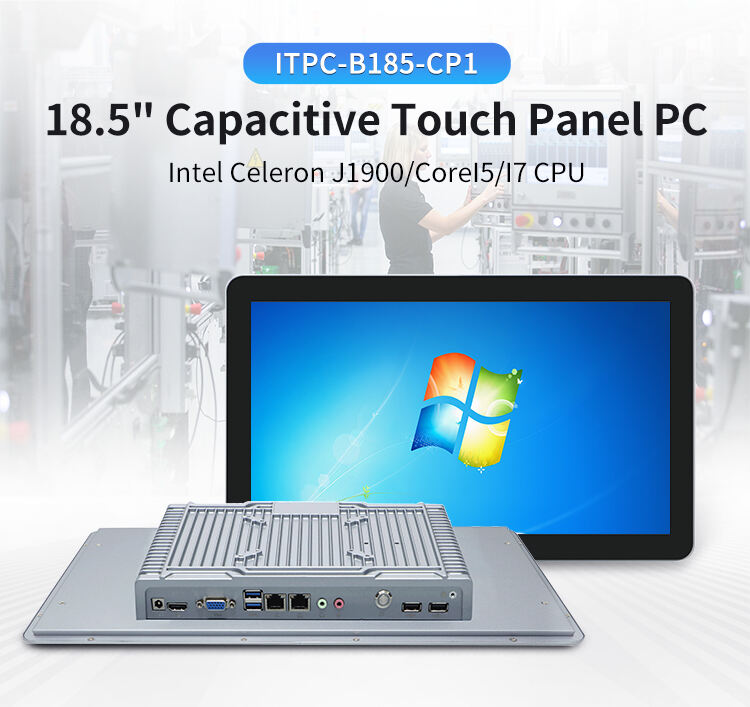

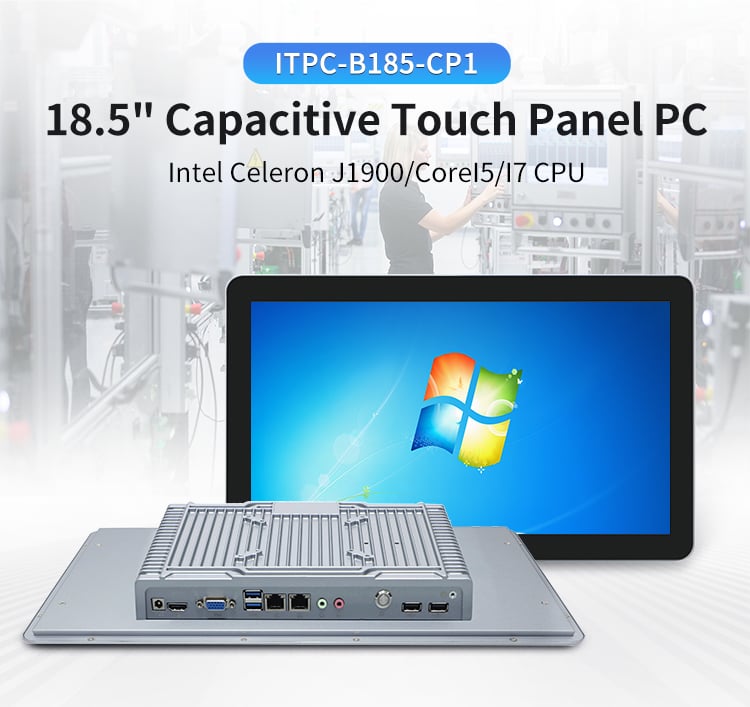

◆18.5 Inch TFT-LCD Touch Panel PC ;
◆Support for Intel Celeron J1900 / Core I5 / I7 CPU ;
◆ Fully fitted HD LCD screen, multi-point capacitive touch screen;
◆Full plane front panel, IP65 grade protection;Ratio: 16:9 ;
◆ Resolution: 1920 * 1080;
◆Brightness: 250 Cd㎡ .
The 18.5” Touch Panel PC is a compact and durable solution designed for environments where space and reliability are key. It features a high-definition 16:9 display with a resolution of 1920x1080 and a brightness of 250 cd/m². Powered by Intel Celeron J1900, Core i5, or i7 processors, it delivers efficient performance for light to moderate computing tasks. The multi-point capacitive touch screen and IP65-rated front panel make it resistant to dust and water, suitable for use in kiosks, small control panels, or confined industrial settings where a smaller form factor is preferred.

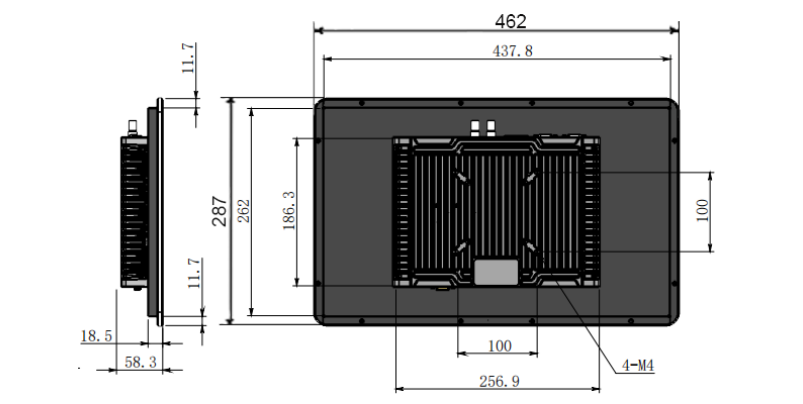

ITPC-B185-CP1 Drawing
Specification
| Model |
ITPC-B185-CP1 |
| Color |
Gray+Silver |
| Material |
Aluminum alloy + Steel Plate |
| Processor |
Intel Celeron J1900 |
|
4th/5th gen Intel Core i5/i7 (the specific model is subject to shipment) |
|
|
Chipset |
Intel CPU integrated chip
|
|
RAM |
J1900: 1 DDR3L 1333/1600 Ram slot, Max. 8GB |
|
4th/5th Gen i5/i7: 2 DDR3L 1333/1600 Ram slot, Max. 16GB
|
|
| BIOS |
AMI UEFI BIOS |
| Display Chip |
Intel Graphics |
| Display Port |
1 VGA, 1 HDMI, 1 LVDS ; (Support Synchronous/Asynchronous Dual Display) |
|
Expansion Slot |
Support 1 MINI PCIE slot, (support WIFI/4G ) |
|
I/O |
1 Power Switch, 1 DC , 1 HDMI, 1 VGA, 2 USB 3.0, 2 USB 2.0, |
|
2 Gigabit Ethernet ports, 1 Mic, 1 Line Out, 2 COM (COM1,2 RS232/485)
|
|
|
LCD |
Size: 18.5 Inch TFT-LCD; |
|
Ratio: 16:9; Resolution: 1920 * 1080; |
|
|
Brightness: 250 Cd㎡; |
|
| Storage |
Support 1 MSATA (According To The Selected Motherboard) |
|
Touch Screen |
Multi-Point Capacitive Touch Screen, Life Can Reach More Than 50 Million Times;
|
|
Speaker |
Two 8-ohm 2-watt speaker
|
| Input Voltage |
DC 12V (Optional 9-36V) |
| Work Temp |
0℃ ～ +50℃，Surface air flow |
| Work Humidity |
5% ～ 95% non-condensing |
| Dimension |
462 * 287 * 58.3 mm |
| Net Weight |
4.3kg |
| Application |
Industrial Automation, Medical, Logistics &Transportation, Warehousing,E-Education etc,. |
|
Warranty Policy |
1 Year Warranty (If Otherwise Agreed In The Contract, The Contract Shall Prevail) |
