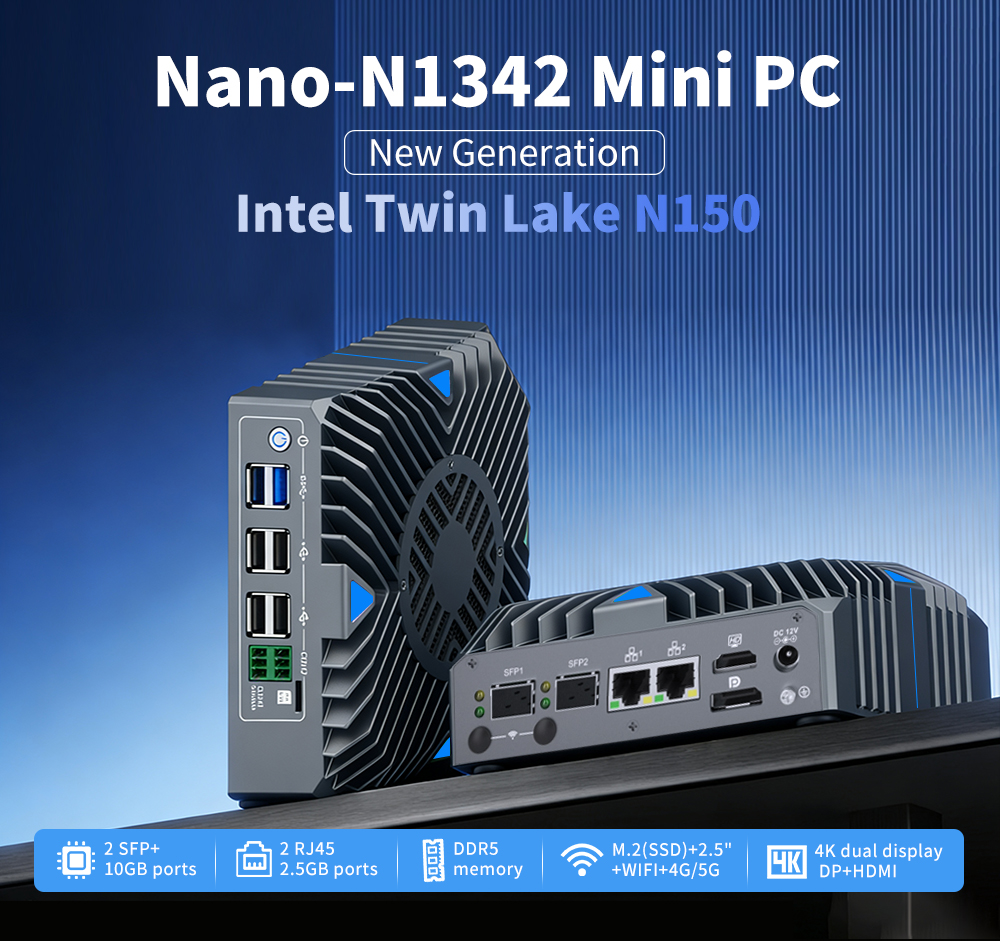

N1342 Intel Twin Lake N150 Mini PC

Model

Nano-N1342

Color

Metal Gray (color can be customized)

Material

High-quality all-aluminum alloy

Processor

Intel Twin Lake N150 processor (4 cores 4 threads, Max Turbo 3.6 GHz)

 Architecture

Twin Lake

RAM

1*DDR5 4800MHz SODIMM memory slot, Max 16 GB

BIOS

AMI UEFI BIOS

Display Chip

Intel® Graphics

Display Port

1*HDMI, 1*DP, Resolution up to 4096x2160 @ 60Hz

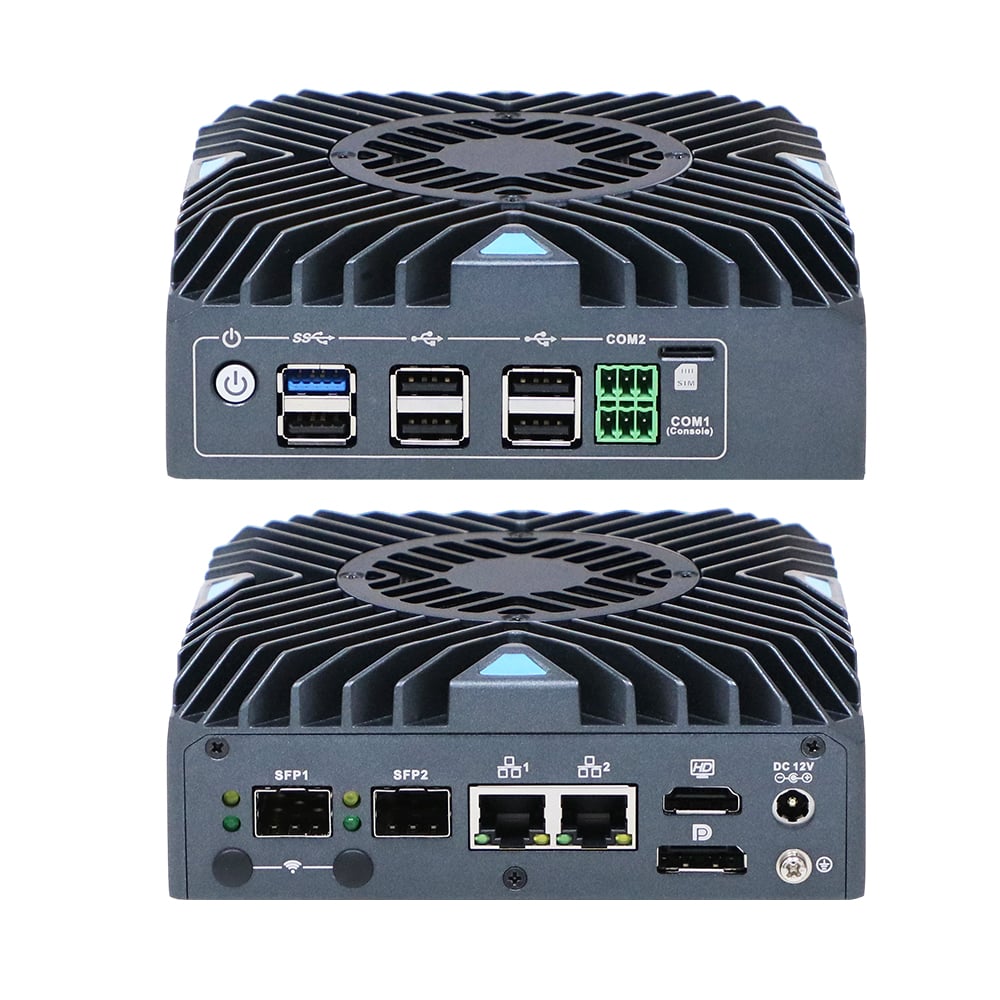

Front I/O

1*power button, 1*USB3.1, 5*USB2.0, 1*Nano-SIM card slot

2* 3-pin Phoenix terminal COM (2*RS232/485 modes, COM1 support console)

Rear I/O

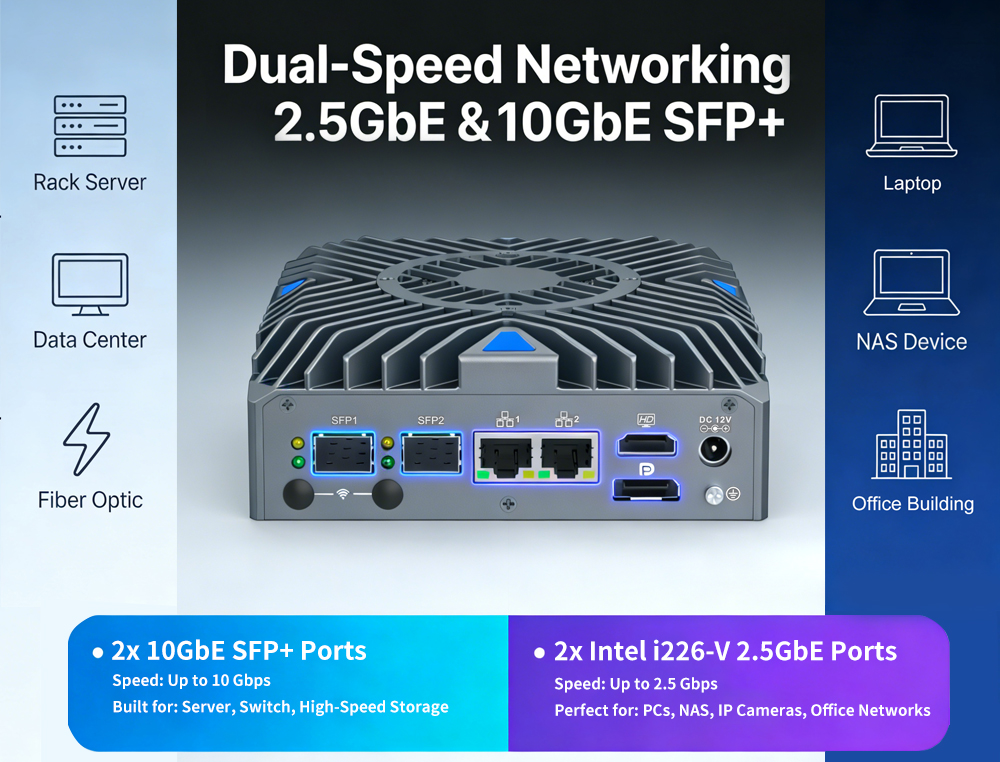

1*DC, 1*HDMI, 1*DP 2*Intel 2.5G Ethernet ports, 2*10 GbE SFP+ ports

Expansion Slot

1*M.2 2280 M-key slot (SATA & PCIe 3.0 X1 NVME)

1*M.2 2230 E-key slot (PCIe & USB / CNVIo2)

1*M.2 3052 B-key slot (USB 3.0, 4G/5G) and an external Nano-SIM card slot

Expandable interface (not included in standard shipment)：: 4 GPIO channels

Network

2*Intel i226-V 100/1000/2500M Ethernet ports, 2*10 GbE SFP+ ports (Intel 82599)

Storage

1*M.2 2280 slot, 1*2.5-inch HDD/SSD

Input Voltage

Supports DC 12V input

Other Function

Power-on, timed power-on, PXE boot, network wake-up, watchdog (0-255 levels), TPM2.0 security encryption

Work Temp

0℃ to +40℃ (for commercial HDDs), -20℃ to +50℃ (for industrial SSDs), with surface airflow

Work Humidity

0% to 95% non-condensed state

Certificates

CE、 CCC、 FCC Class A、 RoHS

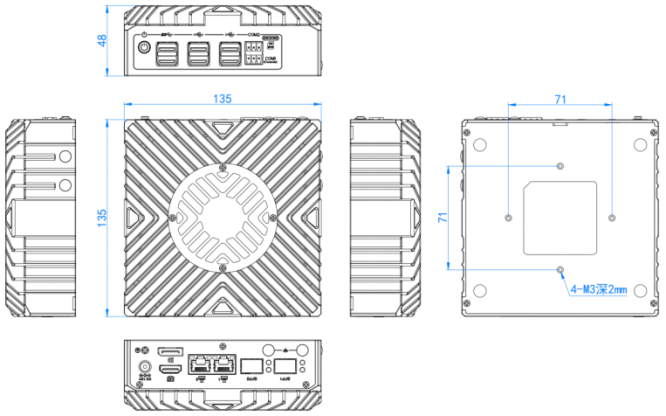

Dimension

135 * 135 * 48 mm

Net Weight

0.80 kg

Application

Industrial control, industrial automation, robotics, IoT gateways, edge computing, machine vision, AGVs/AMRs, and more

Name

Quantity

Specification

Power Adapter

1

The N150 Recommends 12V 5A

Power Cord

1

American-Standard

VESA

1

Standard

Configuration 1

Nano-N1342

Intel N150

Standard Port

Note: When using both WIFI and 5G modules, an antenna mounting hole must be added. For assistance, contact your pre-sales technician.
