The IBOX-706 Pro 7th Gen Industrial PC with Intel Core i5-7360U processor ,Dual Core 4 threads，4MB three-level buffer，frequency 2.3GHz，Turbo 3.6GHz; 1 DDR4 1866/2133 SODIMM memory slot，Max 16GB, Integrated Intel HD Graphics 640 Chip Display chip,VGA HD Supports dual screen display, DC 9～36V wide voltage input support positive and negative electrode protection,make it ideal to Industrial automation, medical, logistics, transportation, warehousing, machine vision and other fields.

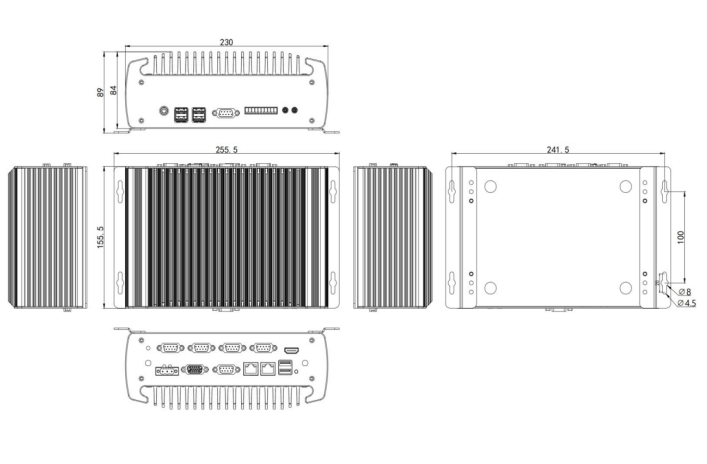

IBOX-706 Pro Drawing
Product Parameter
| Model | IBOX-706 Pro |
| Chassis color | Dark grey（Colors can be freely customized） |
| Chassis material | High quality all aluminum alloy with hard anodized surface |
| Processor | Onboard Intel Core i5-7360U（Dual Core 4 threads，4MB three-level buffer，frequency 2.3GHz，Turbo 3.6GHz） |
| Memory | Support 1*DDR4 1866/2133 SODIMM memory slot，Max. 16GB |
| BIOS | AMI EFI BIOS |
| Display chip | Integrated Intel HD Graphics 640 Chip |
| Display port | 1*VGA，1*HDMI（Supports synchronous and asynchronous dual display） |

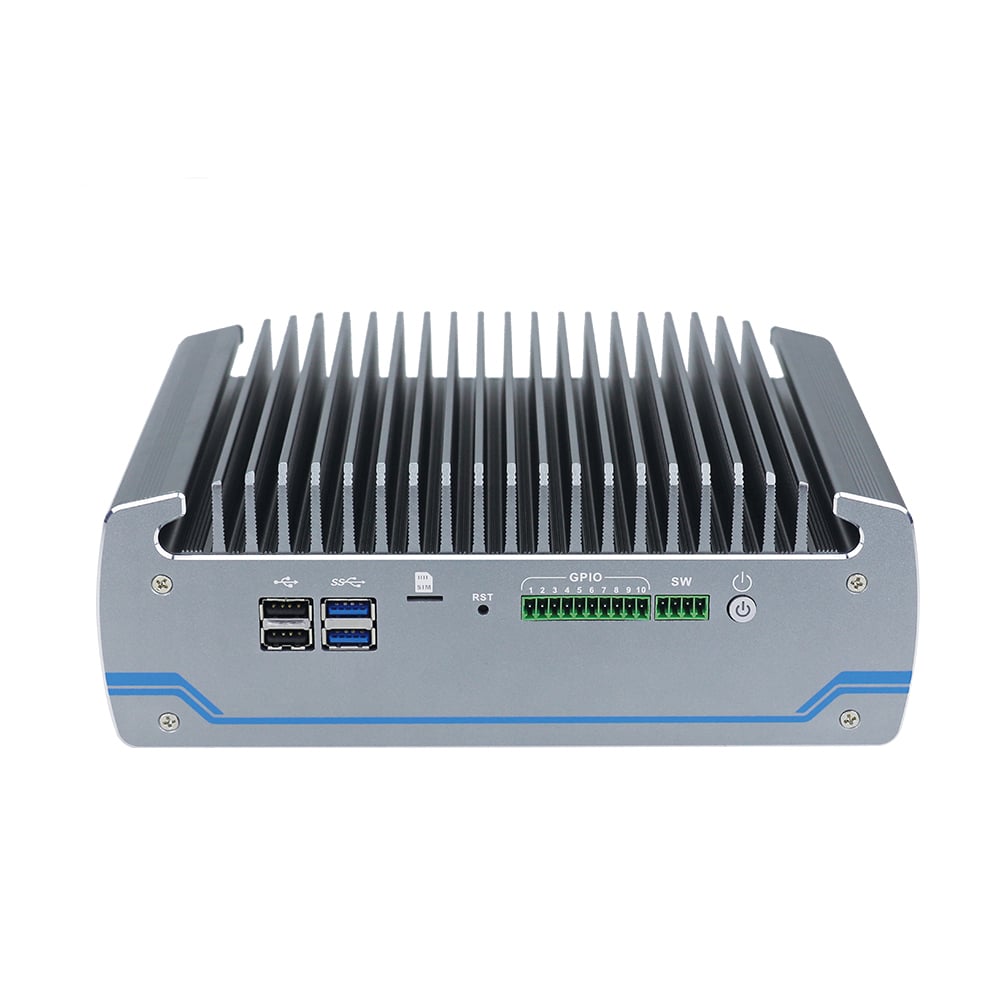

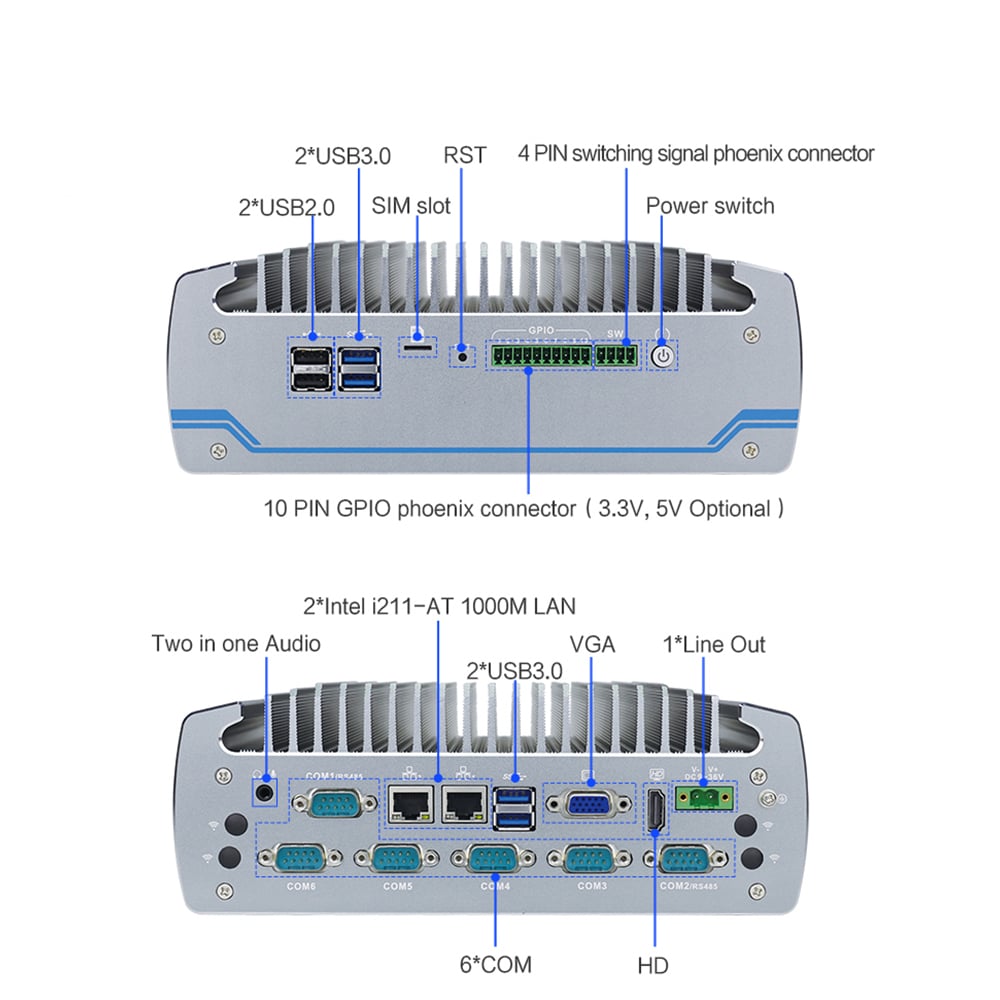

| Front I/O | 1*power button，4*USB2.0，1*COM，8 bits GPIO Phoenix，1*Mic，1*Line Out |

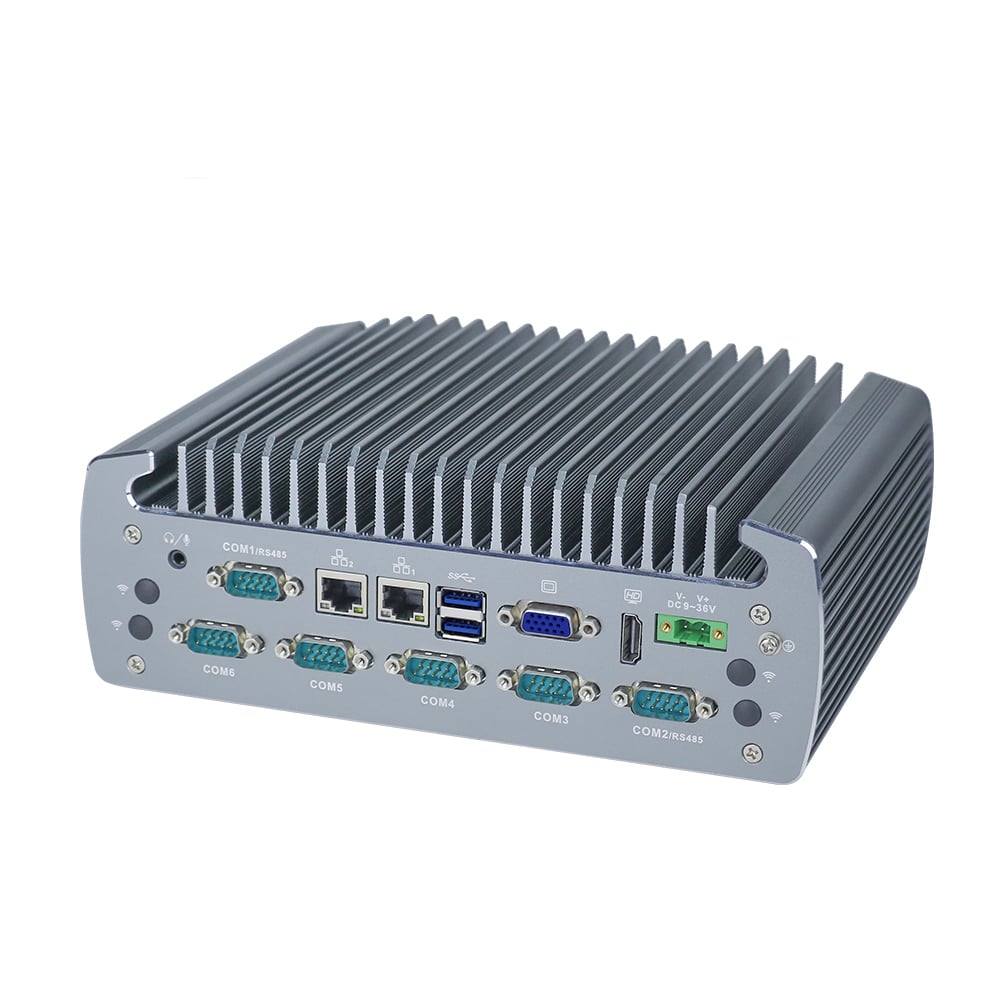

| Rear I/O | 2*USB3.0，2*Intel i210/i211-AT 10/100/1000M port，1*VGA，1*3P Phoenix for power supply |
| 1*COMS，1*HDMI，5*COM（COM1&COM2：RS232/422/485 is optional） | |
| Expansion slot | Support 1*MINI PCIE slot（WIFI/3G/4G are optional），with SIM card slot |
| Support 1*MINI PCIE slot（support MSATA） | |
| Expansion（the standard is without it）：1*USB2.0 | |
| Network | 2*Intel i210/i211-AT 10/100/1000M network |
| Storage | Support 1*MSATA slot，onboard 1*2.5inch HDD/SSD |
| Input voltage | DC 9～36V wide voltage input，Support positive and negative electrode protection |
| Another function | Auto-power on with electrify、Power on by alarm、network wake up、PXE turn on、watching dog（0～255 levels） |
| Working temp. | 0℃ ～ +50℃（Business HDD），-20℃ ～ +60℃（Idustrial SSD），Surface air flow |
| Working humidity | 5% ～ 95% Non-condensing state |
| Qualification | CE、 CCC、 FCC Class A、 RoHS |

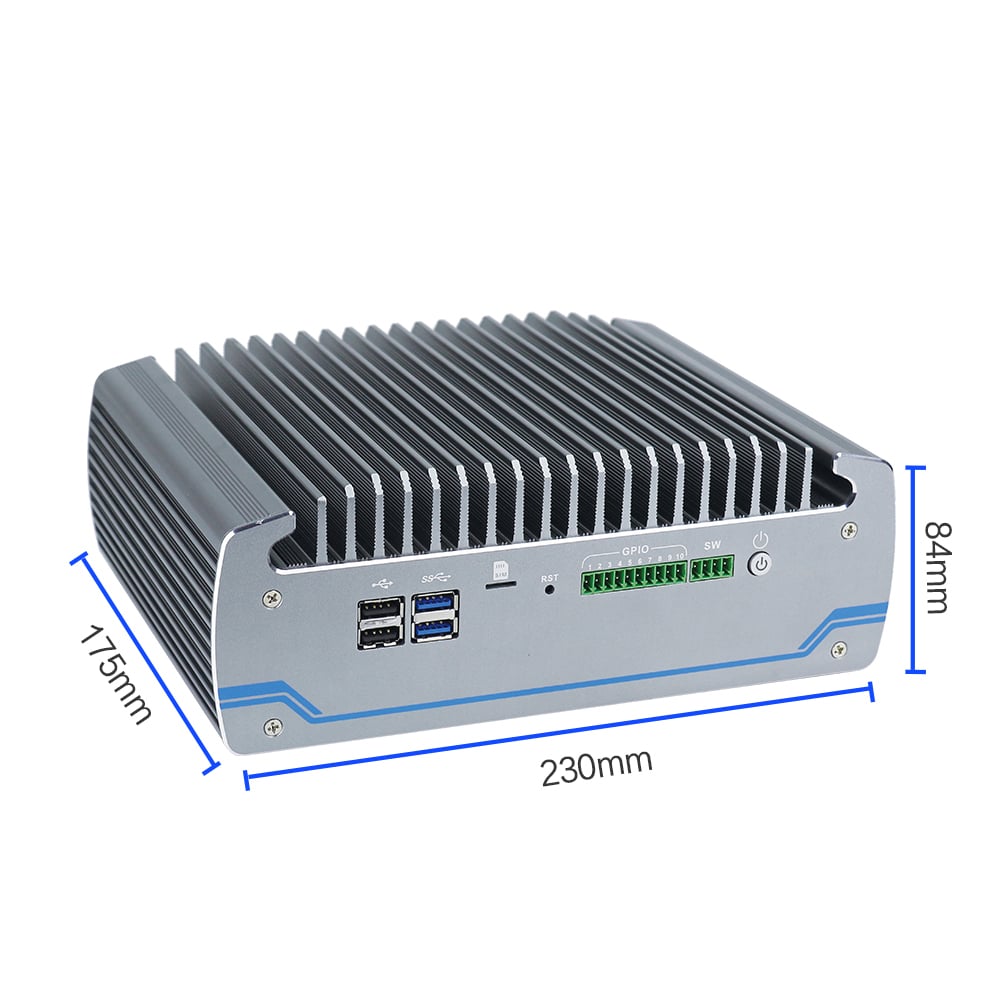

| Dimension | 230 * 155.5 * 84 mm【without wall-mount bracket】 |
| Weight | 2.41 kg【without wall-mount bracket】 |
| Application | Industrial automation, medical, logistics, transportation, warehousing, machine vision and other fields |
