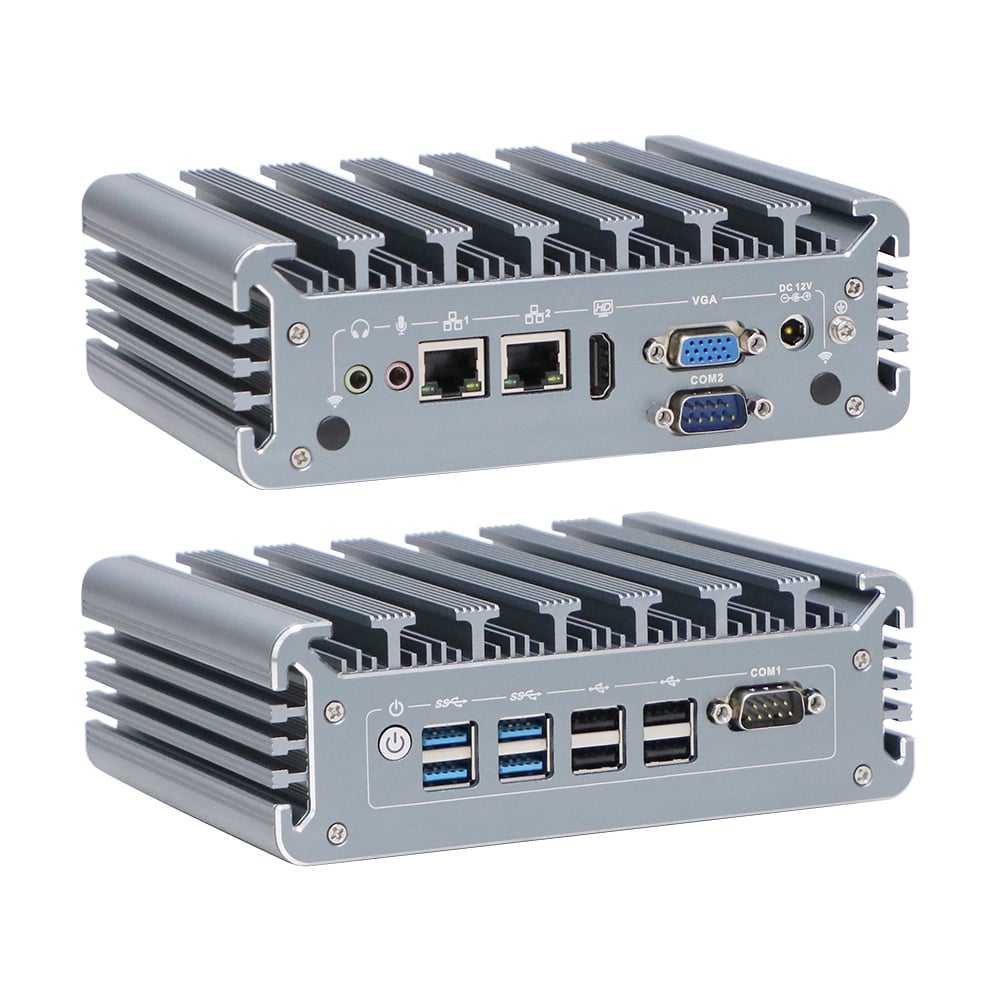

N342F Intel 7th/8th/10th gen Core I5 Mini PC

N342F Intel 7th/8th/10th gen Core I5 Mini PC

◆ Intel 7th/8th/10th gen Core i5 Mini PC;

◆ 1* M.2 2280 slot and 1*2.5 inch hard disk;

◆ 1*HDMI, 1*VGA;

◆ 2*COM ports (RS232 mode);

◆ 8*USB ports;

◆ DC 12V input;

◆ Applied OS: Windows10, 11, Linux;

The Nano-N342F Fanless Industrial Mini PC Powered by a versatile Intel 7th, 8th, or 10th Generation Core i5 processor, the Nano-N342F delivers a perfect balance of processing power and energy efficiency. It offers exceptional connectivity with 8 USB for peripherals and 2 RS232 COM for seamless integration with legacy industrial equipment such as barcode scanners, sensors, and control systems. The flexible dual-storage configuration, featuring one M.2 2280 slot and one 2.5-inch SATA bay, allows for high-speed boot drives and ample data storage. With dual display outputs (HDMI & VGA), it supports simultaneous monitoring on modern and legacy screens. Ready for deployment, it supports Windows 10, Windows 11, and various Linux OS, and is powered by a simple 12V DC input. Choose the Nano-N342F for a durable, high-performance computing solution that thrives where standard PCs cannot.

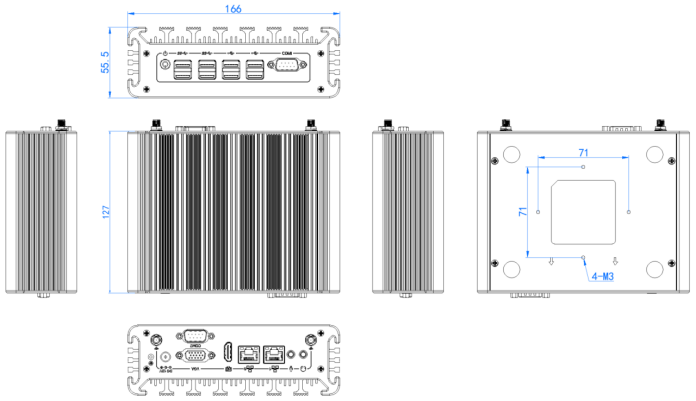

IBOX-3326 Drawing

Specification

Model	Nano-N342F
Color	Metallic Gray (color can be customized)
Material	High quality all aluminum alloy
Processor	Intel Core i5-7287U (dual-core 4 threads, base frequency 3.3 GHz, up to 3.7 GHz)
	Intel Core i5-8350U (4 cores 8 threads, base frequency 1.7 GHz, up to 3.6 GHz)
	Intel Core i7-10610U (4 cores 8 threads, base frequency 1.8 GHz, up to 4.9 GHz)
Architecture	Kaby Lake/Kaby Lake R/Comet Lake
Memory	Support DDR4 2133/2400/2666 SODIMM memory slots
Memory	(i5-7287U & i5-8350U 1DDR4 Ram, Max 32G ; i7-10610U 2DDR4 Ram ,Max 64G)
BIOS	AMI EFI BIOS
Display chip	Intel Iris Plus Graphics 650/Intel UHD Graphics 620/Intel UHD Graphics
Display Port	1VGA , 1HDMI (HDMI resolution up to 4096x2304@24Hz)

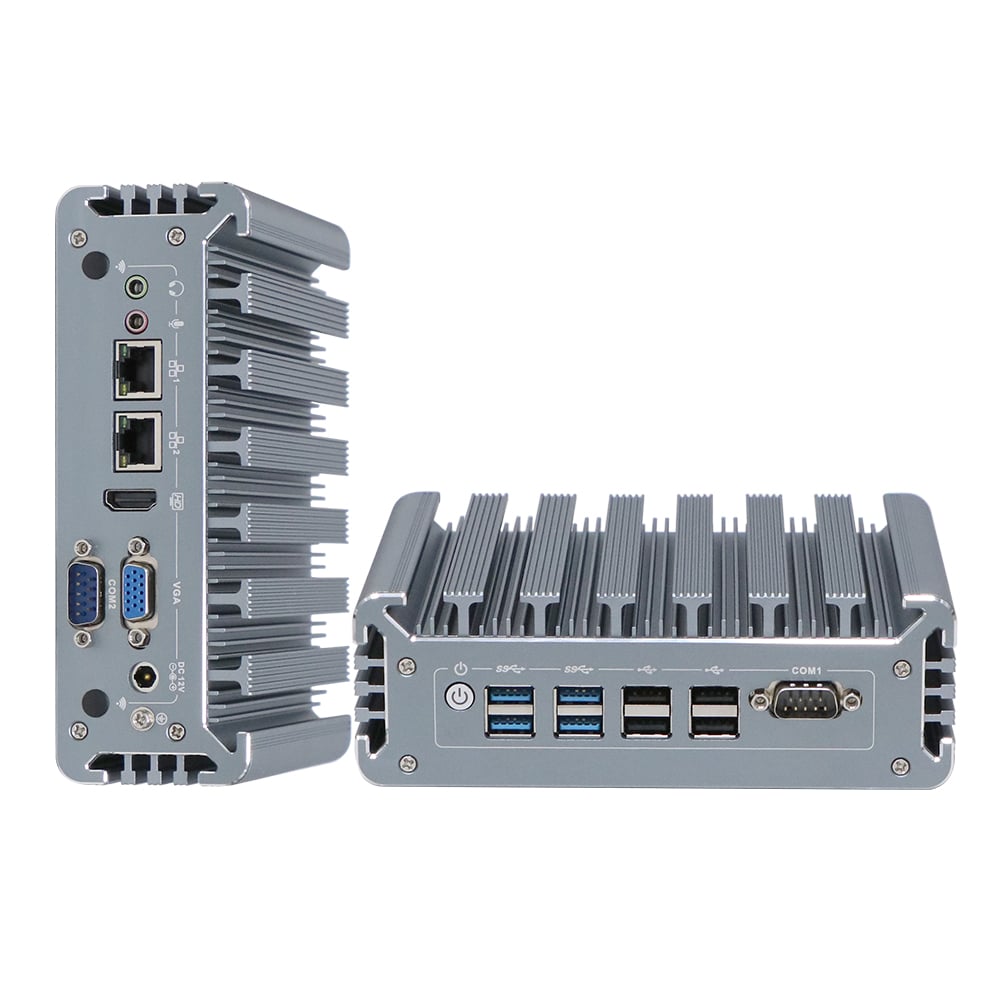

Front I/O	1power button, 4USB3.0, 4USB2.0, 1COM RS232

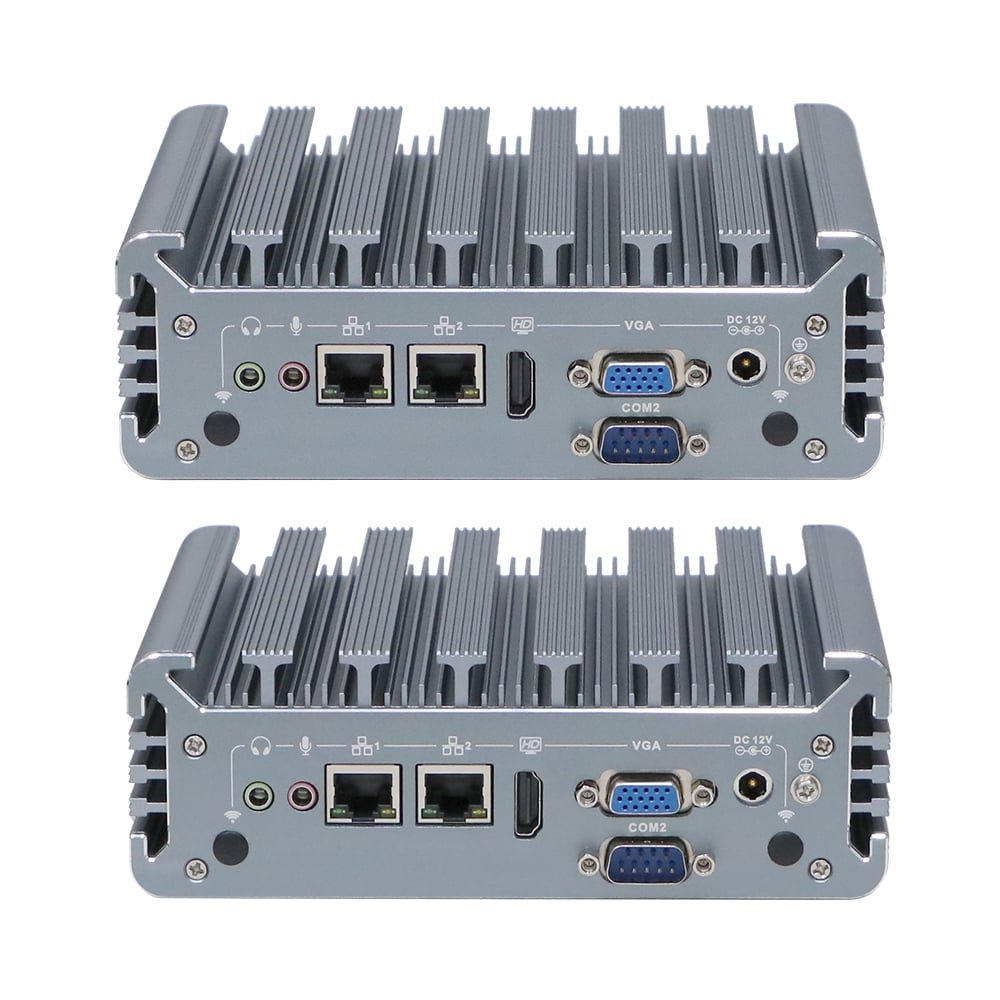

Rear I/O	1DC , 1VGA , 1HDMI , 2RJ45 network ports, 1*COM RS232
Rear I/O	1 Mic, 1 Line Out
Expansion slot	1* M.2 2280 M-Key slot (support SATA & NVME , PCIE3.0X4)
Expansion slot	1* MINI PCIE slot (PCIe & USB2.0 protocol, support 4G/WIFI), built-in Nano-SIM card slot
Network	2* Realtek 8111H 10/100/1000M Ethernet
Storage	1* M.2 2280 slot and 1*2.5 inch hard disk
Input Voltage	DC 12V input
Other Function	Auto power on、Timing boot、Wake on LAN、PXE boot, TPM2.0 security encryption
Work Temp	0℃ ~ +45℃, surface air flow
Work Humidity	5% ~ 95% non-condensable state
Certificate	CE、 CCC、 FCC Class A、 RoHS
Dimension	166 * 127 * 55.5 mm
Weight	1.19 kg
Application	Industrial automation, medical, logistics and transportation, warehousing, electronic education etc.

packing list

Name	Quantity	Specifications
Power Adapter	1	Recommendation 12V 5A
Power Cord	1	CN, US,UK, EU etc.
Vese Bracket	1	Standard

Optional information

Configuration 1	Nano-N342F	Intel Core i5-7287U	Standard Port
Configuration 2	Nano-N342F	Intel Core i5-8350U	Standard Port
Configuration 3	Nano-N342F	Intel Core i7-10610U	Standard Port
Notes	[i5-7287U, i5-8350U] support the motherboard DuPont USB2.0 pin socket to expand 2* USB2.0 [i7-10610U] The motherboard doesn't have duPont USB2.0 pin and doesn't support USB2.0 expansion
