◆ Intel Core i3 i5 i7 11th Gen processor industrial PC;
◆ Support 3 x Intel i226-V 2.5G LAN;
◆ Support 2 x M.2 slot，support 4G;
◆ Support 1 x Mini PCIE slot;
◆ Support 6 x COM(COM1,2 RS232/485);
◆ Work temperature: -20℃ ～ +60℃.

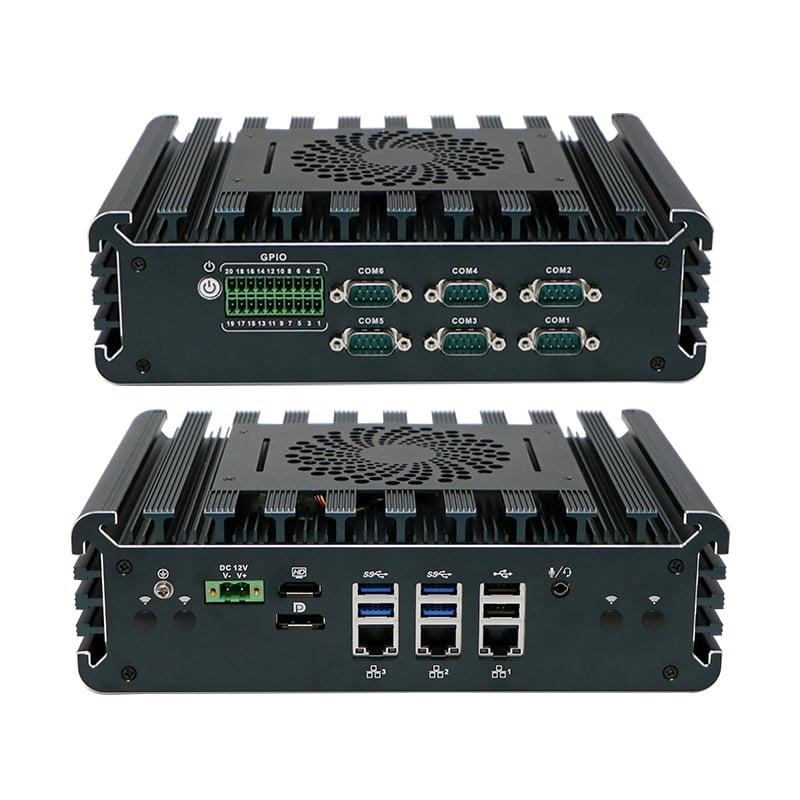

The IBOX-3126 11th Gen Industrial PC Powered by Intel Tiger Lake processor 11th generation intel core i3 i5 i7 cpu, one DDR4 memory slot，Max 32GB, 3 x Intel i226-V 2.5G LAN, 2 x M.2 slot，support 4G, 1x Mini PCIE slot , Support 6 x COM (COM1&2 RS232 RS485), High quality all aluminium alloy with hard anodized surface，Fan intelligent heat dissipation, design to Medical Automation, CNC Laser control system, Rail, vision system, E-education area.
| Model | IBOX-3126 |
| Color | Black（can be customized） |
| Chassis | High quality all aluminium alloy with hard anodized surface，Fan intelligent heat dissipation |
| Processor | Onboard Intel Core i3 1115G4（Dual core 4 threads，3.0 GHz，Turbo 4.1GHz） |
| Onboard Intel Core i5 1135G7（Quad core 8 threads，2.4 GHz，Turbo 4.2 GHz，8MB cache） | |
| Onboard Intel Core i7 1165G7（Quad core 8 threads，2.8 GHz，Turbo 4.7 GHz，12MB cache） | |
| Memory | Support 1*DDR4 3200MHz SODIMM memory slot，Max. 32GB |
| BIOS | AMI UEFI BIOS |
| Display chip | Integrate Intel HD Graphics /Intel Iris(R)Xe Graphics |
| Display port | 1*HDMI FHD Display port，1*DP（Support Synchronous or asynchronous display） |

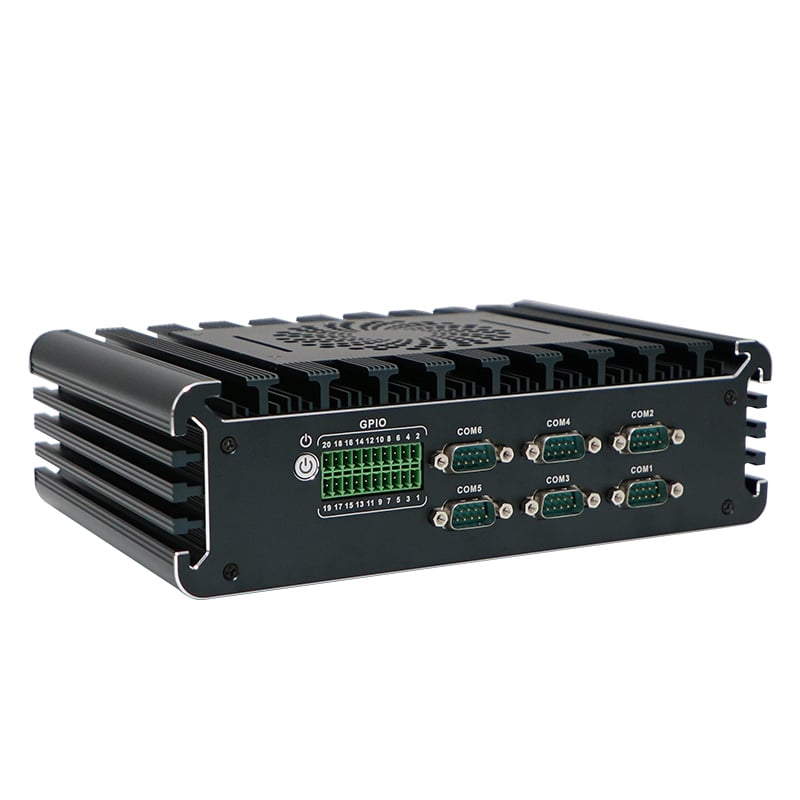

| Front I/O |
1*Power button，1*16 pins GPIO Phoenix terminal，6*COM ports（COM1&COM2 can be option RS232/RS485) |

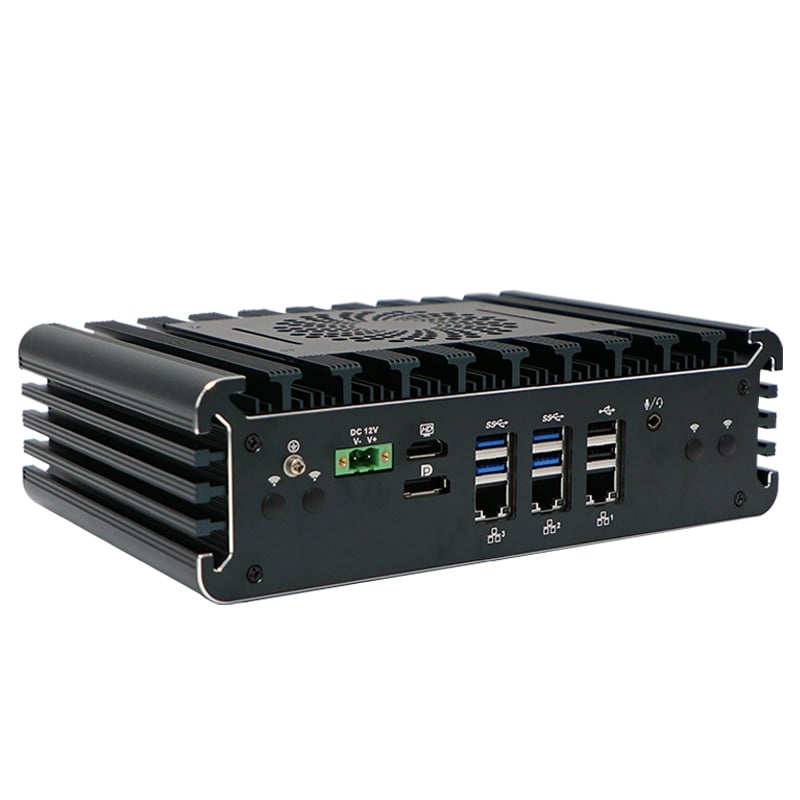

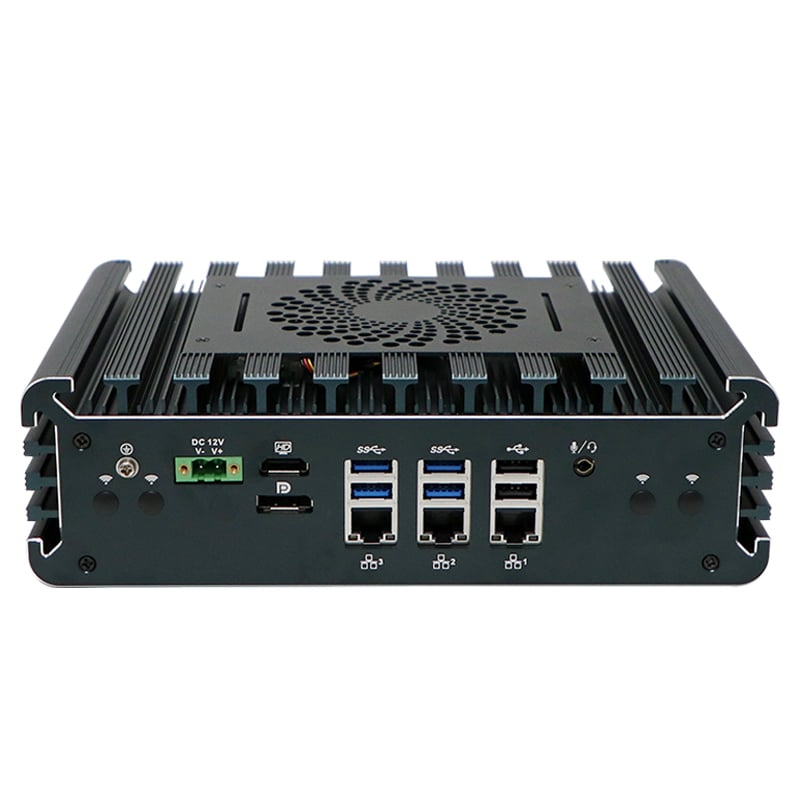

| Back I/O | 1*2Pin Phoenix terminal，1*HDMI，1*DP，4*USB3.0，2*USB2.0 |
| 3*Intel I225-v 2.5G LAN，1*audio&Mic | |
| Expansion slot | Support1*M.2 M-Key 2280 slot（support NVME） |
| Support 1*MINI PCIE slot（support WIFI/Bluetooth） | |
| Support 1*M.2 B-key slot 3042/3052（support 4G），with SIM card slot； | |
| Can be expand（The standard is without it）：2*USB2.0 | |
| Network | 3*Intel i226-V 2.5G LAN |
| Storage | Support 1* M.2 slot(support NVME),1*2.5 inch HDD |
| Input voltage | Support DC 12V input |
|
Another functions |
Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot,Watchdog（0～ 255 level） |
|
Work temperature |
0℃ ～ +50℃（business HDD），-20℃ ～ +60℃（industrial SSD），Air flow surface |
| Work humidity | 5% ～ 95% Non-condensing state |
| Certification | CE、 CCC、 FCC Class A、 RoHS |

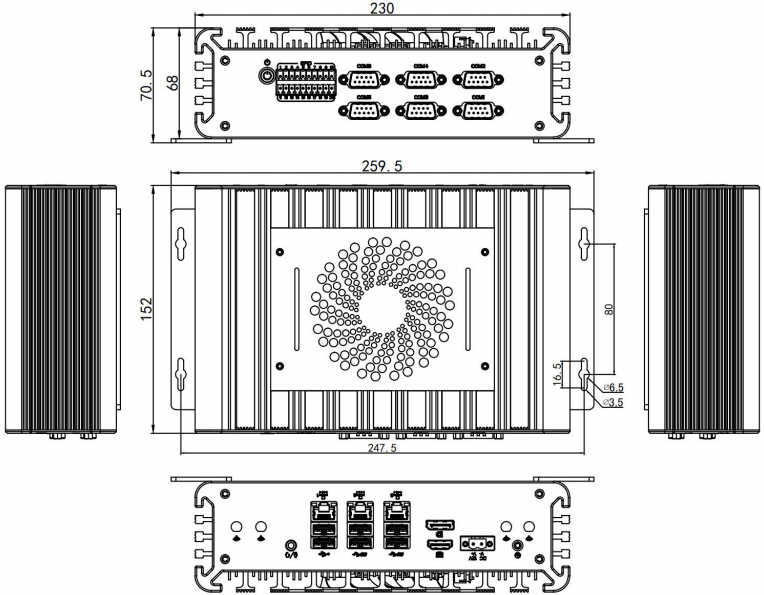

| Dimension | 230 * 152 * 68 mm |
| Weight | 2.4kg【without wall mount】 |
| Application | Industrial automation，medical，logistics transportation，warehouse，E-education.etc |
