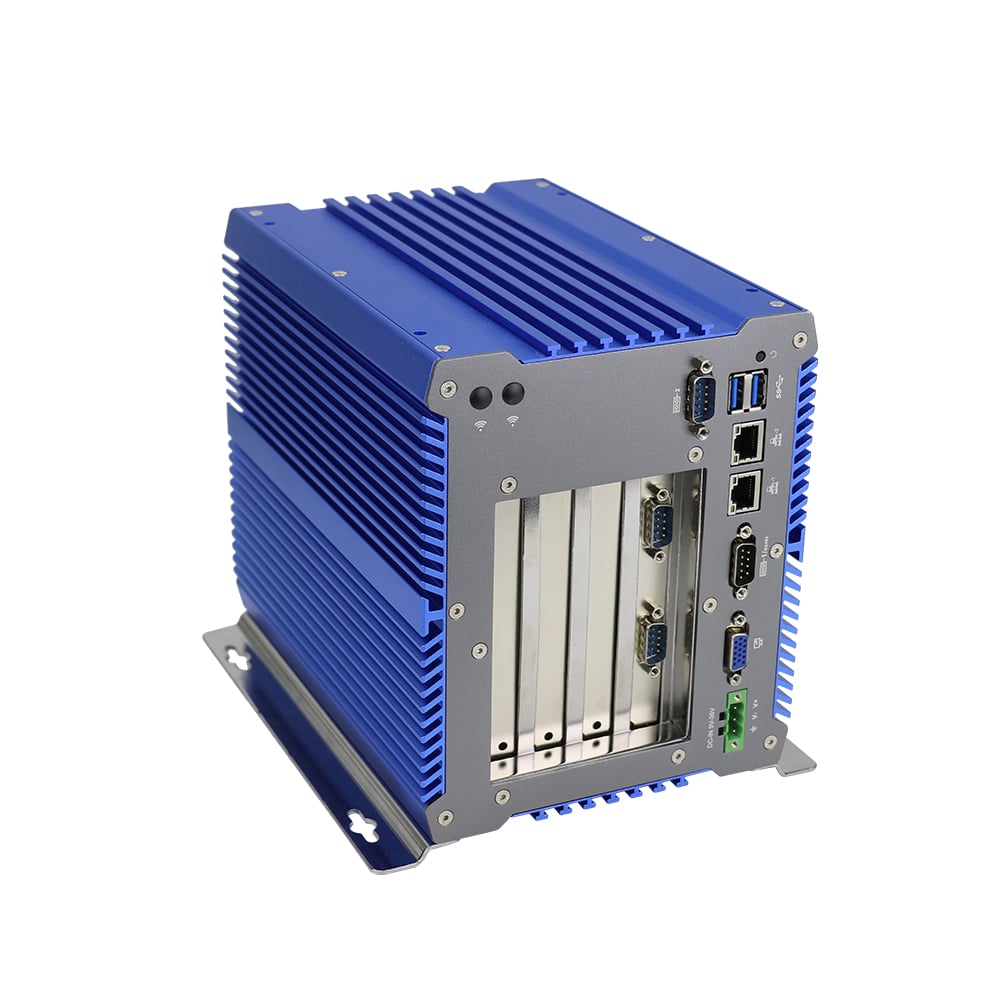

IBOX-704 Plus Industrial PC PCIE X4 PCI

◆Intel Celeron 3965U、7th Gen Core i5 i7 industrial PC

◆Support 1xPCIE X4 Slot + 3xPCI Slot

◆Max. Support DDR4 1866/2133 16G RAM

◆Support 1 x Mini PCIE slot

◆6 x COM（2xCOM RS232/422/485 Optional）

◆DC 9-36V wide voltage Input

The 704Plus Industrial PC is a rugged, high-performance computing device designed for industrial applications where reliability and versatility are paramount. Engineered with an all-aluminum structure, the 704Plus Industrial PC offers a fanless design that ensures durability in challenging environments. The sleek and compact form factor houses powerful processing capabilities, featuring onboard Intel Celeron 3965U or 7th Generation Intel Core i5/i7 processors. This ensures smooth performance and efficient operation for a variety of industrial tasks, from data processing to real-time monitoring and control systems.

In terms of expansion, the 704Plus Industrial PC doesn’t disappoint. It supports a PCIe X4 Slot and 3 additional PCI Slots, offering versatile options for adding specialized hardware like network cards, communication interfaces, or storage devices. This makes the 704Plus Industrial PC an ideal solution for industries requiring customizable configurations for tasks like automation control, system integration, or specialized monitoring.

Connectivity and I/O

The 704Plus Industrial PC excels in connectivity, equipped with 6 COM ports (2 of which are optionally configurable as RS232/422/485), ensuring robust communication with various industrial devices, sensors, and machinery. Whether used in factory automation, vehicle tracking systems, or remote monitoring applications, the tablet’s flexible I/O options ensure compatibility with a wide range of equipment and systems.

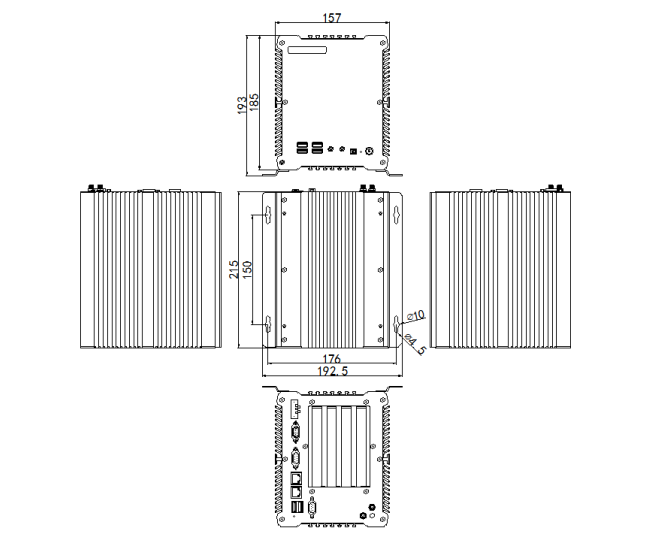

IBOX-704 Plus Drawing

Specification

Model	IBOX-704 Plus
Color	Blue + Grey（Color can be customized）
Material	High-quality all aluminum，surface anodic oxidation
Processor	Intel Celeron 3965U（Dual core dual threads，2MB third level cache，2.2 GHz）
	Intel Core i5 7360U （Dual core quad threads，4MB third level cache，2.3GHz，Max turbo 3.6GHz）
	Intel Core i7 7500U（Dual core quad threads，4MB third level cache，2.7GHz，Max turbo 3.5GHz）
RAM	Support 1*DDR4 1866/2133 SODIMM RAM Slot，Max. Support 16GB
BIOS	AMI EFI BIOS
Display Chip	Integrated Intel HD Graphics 610/620
Display Port	1VGA，1HDMI Built-in Pin（Support synchronous and asynchronous dual display）

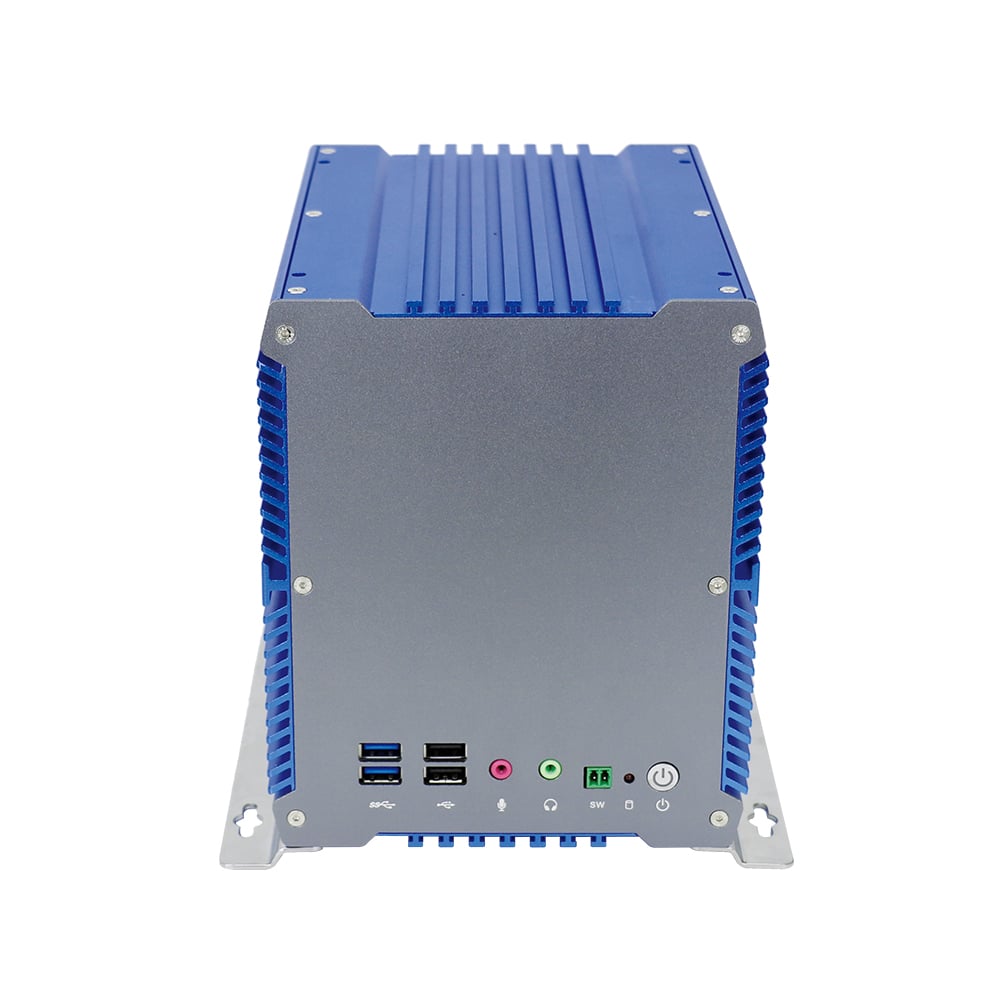

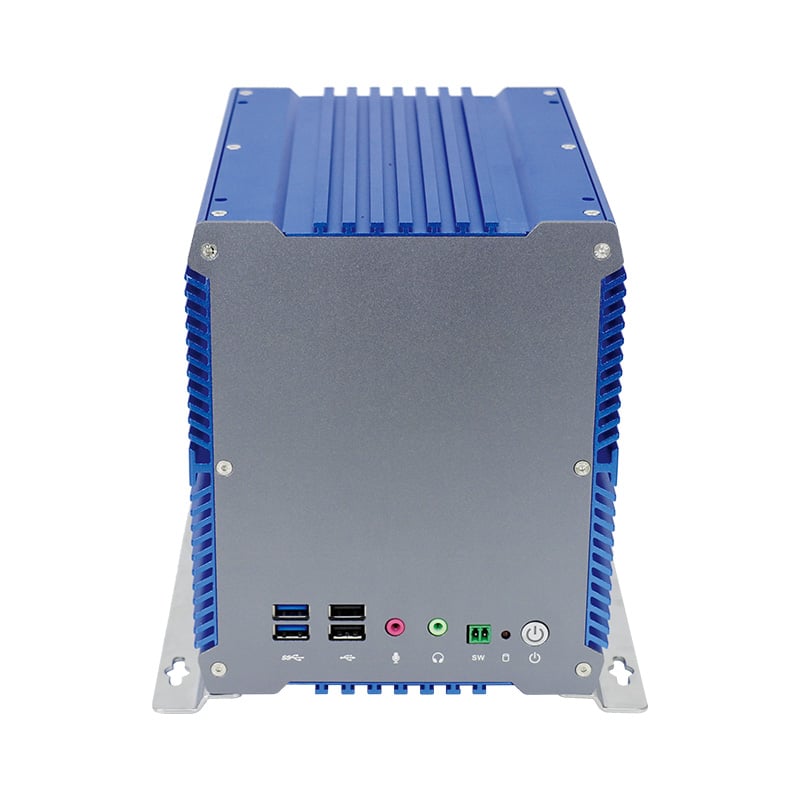

Front I/O	2USB3.0，2USB2.0，1HDD LED，1Power Switch，1MIC，1Speaker
Front I/O	1*Phoenix Connector（can expand out the switch signal）

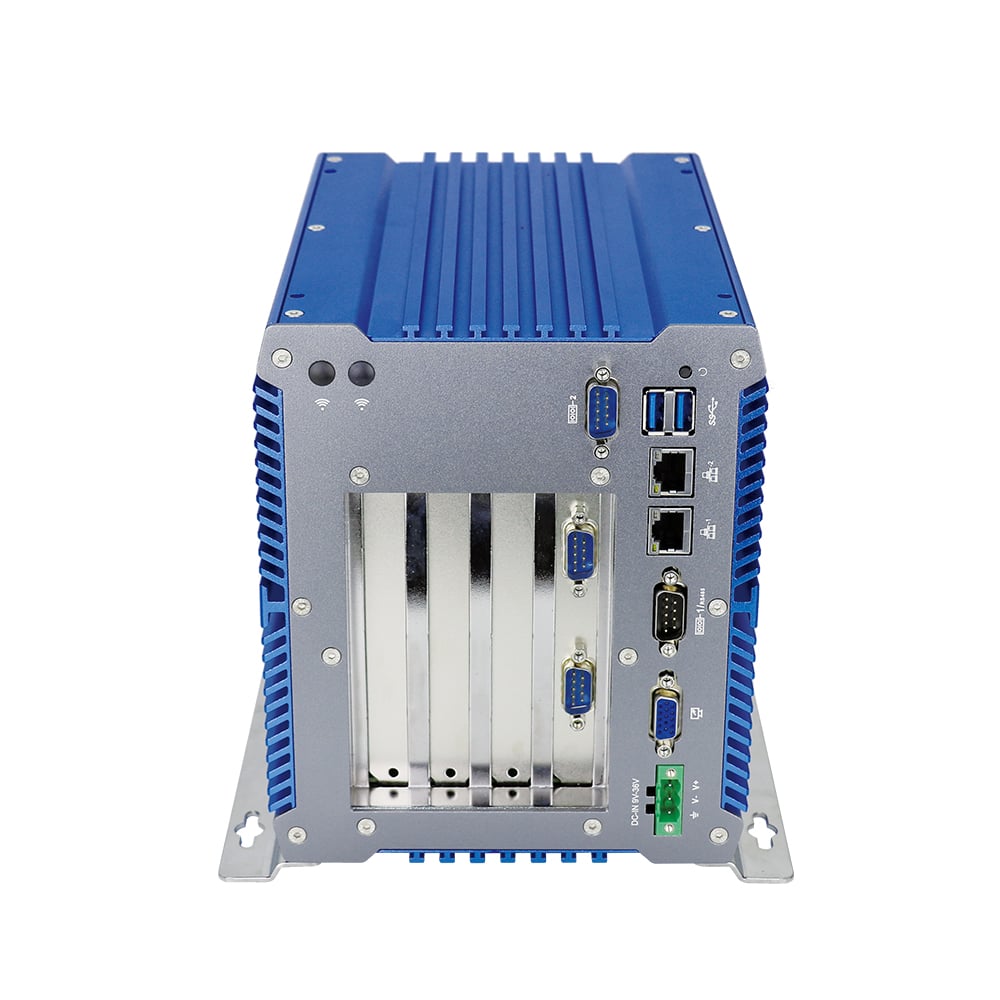

Rear I/O	2USB3.0，2Intel 1000M LAN，1VGA，13Pin Power Supply Phoenix Connector
Rear I/O	1Clean COMS button，Standard 4COM（6*COM Optional，COM1、COM2 RS232/422/485 Optional）
Expansion Port	Support 1*MINI PCIE Slot（WIFI/3G/4G Optional），Embedded SIM Slot
	Support 1*MINI PCIE Slot（Support MSATA）
	Optional Ports：GPIO、Audio、HDMI、2*COM (Standard version doesn’t include these ports)
Expansion Slot	1PCIE X4 + 3PCI（32bit）,Built-in 1*USB2.0，Max. Can support the length of expansion card：196 mm
Network	2*Intel i211-AT 10/100/1000M LAN
Storage	Support 1MSATA Slot，1*2.5” HDD
Input Voltage	DC 9～36V wide voltage Input，Support positive pole and negative electrode connect reversely protection
Other Function	Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function)
Work Temp	0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow
Work Humidity	5% ～ 95% non-condensing
Certificates	CE、 CCC、 FCC Class A、 ROHS
Dimension	215 * 185 * 157 mm【Not include the brackets】
Net Weight	4.0 kg【Not include the brackets】
Application	Industrial Automation, Medical, Logistics Transportation, Warehouse，Machine vision, etc.
