IBOX-1426 J3710 quad-core Fanless Industrial pc

IBOX-1426 J3710 quad-core Fanless Industrial pc

◆ Fanless & Rugged Design for 24/7 Industrial Duty;

◆ Intel Quad-Core J3710 Processor for Stable Performance;

◆ Extensive 6x COM Ports with RS232/RS485 Support;

◆ Compliant with CE, FCC, RoHS Global Certifications;

◆ Flexible 4G/WiFi Expansion & Dual-Storage Capability;

The IBOX-1426 is a robust, fanless industrial computer. Its core is powered by an energy-efficient Intel Pentium J3710 quad-core processor, which delivers stable performance while generating minimal heat, enabling a completely silent and maintenance-free passive cooling design. It is the perfect out-of-the-box solution for a multitude of industrial automation, digital signage, machine vision, and thin client projects.
Connectivity is a cornerstone of the IBOX-1426's design, featuring six RS232 COM ports with 2 RS485. The PC also boasts eight USB ports (including two high-speed USB 3.0) for peripherals, dual display outputs via VGA and HDMI, and flexible storage options with one mSATA slot and one 2.5-inch hard drive bay.
Certified with CE, CCC, FCC Class A, and RoHS, the IBOX-1426 meets stringent international quality, safety for global markets.

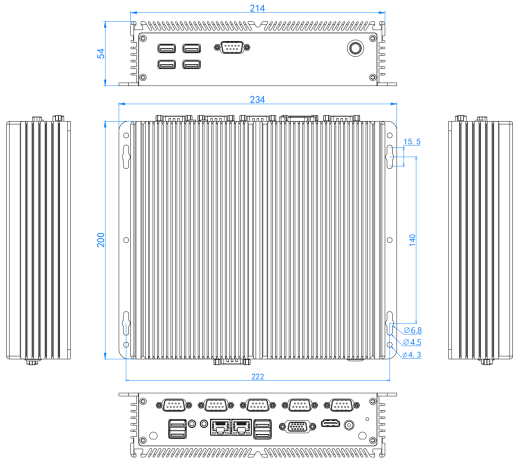

IBOX-1426 Drawing

Specification

Model	IBOX-1426
Color	Gray (color can be customized)
Material	High quality all aluminum alloy
Processor	Intel Pentium J3710 (4 cores 4 threads, base frequency 1.6 GHz, pulse frequency 2.64 GHz)
Memory	1*DDR3L 1600MHz SODIMM memory slot, Max 8 GB
BIOS	AMI UEFI BIOS
Chipset	Intel HD Graphics
Display Port	1 VGA, 1 HDMI
Front I/O	4USB2.0, 1RS232 COM, 1*Power switch
Rear I/O	1DC-IN, 1HDMI , 1VGA , 2USB3.0, 2*RJ45 network ports
Rear I/O	1MIC, 1SPK, 2USB2.0, 5RS232 COM (COM1-2 support RS232/485)
Expansion Slot	1*MSATA (supports MSATA hard disk)
	1*MINI PCIE (Support PCIE&USB2.0 ,Optional 4G/WIFI/Bluetooth) with SIM card holder
	Optional interface (not included in standard shipment): LPT
Network	2* 100/1000M RTL8111H Gigabit Ethernet
Storage	1MSATA , 12.5 inch HDD/SSD
Power Supply	DC 12V input
Other Function	Power on, timed on, network wake up, PXE boot, watchdog (0-255 level)
Work Temp	0℃ to +40℃ (commercial HDD), -20℃ to +50℃ (industrial SSD), surface air flow
Work Humidity	5% ~ 95% non-condensation state
Certificate	CE、 CCC、 FCC Class A、 RoHS
Dimension	234 * 200 * 54 mm
Weight	1.93kg
Application	Industrial automation, medical, logistics & transportation, warehousing, electronic education etc
