◆ Intel 6th Core i3 i5 i7 Embedded Computer;
◆ Onboard Intel Q170 chipset;
◆ 2 x DDR4 Ram Slot, Max 32GB;
◆ 1 x MSATA Slot, 2x 2.5” SATA HDD;
◆ 6 x COM（COM1,COM2 RS232/422/485）;
◆DC 9 - 36V wide voltage Input.
The IBOX-708C Embedded Computer with high-performance Intel desktop processors, Intel Core i3 6100T, i5 6500T and i7 6700T, the IBOX-708 delivers exceptional processing power to handle complex industrial tasks. Intel Q170 chipset enhances overall performance. With dual DDR4 RAM slots, the system can support up to 32GB of RAM,features 2x Intel i211-AT and 1x Intel i219-LM gigabit Ethernet ports,The Intel i219-LM VPro Ethernet port further supports remote manageability, which is essential for monitoring and maintaining systems in industrial environments.

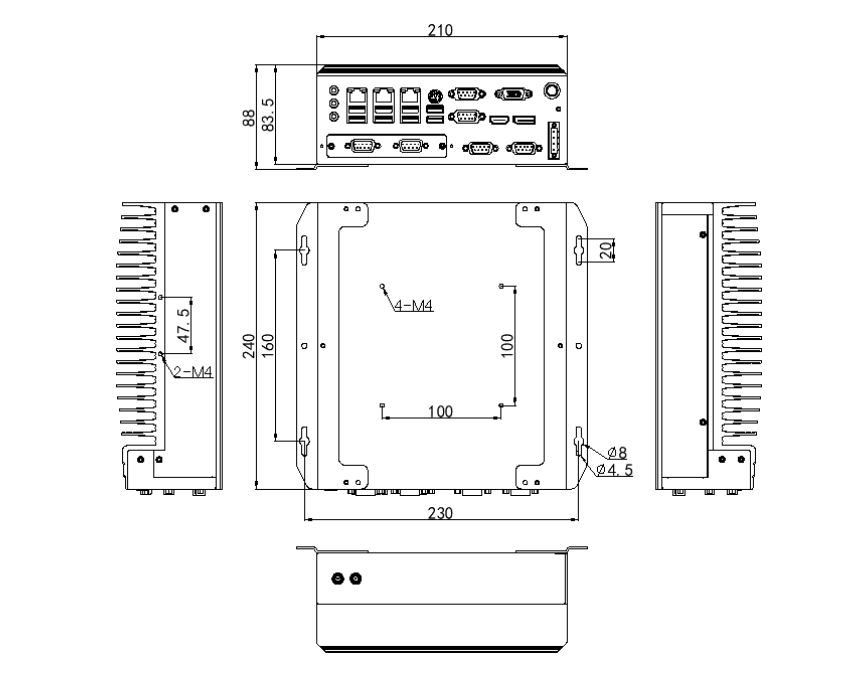

IBOX-708C Drawing
Specification
| Model |
IBOX-708C |
| Color |
Titanium gray (Color can be customized) |
| Material |
High quality aluminum alloy+ sheet metal structure |
| Processor |
Intel Core i3 6100T (Dual core four threads，3.2GHz) |
|
Intel Core i5 6500T (Quad core four threads，2.5GHz，Max turbo 3.1GHz) |
|
|
Intel Core i7 6700T (Quad core eight threads，2.8GHz，Max turbo 3.6GHz) |
|
| RAM |

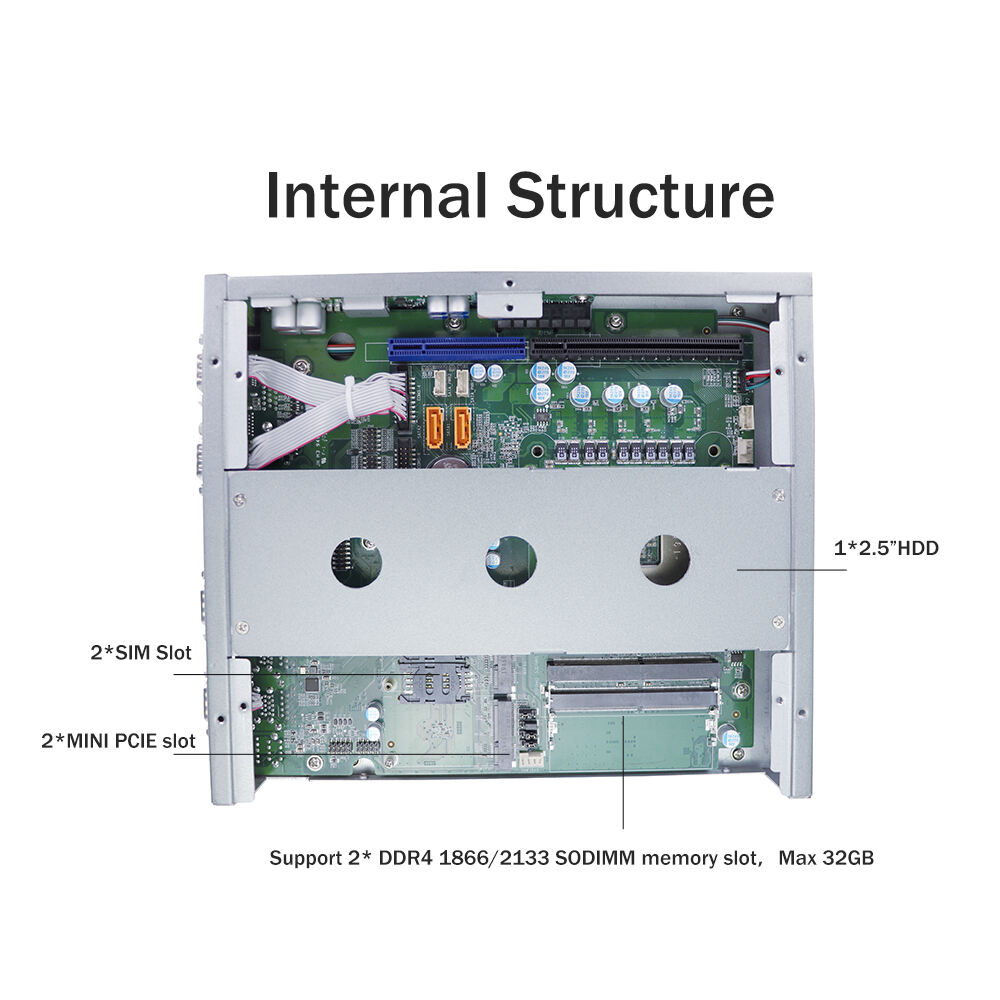

Support 2*DDR4 1866/2133 SODIMM RAM Slot，Max. Support 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip |
Integrated Intel HD Graphics 530 |
| Display Port |
1*VGA，1*HDMI，1*DP（Support synchronous and asynchronous three display） |
|
I/O Port
|
8*USB3.0，3*Intel 1000M LAN，1*Power Switch，1*MIC，2*Speaker， |
|
6*COM（COM1、COM2 RS232/422/485 Optional），1*DC power supply phoenix connector
|
|
|
1*VGA，1*HDMI，1*DP, 1*Keyboard or Mouse port
|
|
|
Expansion Port
|
Support 1*MINI PCIE Slot（WIFI/3G/4G Optional），Embedded SIM slot |
|
Support 1*MINI PCIE Slot（MSATA/3G/4G Optional），Embedded SIM slot
|
|
|
Optional Ports:16Bit GPIO、4*USB2.0（Standard version doesn’t include these ports）
|
|
|
Network
|
2*Intel i211-AT，1*Intel i219-LM 1000M LAN（Support Vpro Technology）
|
| Storage |
Support 1*MSATA slot，2*2.5” SATA HDD（Support RAID0/1） |
| Input Voltage |
DC 9～36V wide voltage Input, Support positive pole and negative electrode connect reversely protection |
| Other Function |
Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function) |
| Work Temp |
0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
| Work Humidity |
5% ～ 95% non-condensing |
| Certificates | CE,CCC,FCC Class A,ROHS |
|

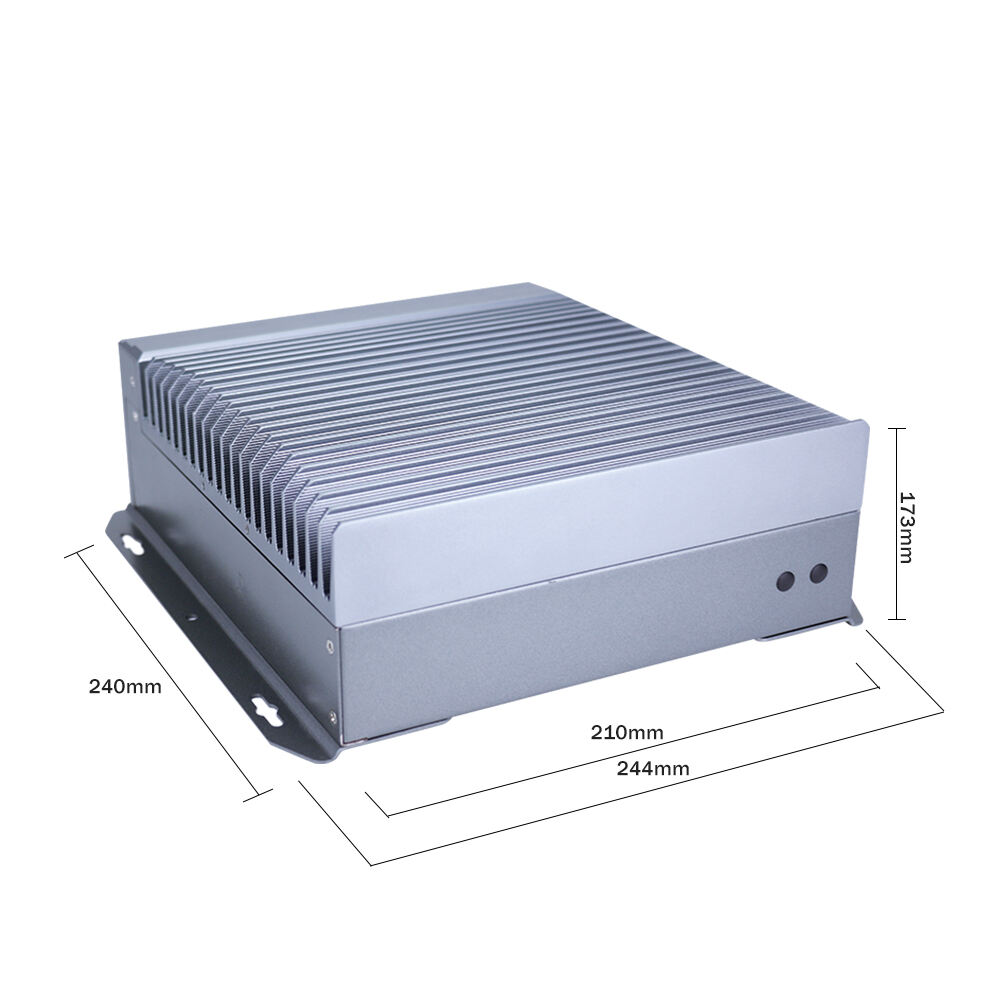

Size |
210 * 240 * 83.5mm【Not include bracket】 |
| Weight |
4kg【Not include bracket】 |
| Application |
Industrial Automation, Medical, Logistics Transportation, Warehouse, Machine Vision, etc. |
