◆ Intel Celeron J6412 Quad core processor;
◆ 3*Intel i226-V 2.5G Lans；
◆ 1*M.2 3052 B-key, Optional 5G module；
◆ Support 3*M.2 slots（support WIFI & 4G/5G）；
◆ Support 6*USB（3*USB3.1）；
◆ Support 4K triple display.
| Model | Nano N1121 |
| Color | Metal gray (any color is optional) |
| Material | High-quality all aluminum,surface hard anodized |
| Processor | Onboard Intel Celeron J6412（quad core four threads,2.0GHz,Max to 2.6GHz） |
| CPU Architecture | Elkhart Lake |
| Memory | Support 1*DDR4 3200MHz SODIMM, Max 32 GB |
| BIOS | AMI UEFI BIOS |
| Chipset | Intel(R) UHD Graphics |
| Display Port | 1*HDMI,2*DP（Support Synchronous/asynchronous triple display,Resolution Max 4096x2160 @ 60Hz） |

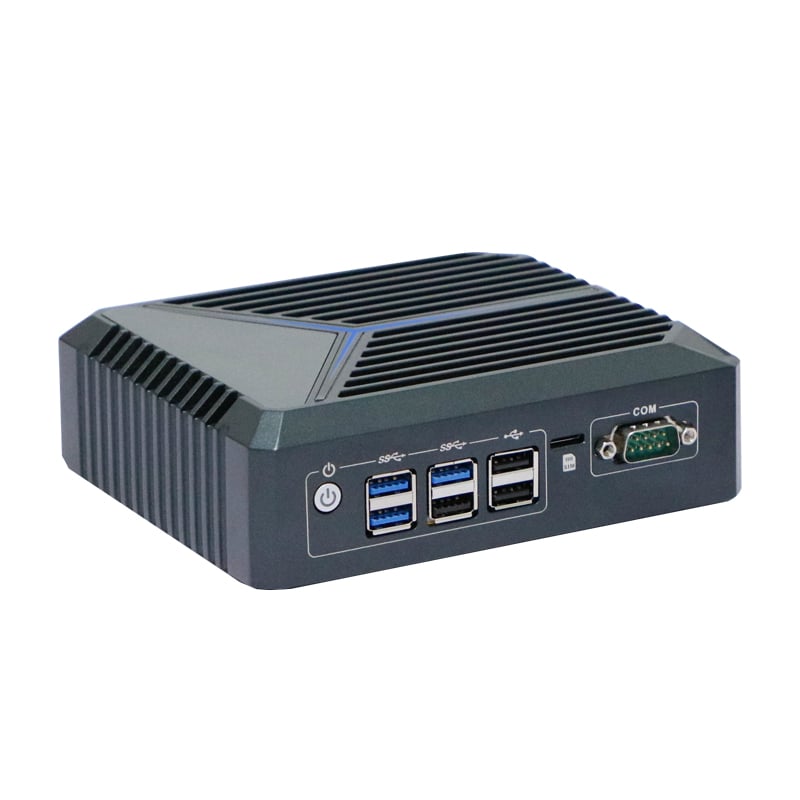

| Front I/O | 1*Power switch , 3*USB3.1 , 3*USB2.0 , 1*COM , 1*SIM card slot |

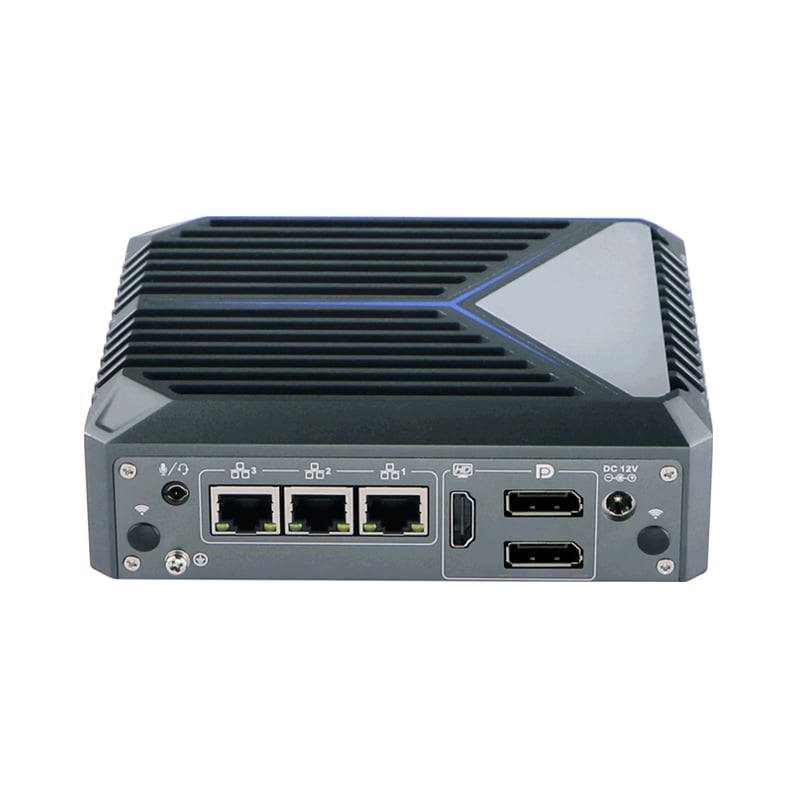

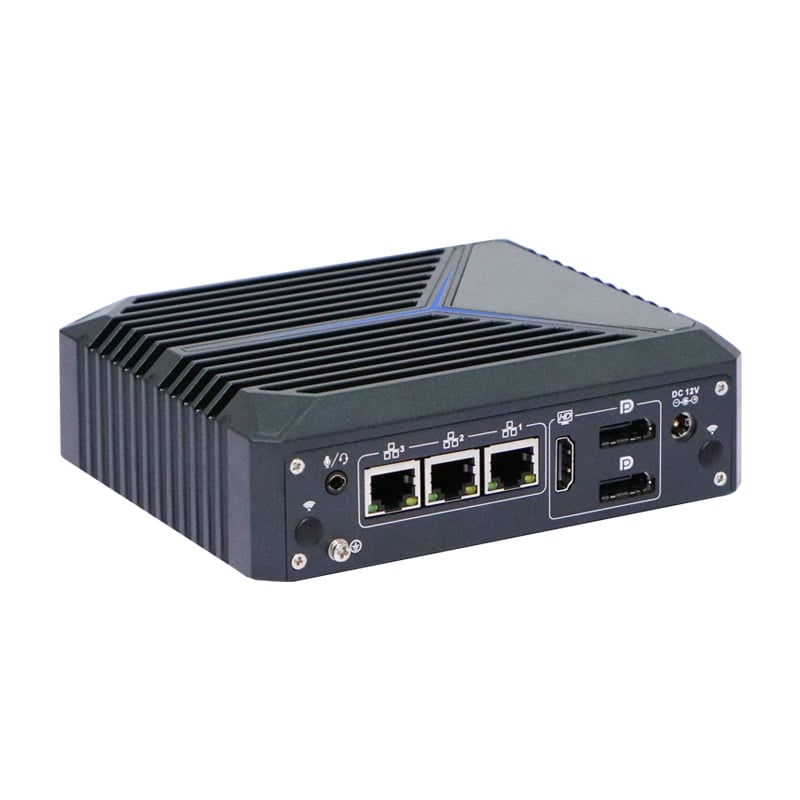

| Rear I/O | 1*DC , 2*DP , 1*HDMI , 3*2.5G Lans , 1*Audio ( Support Mic and Speaker at the same time) |
| Expansion Slot | Support 1*M.2 2280 M-key slot（ support SATA protocol） Support 1*M.2 3052 B-key slot（USB3.0 signal，support 4G/5G），1*SIM slot Support 1*M.2 2230 E-key slot（support WIFI, Bluetooth） |
| Network | 3*Intel i226-V 2.5G LAN |
| Storage | 1*M.2 2280 slot,1*2.5 inch HDD/SSD |
| Power Supply | DC 12V input |
| Other Function | Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot, watchdog (level 0-255), TPM2.0 security encryption |
| Work Temp | 0℃ ～ +40℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |

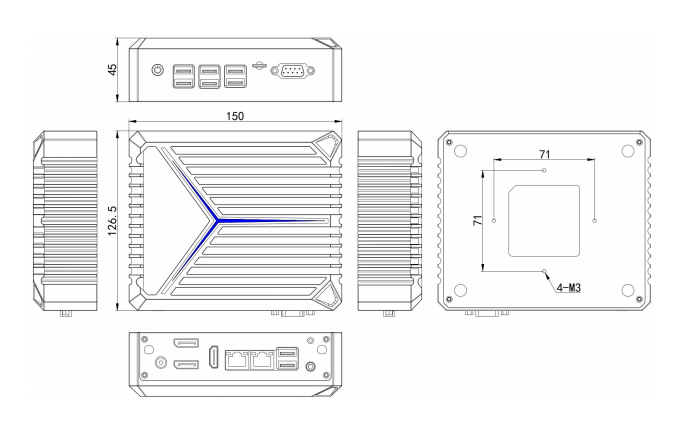

| Dimension | 150 * 126.5 * 45 mm |
| Weight | 0.84 kg |
| Application | Industrial automation, medical, logistics and transportation, warehousing, electronic education ETC |
