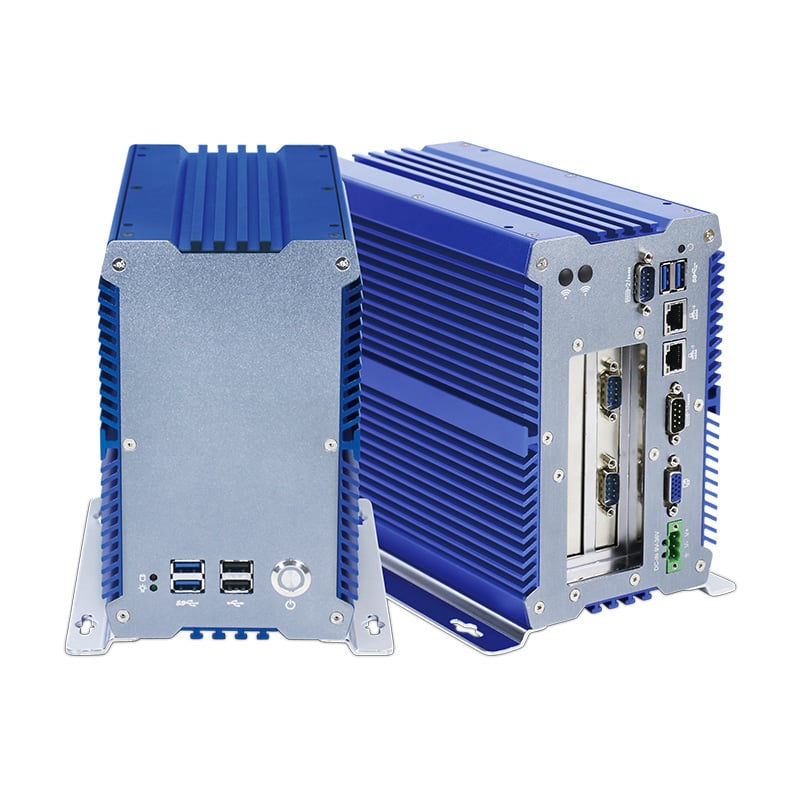

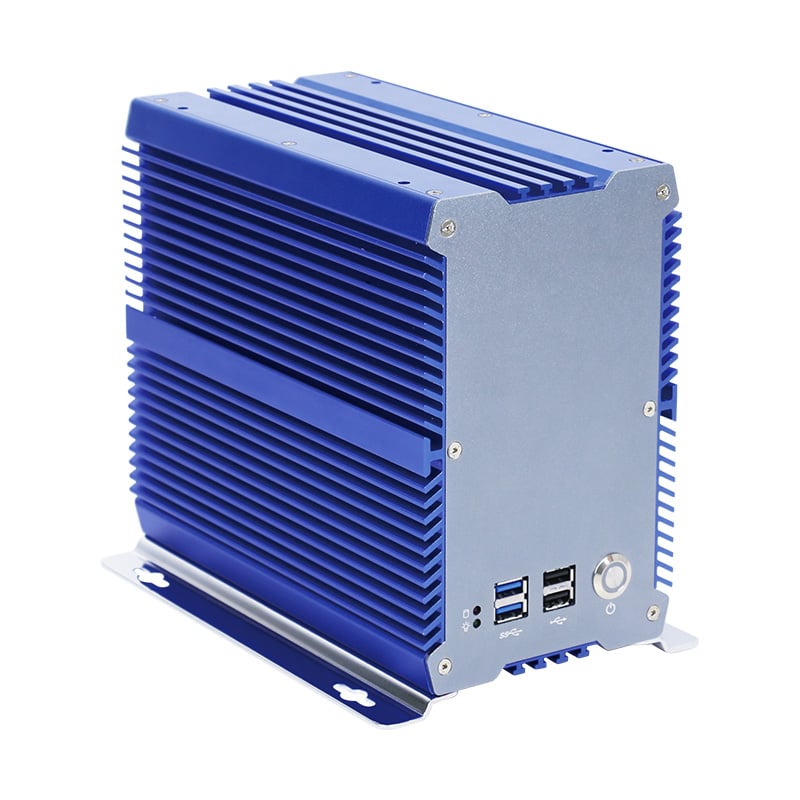

◆ 3965U,7th Gen Core i5 fanless industrial pc;
◆ Support 6*COM（2*RS232);
◆ Support DC 9-36V wide voltage Input;
◆ Expansion Slot: (Choose 1 from 3 as follow);
◆ 1xPCIE X4 + 1*PCI(32bit),Built-in 1xUSB2.0;
◆ 2xPCI（32bit），Built-in 1xUSB2.0;
◆ 1xPCIE X4 + 1xPCIE X1，Built-in 1xUSB2.0.
| Model | IBOX-701 Plus |
| Color | Blue + Grey（Color can be customized） |
| Material | High-quality all aluminum，surface anodic oxidation |
| Processor | Intel Celeron 3965U（Dual core dual threads，2MB third level cache，2.2 GHz） |
| Intel Core i5 7360U （Dual core quad threads，4MB third level cache，2.3GHz，Max turbo 3.6GHz） | |
| Intel Core i7 7500U（Dual core quad threads，4MB third level cache，2.7GHz，Max turbo 3.5GHz） | |
| RAM | Support 1*DDR4 1866/2133 SODIMM RAM Slot，Max. Support 16GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Integrated Intel HD Graphics 610/620 |
| Display Port | 1*VGA，1*HDMI Built-in Pin（Support synchronous and asynchronous dual display） |

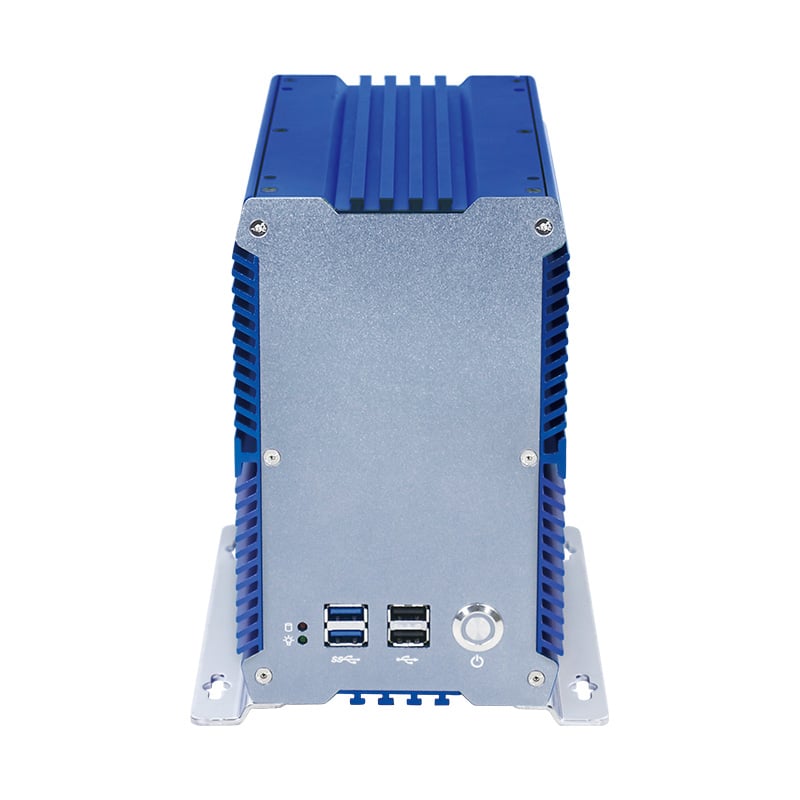

| Front I/O | 2*USB3.0，2*USB2.0，2*Indicator light，1*Power Switch |

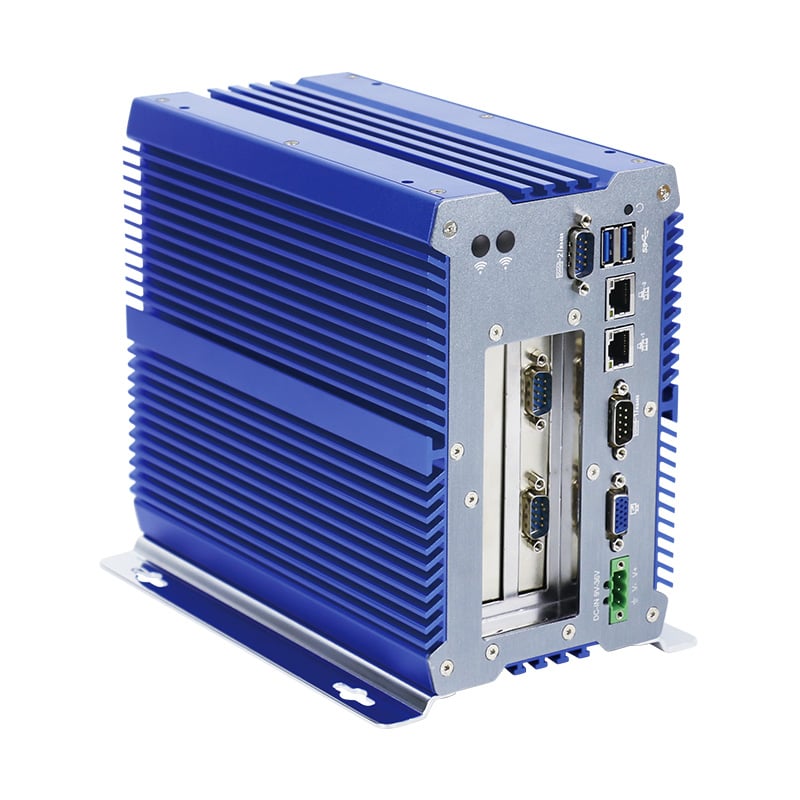

| Rear I/O | 2*USB3.0，2*Intel 1000M LAN，1*VGA，1*3Pin Power Phoenix Connector |
| 1*Clean COMS button，Standard 4*COM（6*COM Optional，COM1、COM2 RS232/422/485 Optional） | |
| Expansion Port | Support 1*MINI PCIE Slot（WIFI/3G/4G Optional），Embedded SIM Slot |
| Support 1*MINI PCIE Slot（Support MSATA） | |
| Optional Ports：GPIO、Audio、HDMI、2*COM (Standard version doesn’t include these ports) | |
|
Expansion Slot (Choose 1 from 3) |
1*PCIE X4 + 1*PCI（32bit），Built-in 1*USB2.0 |
| 2*PCI（32bit），Built-in 1*USB2.0 | |
| 1*PCIE X4 + 1*PCIE X1，Built-in 1*USB2.0 | |
| Network | 2*Intel i211-AT 10/100/1000M LAN |
| Storage | Support 1*MSATA Slot，1*2.5” HDD |
| Input Voltage | DC 9～36V wide voltage Input，support positive pole and negative electrode connect reversely protection |
| Other Function |
Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level） (Standard version doesn’t set these function) |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |

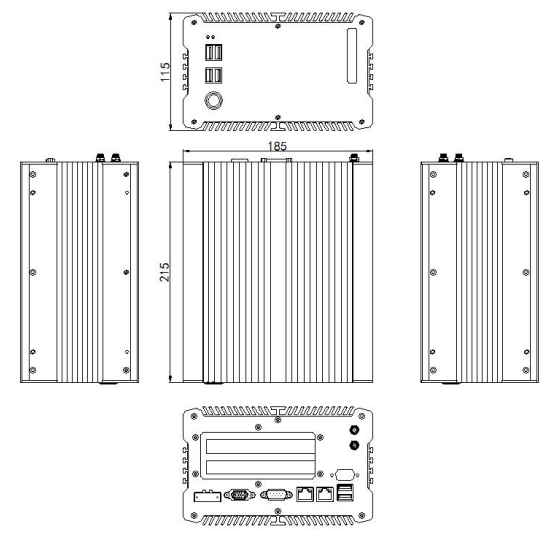

| Dimension | 215 * 185 * 115 mm【Not include the brackets】 |
| Net Weight | 3.6 kg【Not include the brackets】 |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse，Machine vision, etc. |
