◆ Fanless System；
◆ Support Intel Celeron J1900 quad core；
◆ Max:DDR3L 8G；
◆ Support 1*MSATA，1*2.5” SATA；
◆ Support 1*Mini PCIE；
◆Support 6*COM（COM1、COM2，RS232/485 Optional).

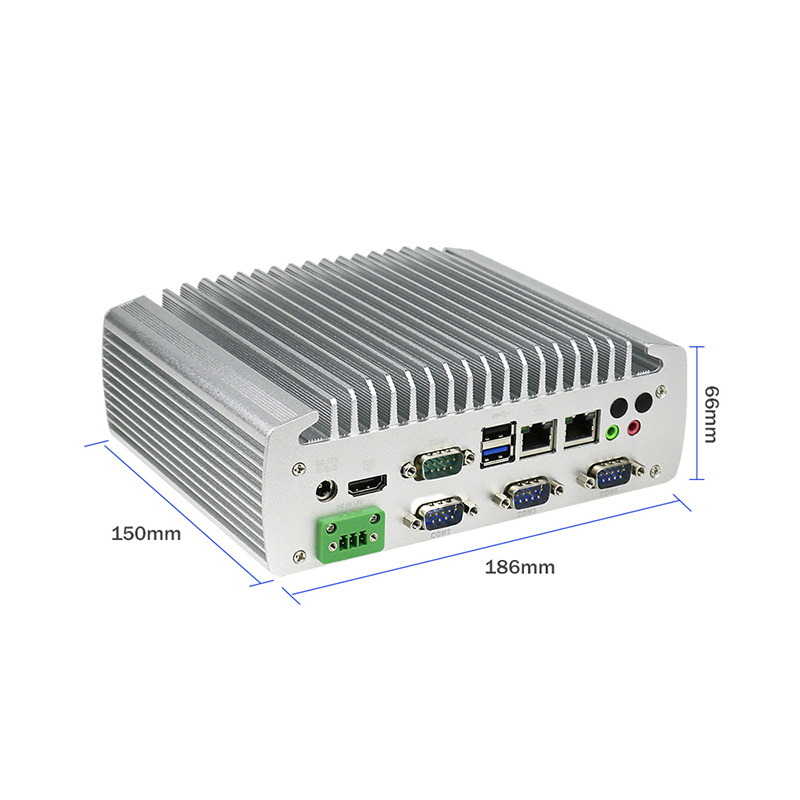

| Model | IBOX-101 Plus |
| Color | Silver（any color can be customized） |
| Material | Aluminum alloy + sheet metal structure |
| Processor | Onboard Intel Celeron J1900（Quad Core，1.99 GHz，TDP:10W） |
| RAM | Support 1*DDR3L 1333/1600MHz SODIMM，Max:8GB |
| BIOS | AMI UEFI BIOS |
| Display Chip | Integrated Intel HD Graphics |
| Display Port | 1*HDMI, 1*Internal LVDS socket (Support synchronous and asynchronous dual display) |

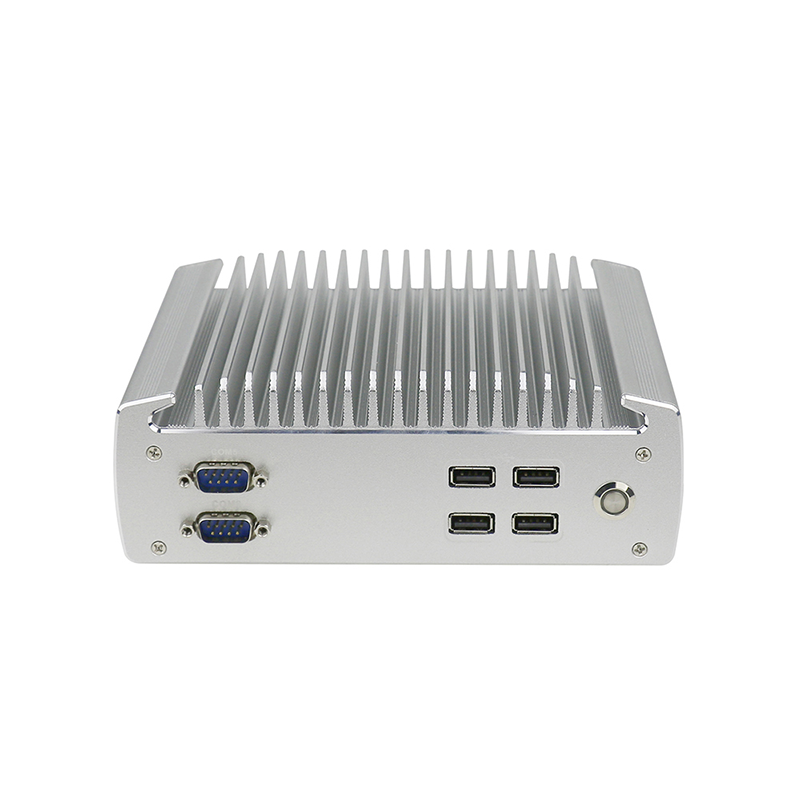

| Front I/O | 2*COM，1*Power Switch |
| Rear I/O | 1*USB3.0，1*USB2.0，4*COM（COM1, COM2, RS232/485 Optional）， |
| 2*Intel i211-AT 1000M LAN，1*HDMI，1*DC12V，1*Mic，1*Line Out | |
| Expansion Slot | Support 1*MINI PCIE（Support MSATA） |
| Support 1*MINI PCIE（WIFI/3G/4G Optional），Embedded Sim Slot | |
| LAN | 2*Intel i211-AT 1000M LAN |
| Storage | Support 1*MSATA，1*2.5” SATA3.0 |
| WDT | Support Reset（0～255 second） |
| Power Supply | Support DC 12V Input |
| Work Temp | 0℃ ～ +50℃（HDD），-10℃ ～ +60℃（SSD） |
| Work Humidity | 5% ～ 95% Non-condensing |

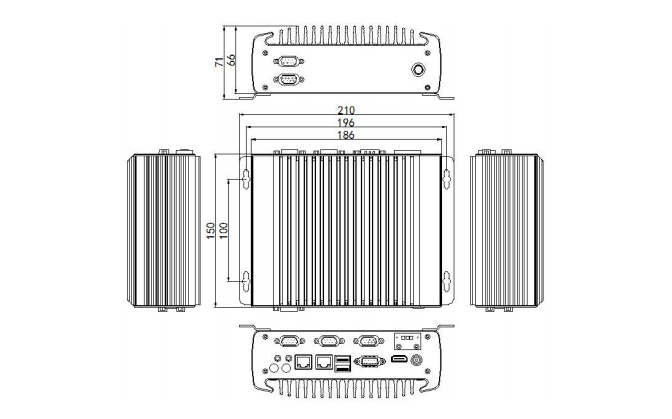

| Dimension | 186 * 150 * 66 mm【Not include wall bracket】 |
| Weight | 1.6 kg【Not include wall bracket】 |
