◆ Intel Alder Lake-N N100 Fanless Mini PC;
◆ Supports 2 x Intel 2.5G Ethernet;
◆ Max 1 x DDR4 3200 16GB Ram slot;
◆ 1 x M.2 2230 support WIFI & BT;
◆ 1 x M.2 2280 support SATA & PCIE3.0X1 NVME;
◆ Support Power-on, timed startup, network wake up, PXE , watchdog.
| Model | Nano-N1321 |
| Chassis color | Metal grey (Colors can be customized) |
| Material | High quality all aluminium alloy |
| Processor | Onboard Intel® Alder Lake-N N100 (Quad Core quad threads, Max turbo 3.4 GHz) |
| CPU structure | Alder Lake-N |
| Memory | Support 1*DDR4 3200MHz SODIMM memory slot, Max. 16 GB |
| BIOS | AMI UEFI BIOS |
| Display chip | Intel(R) UHD Graphics |
| Display port | 2*HDMI 4K display port (Support Synchronous/asynchronous dual display, resolution: 4096x2160 @60Hz) |

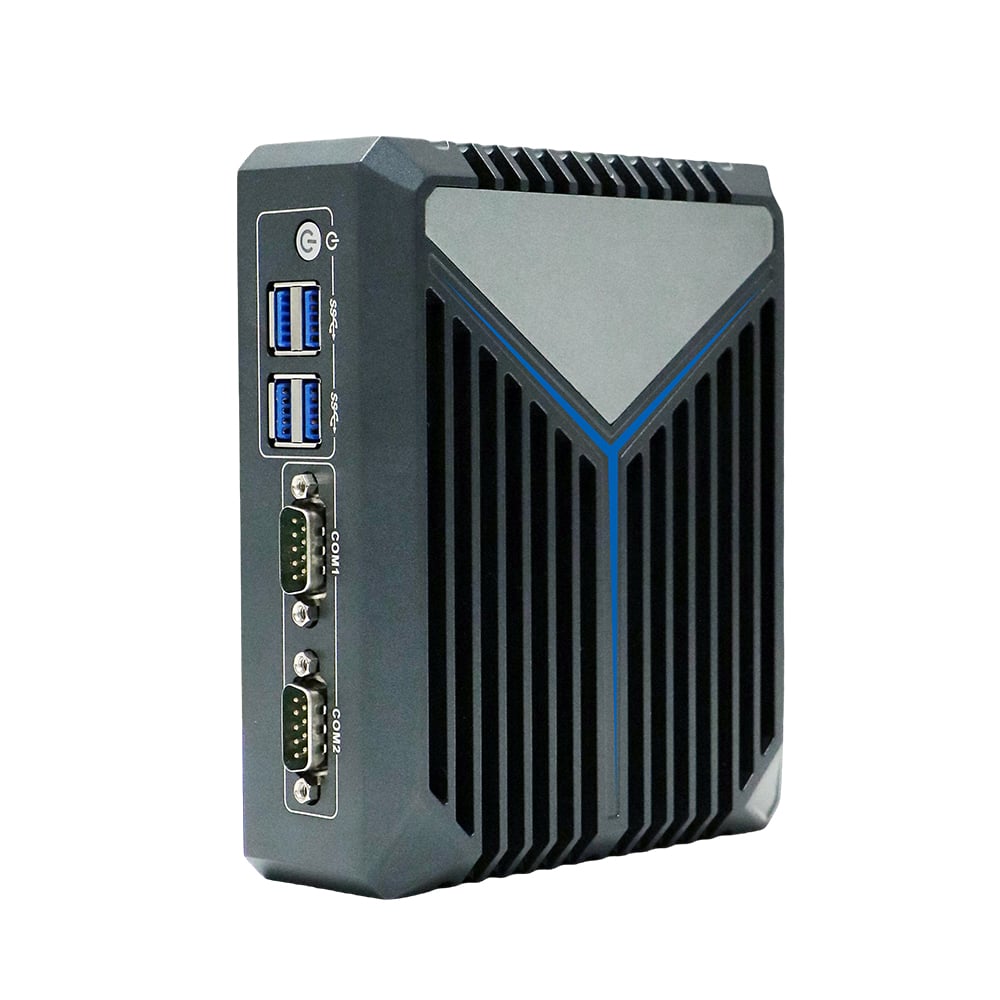

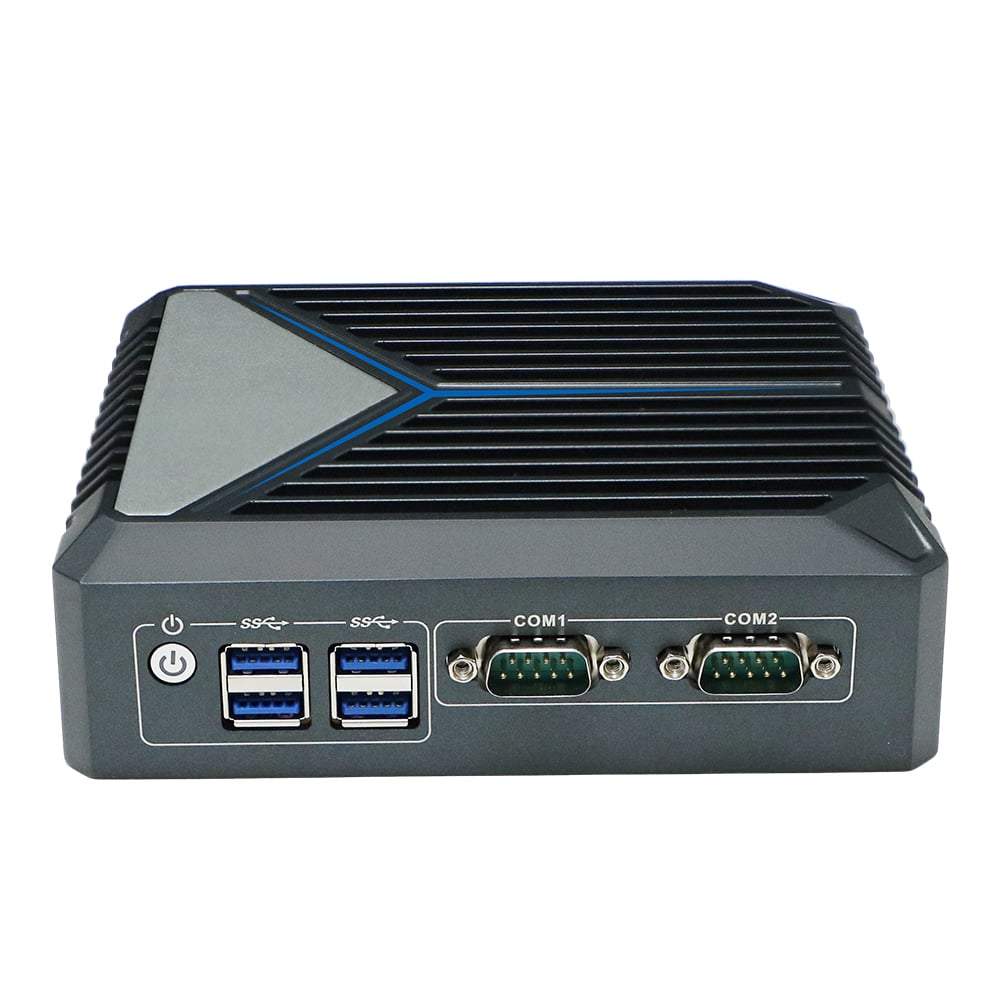

| Front I/O | 1*power button, 3*USB3.1, 1*USB 2.0, 2*COM (support RS232) |

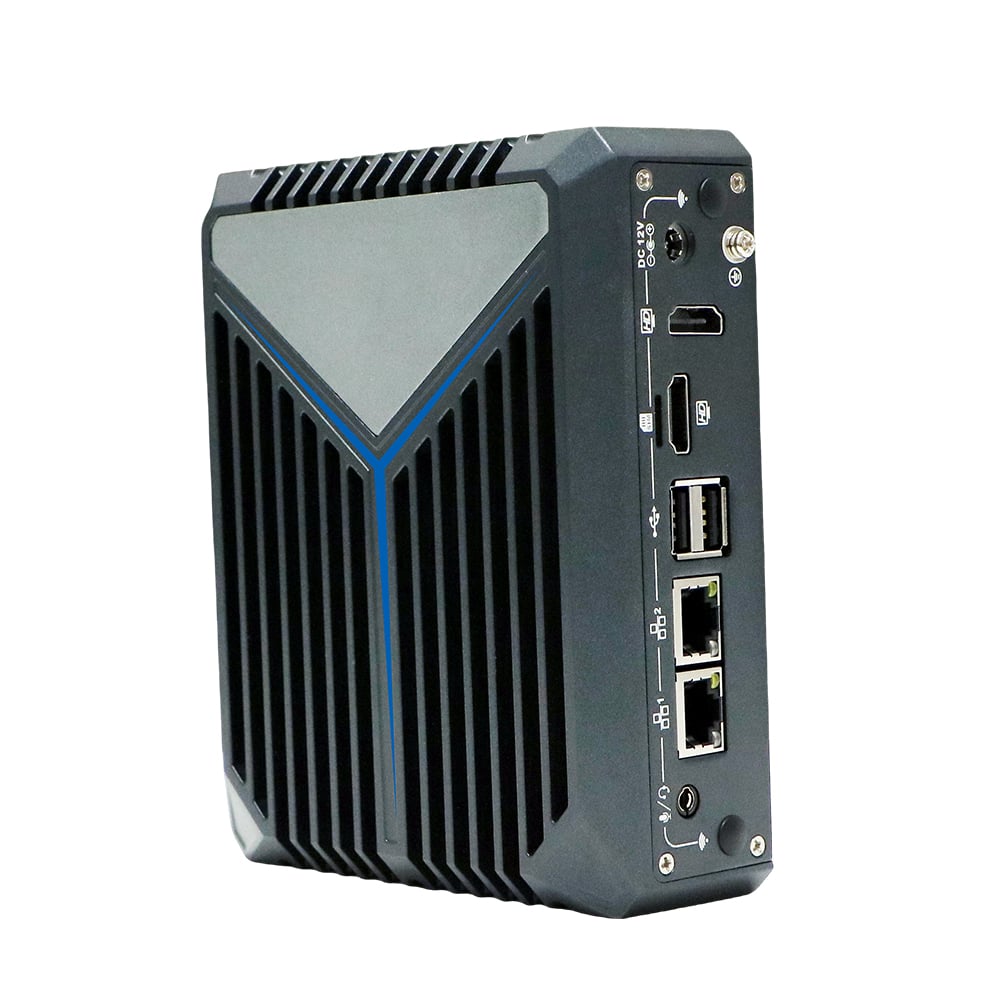

| Rear I/O | 1*DC, 2*HDMI, 2*USB2.0, 2*RJ45 Lans |
| 1*Mic&Audio, 1*SIM card slot | |
| Expansion | Support 1*M.2 2280 M-key slot (support SATA & PCIE3.0X1 NVME) |
| Support 1*M.2 2230 E-key slot (WIFI & BT) | |
| Support 1*MINI PCIE slot 【USB2.0 signal, optional: 3G/4G】, External SIM card slot | |
| Expandable interface (standard shipment doesn’t come with this interface): 8-way GPIO | |
| Network | 2*Intel i225/ i226-V 2.5G Lans |
| Storage | 1*M.2 2280 slot, Onboard 1*2.5 inch HDD/SSD |
| Input voltage | Support DC 12V input |
| Other function | Power-on, timed startup, network wake up, PXE startup, watchdog (level 0-255), TPM2.0 security encryption |
| Working Temp | 0℃ ~ +40℃ (business HDD) , -0℃ ~ +60℃ (industrial SSD) , Surface air flow |
| Working Humi | 0% ～ 95% Non-condensing |
| Certification | CE, CCC, FCC Class A, RoHS |

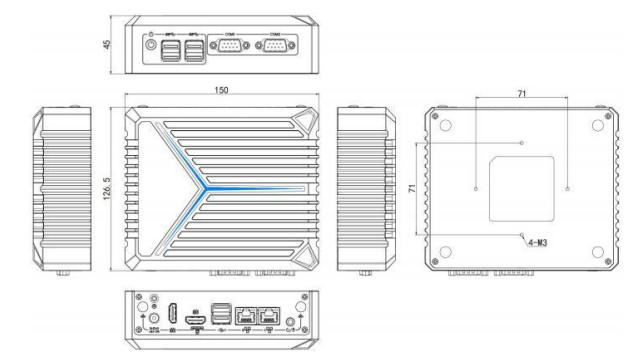

| Dimension | 150 * 126.5 * 45 mm |
| Weight | 0.84 kg |
| Application | Industrial control, Industrial automation, robotics, IoT, edge computing, machine vision, AGV/AMR, etc |
