◆ Intel Celeron J1900 Quad Core Processor；
◆ DDR3L 1600 4G RAM;
◆ Support 1*MSATA，1*2.5” HDD；
◆ Support 4*COM（2*COM RS232/485 Optional）；
◆ Installation ways: Desktop、Din Rail Mount、VESA、Wall Mount, etc.
| Model | N11 |
| Color | Titanium Gray + Blue(Color can be customized) |
| Material | High-quality all aluminum，Surface anodic oxidation |
| Processor | Onboard Intel Celeron J1900 (quad core, 4 threads, 2MB Cache, 1.99GHz) |
| Chipset | J1900（Single Chip) |
| RAM | Onboard DDR3L 1600 4G RAM（Onboard 2G/8G Optional） |
| BIOS | AMI UEFI BIOS |
| Display Chip | Integrated Intel HD Graphics |
| Display Port | 1*VGA，1*HDMI（Support synchronous and asynchronous dual display） |
| Front I/O | 1*Power Switch，4*USB2.0，2*COM |
| Rear I/O | 1*DC，1*VGA, 1*HDMI，1*USB3.0，2*LAN，1*SIM Slot |
| 1*Audio ( Support Mic and Speaker at the same time)，2*COM（RS232/485 Optional）， | |
| 1*10PIN Phoenix Terminal（4*Input 4*Output GPIO） | |
| Expansion Slot | Support 1*MINI PCIE（WIFI/Bluetooth/3G/4G Optional） |
| Support 1*MINI PCIE（Support MSATA；3G/4G/SIM Optional） | |
| Optional Function：TPM（TPM 1.2 / 2.0 Module Optional），1*USB2.0 | |
| Network | 2*Intel i211-AT 1000M LAN |
| Storage | 1*MSATA，Onboard 1*2.5” HDD |
| Input Voltage | DC 12V Input |
| Other Function | Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog （0～255 level） |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |

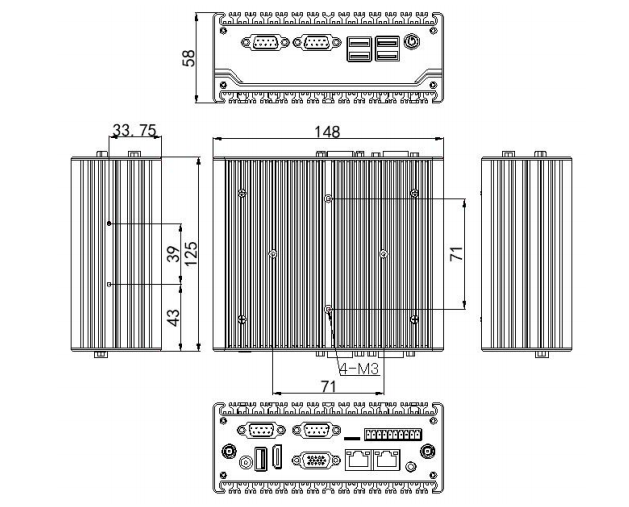

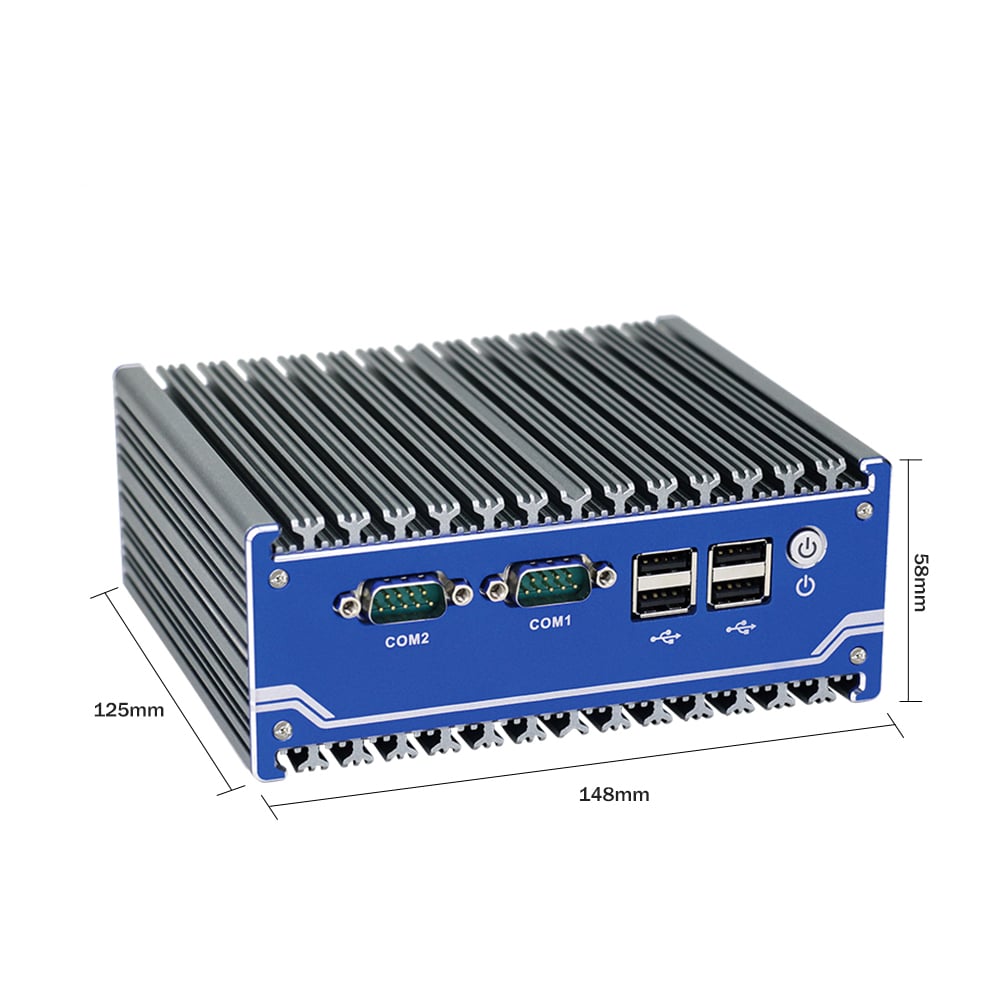

| Dimension | 148 * 125 * 58 mm |
| Net Weight | 1.0 kg |
| Application | Automation，Medical，Transportation，Warehouse，Electric Education etc. |
