◆ 6th Gen Core Fanless Industrial PC For Machine Vision;
◆ Onboard Intel Skylake-U Intel Core i3 i5 i7;
◆ Intel HD Graphics 510 / 520;
◆ Support 32 road Opto-couplers isolation GPIO Signal;
◆ Support 5 x LAN（Support 4 x 802.3af standard POE LAN）;
◆Support DC 9-36V wide voltage Input.

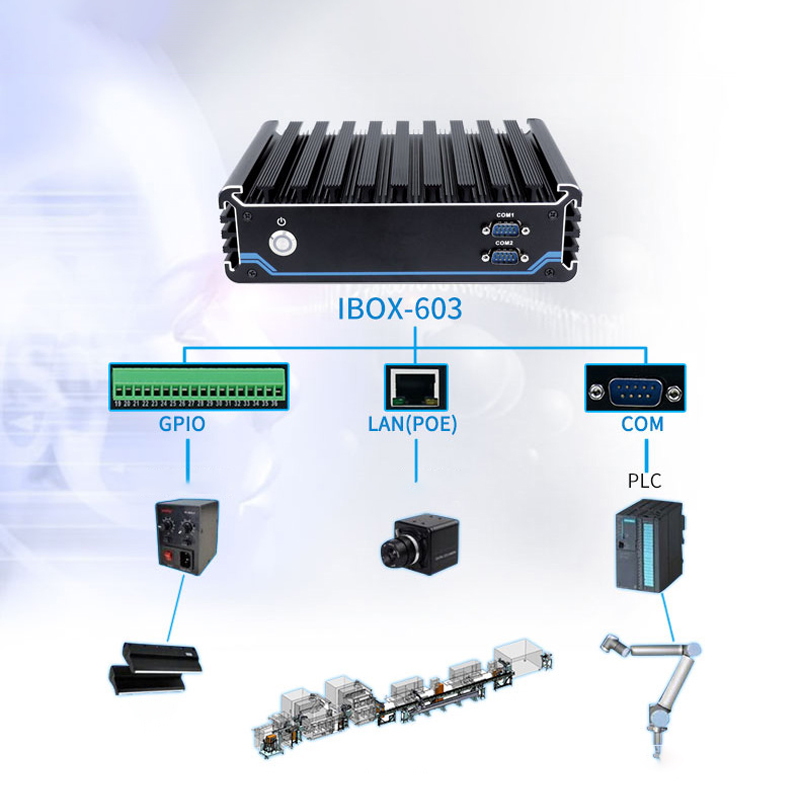

The IBOX-603 Industrial PC is design for machine vision and industrial automation applications. Featuring 32 opto-coupler isolated GPIO (General Purpose Input/Output) signals, enabling safe and reliable interfacing with machinery, sensors, and other control devices in factory automation environments. equipped with 5 Ethernet LAN ports, providing versatile connectivity for industrial networks. 4 of these LAN ports support the IEEE 802.3af standard Power over Ethernet (PoE), This feature is particularly valuable in applications such as machine vision, IP cameras, and other network-connected devices that require both power and data communication.

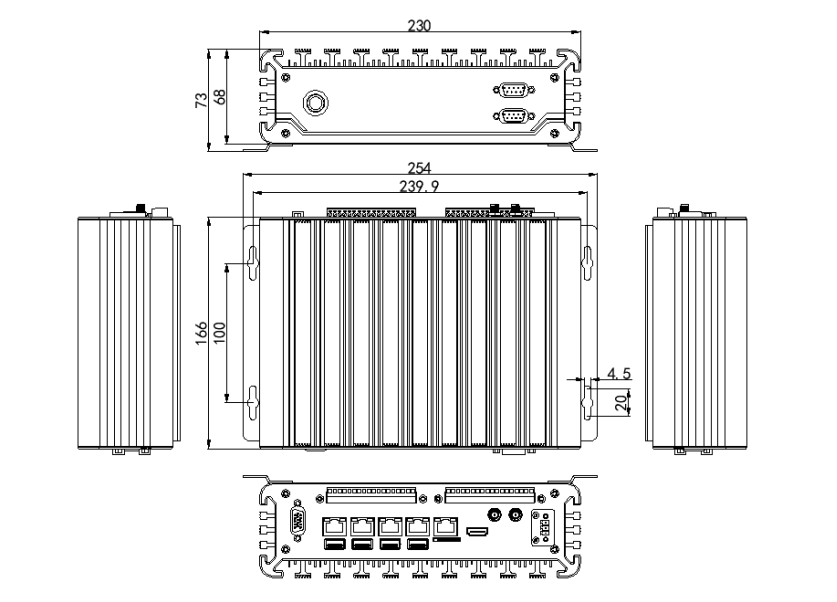

IBOX-603 Drawing
Specification
| Model |
IBOX-603 |
| Color |
Black（Color can be customized) |
| Material | High-quality all aluminum,Surface anodic oxidation |
|
Processor |
Onboard Intel Celeron 3855U（Dual core dual threading，1.6 GHz） |
|
Onboard Intel Core i3 6100U（Dual core quad threading，2.3 GHz） |
|
|
Onboard Intel Core i5 6200U（Dual core quad threading，2.3GHz，Max turbo 2.8GHz） |
|
|
Onboard Intel Core i7 6500U（Dual core quad threading，2.5GHz，Max turbo 3.1GHz） |
|
| CPU Architecture |
Skylake-U
|
| RAM |
Support 1*DDR4 1866/2133 SODIMM RAM Slot，Max. Support 16GB |
| BIOS | AMI EFI BIOS |
| Display Chip |
Integrated Intel HD Graphics 510 / 520 |
| Display Port |
1*VGA，1*HDMI |

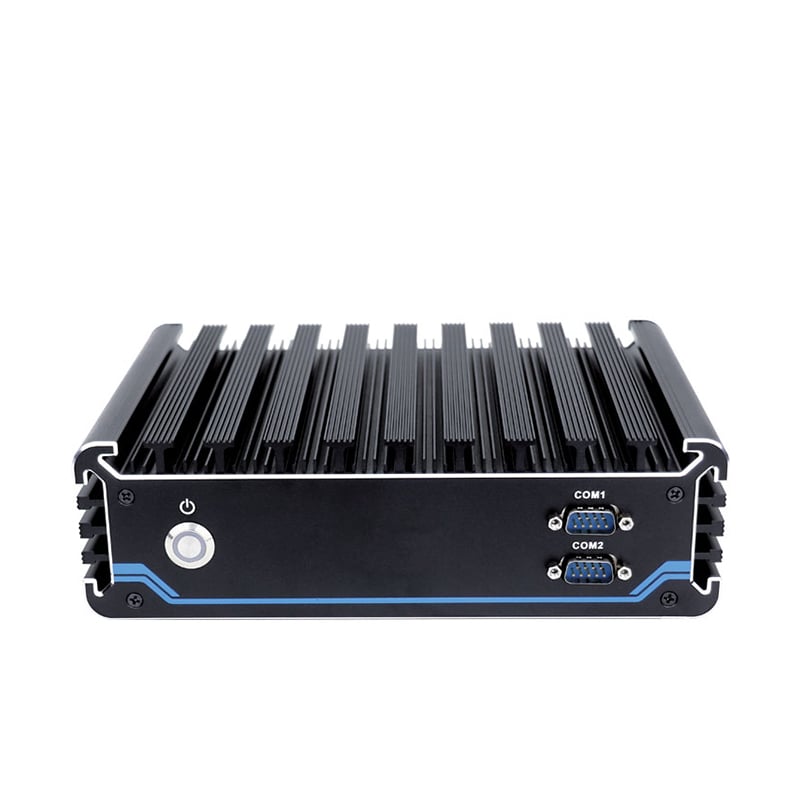

| Front I/O |
2*COM，1*Power Switch |
|
Rear I/O |
4*USB3.0，1*VGA，1*HDMI，1*3 PIN Power Supply Phoenix Connector (Support 9～36V wide voltage Input） |
|
5*Intel 1000M LAN，2*18 PIN Phoenix Connector GPIO（Support Opto-couplers isolation）
|
|
|
Expansion Slot |
Support 1*MINI PCIE Slot（WIFI/3G/4G Optional），Embedded SIM Slot |
|
Support 1*MINI PCIE Slot（Support MSATA） |
|
|
Network
|
5*Intel i211-AT 1000M LAN（Support 4*802.3af standard POE LAN）
|
| Storage |
1*MSATA Slot，1*2.5” HDD |
|
Power Supply |
Support DC 9～36V wide voltage Input |
| Other Function |
Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function) |
| Work Temp |
0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
| Work Humidity |
5% ～ 95% non-condensing |
| Certificates | CE,CCC,FCC Class A,ROHS |

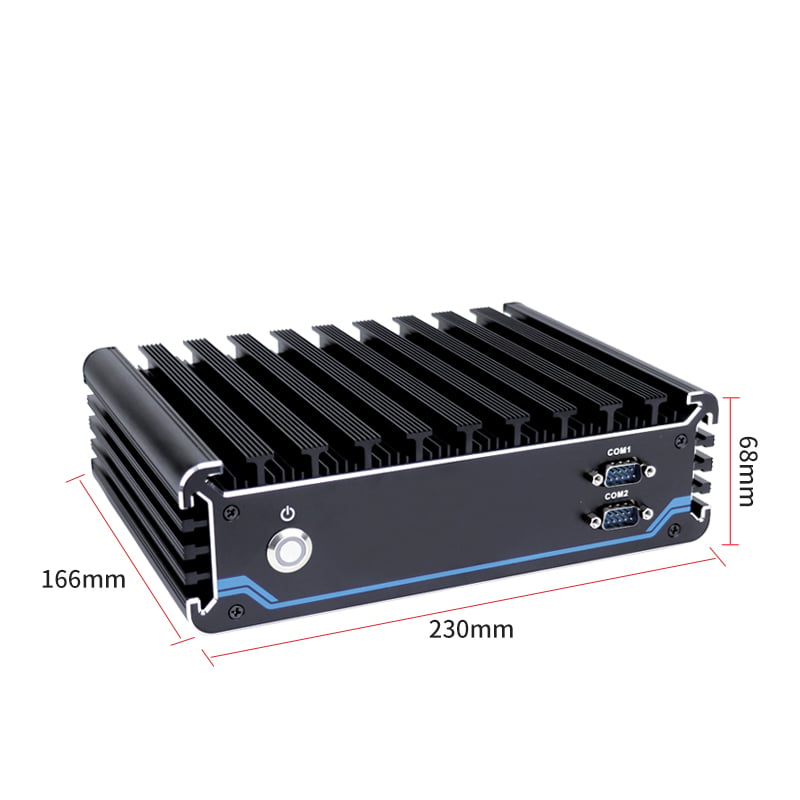

| Dimension |
230*166*68mm【Not include bracket】 |
| Net Weight |
2.3 kg【Not include bracket】 |
| Application |
Industrial automation，Machine vision，Transportation industry，Power monitoring，etc. |
