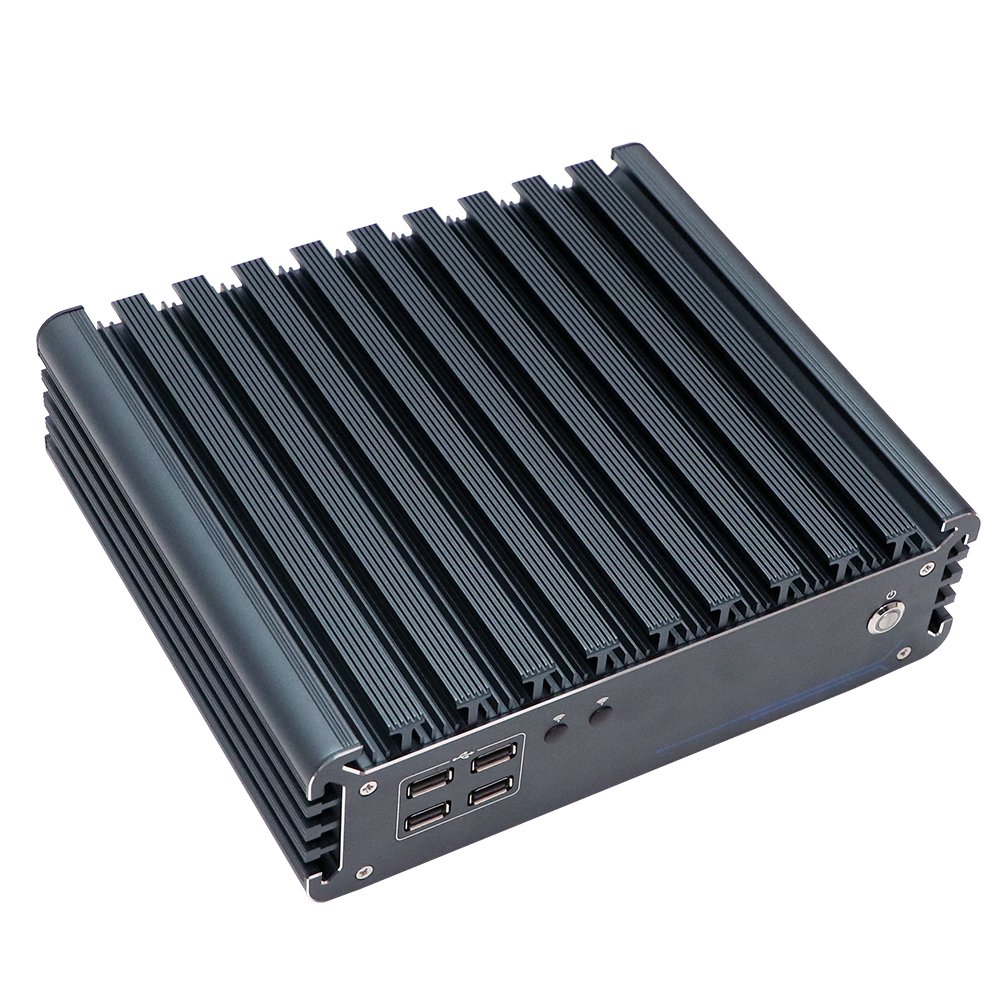

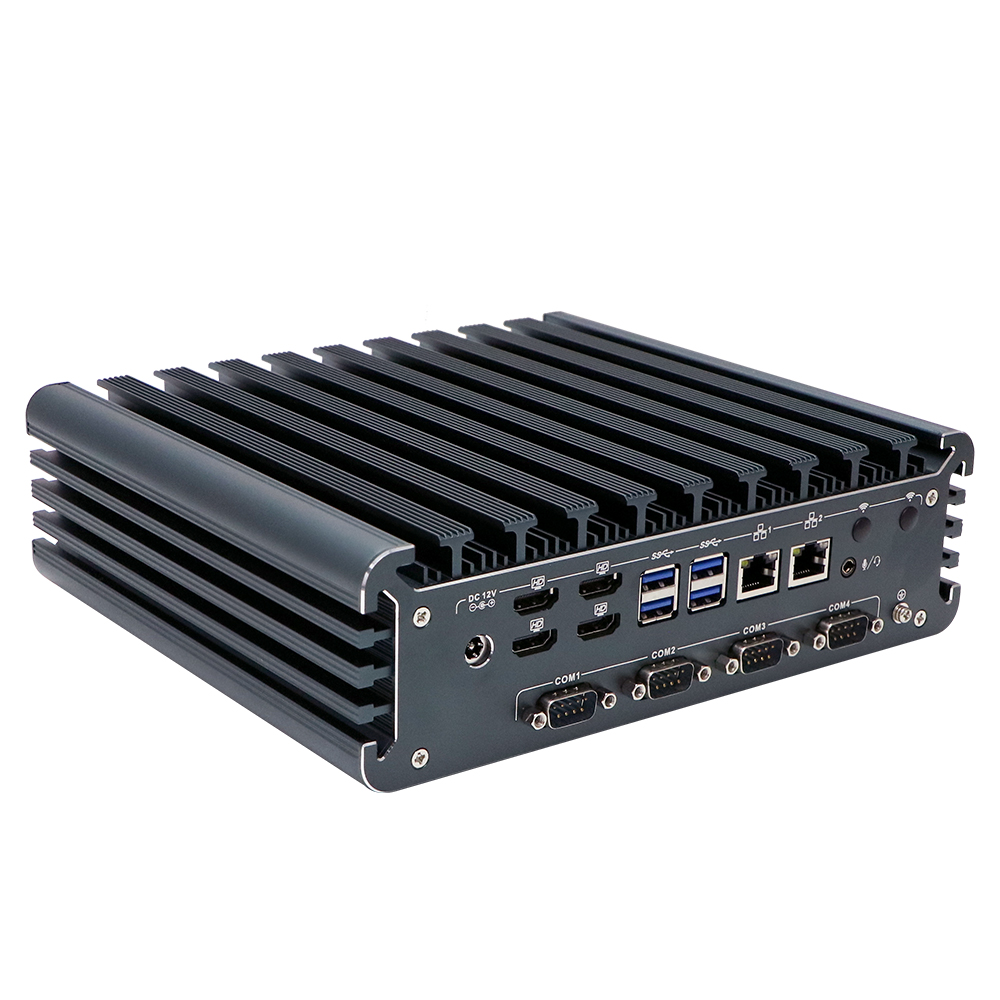

IBOX-3226 Industrial Computer Systems

◆ Intel Alder Lake 12th gen Industrial Computer Systems;

◆ Supports 2 DDR4 3200 SODIMM memory slots, Max. 64GB;

◆ Supports 3 M.2 slot,2 2.5-inch HDD;

◆ Support 4 COM (COM1,2 RS232/RS485 );

◆ Support 4 HDMI HD display Port.

The IBOX-3226 Industrial Computer Systems is equipped with a 12th generation Intel® Core i3, i5, or i7 processor, supporting up to 12 threads. This provides improved response speed for modern multitasking and seamless collaboration with the operating system, enhancing overall performance. The Embedded Box PC supports dual-channel DDR4 3200 MT/s memory, offering faster frequencies, higher bandwidth, and improved throughput.

It is compatible with Windows 10, Windows 11, Ubuntu, and CentOS operating systems. The IBOX-3226 Industrial Computer Systems also features four HDMI interfaces, supporting a resolution of up to 4096x2304@60Hz. You can immerse yourself in up to four 4 displays simultaneously, each displaying at 60Hz, and enjoy 8K 60 HDR videos with billions of colors. This provides stronger system-wide performance and efficient support for enhanced media encoding and decoding.

The IBOX-3226 Industrial Computer Systems dimensions are 230 * 200 * 68 mm, and it weighs 2.64 kg. It supports both desktop and wall-mounted configurations. The IBOX-3226 Industrial Computer Systems is suitable for industrial control, industrial automation, logistics and warehousing, smart transportation, and medical self-service applications.

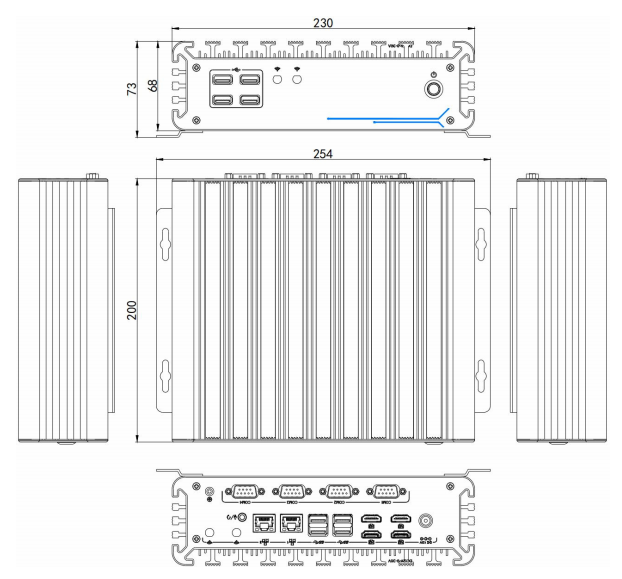

IBOX-3226 Drawing

Specification

Model	IBOX-3226
Color	Dark gray (color can be customized)
Chassis	High quality aluminum alloy
Processor	Intel Core i3-1215U (Six Core 8 Threads, Turbo 4.4 GHz)
	Intel Core i5-1235U （Ten Core 12 Threads, Turbo4.4 GHz)
	Intel Core i7-1255U (Ten Core 12 Threads, Turbo 4.7 GHz)
Memory	Supports 2 DDR4 3200 SODIMM memory slots, MAX. 64GB
BIOS	AMI EFI BIOS
Display chip	Intel Iris Xe graphics
Display port	4 HDMI Display port (supports synchronous/asynchronous multi-display,Max resolution 4096x2304@60Hz)

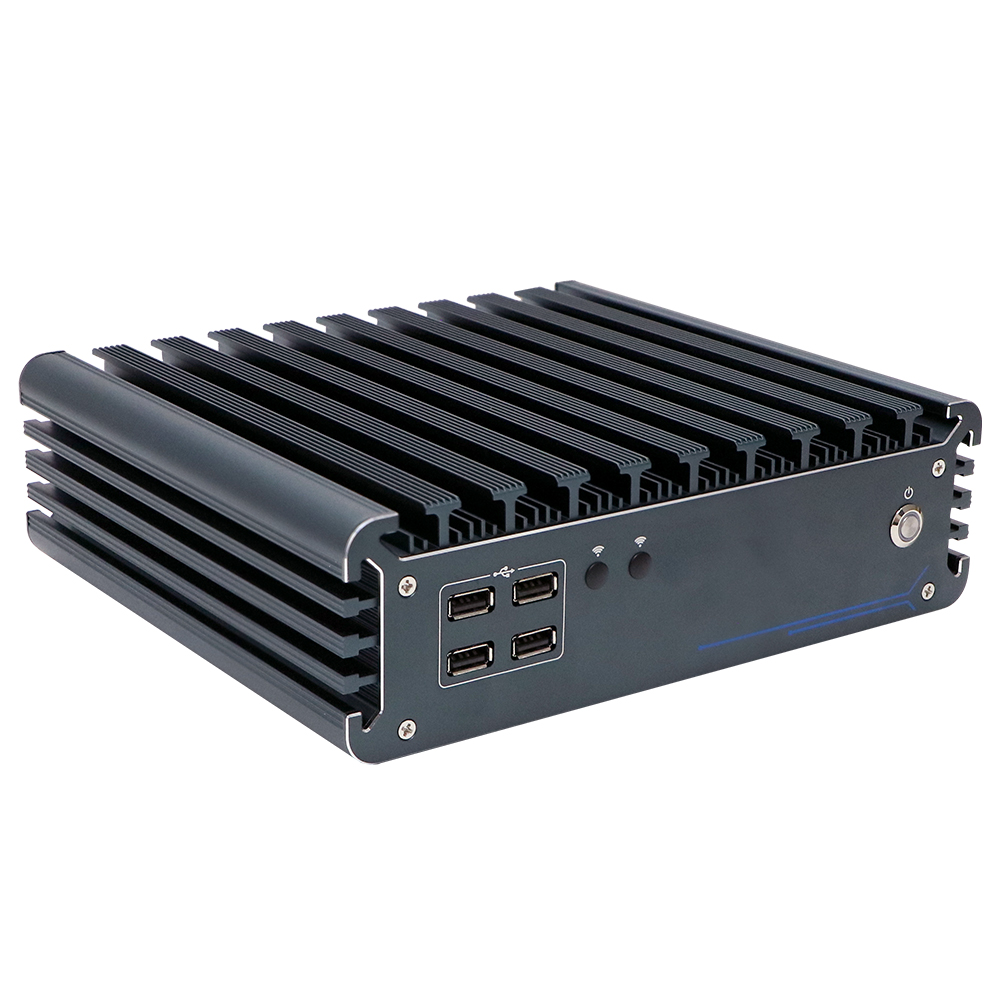

Front I/O	4 USB2.0, 1 Power Switch

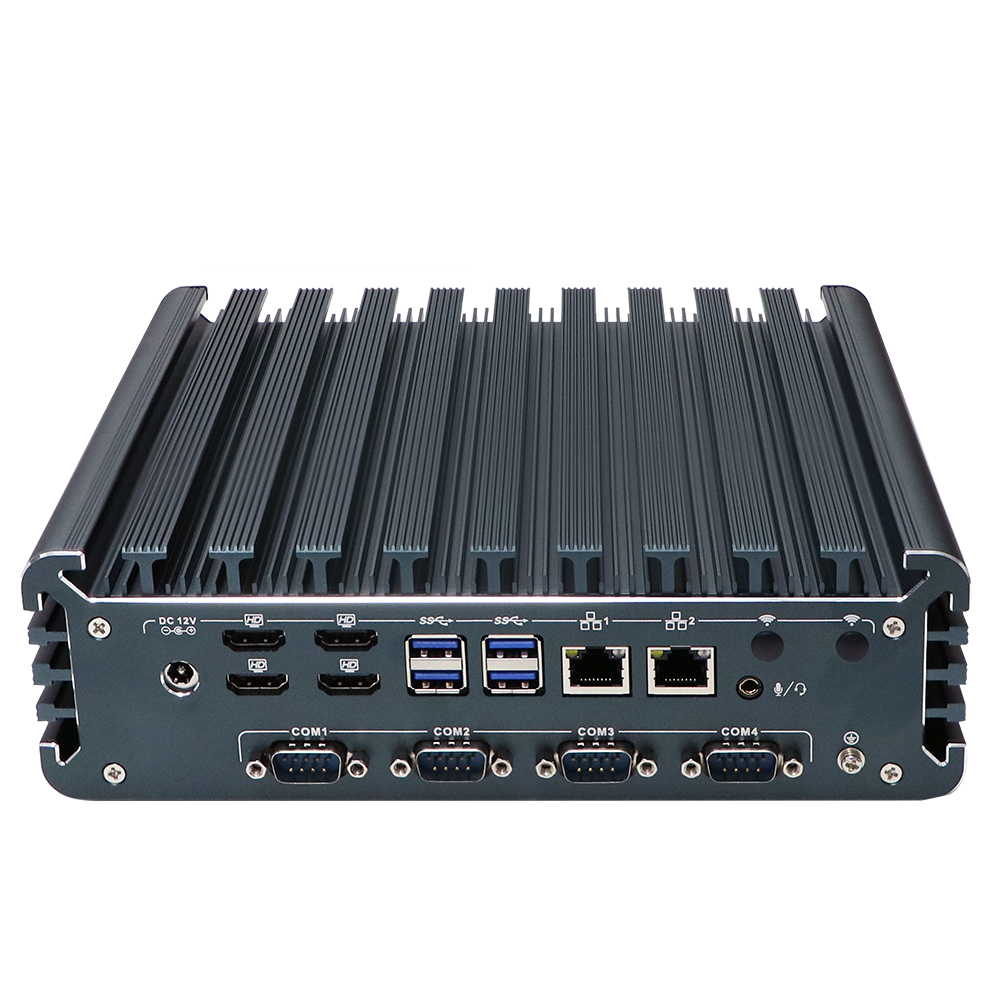

Back I/O	1 DC , 4 HDMI , 3 USB3.0, 1 USB2.0, 2*Intel LAN
Back I/O	1 2-in-1 Audio , 4 COM ( COM1,2RS232/RS485 optional)
Expansion slot	Support 1 M.2 M-Key 2280 slot (support NVME)
	Support 1 M.2 E-Key 2230 slot (support WIFI/Bluetooth)
	Support 1 M.2 B-Key 3042/3052 slot (supports 4G/5G), with SIM card
	Expansion slot（The standard is without it）: 2 COM/1 Lan Port (please consult the pre-salesengineer for details on expanding multiple interfaces)
Network	2 RTL8111H 10M/100M/1000M LAN
Storage	Supports 1 M.2 2280 slot (supports NVME protocol), 2 2.5-inch HDD
Input voltage	DC 12V input
Other functions	Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot,Watchdog（0～255 level）
Work Temp	0℃ ～ +50℃（business HDD），-20℃ ～ +60℃（industrial SSD），Air flow surface
Work Humidity	5% ～ 95% Non-condensing state
Certification	CE、 CCC、 FCC Class A、 RoHS
Dimension	230 * 200 * 68 mm
Weight	2.64kg【without wall mount】
Installation method	Wall-mounted,Desktop
Application	Industrial automation，medical，logistics transportation，warehouse，E-education.etc
